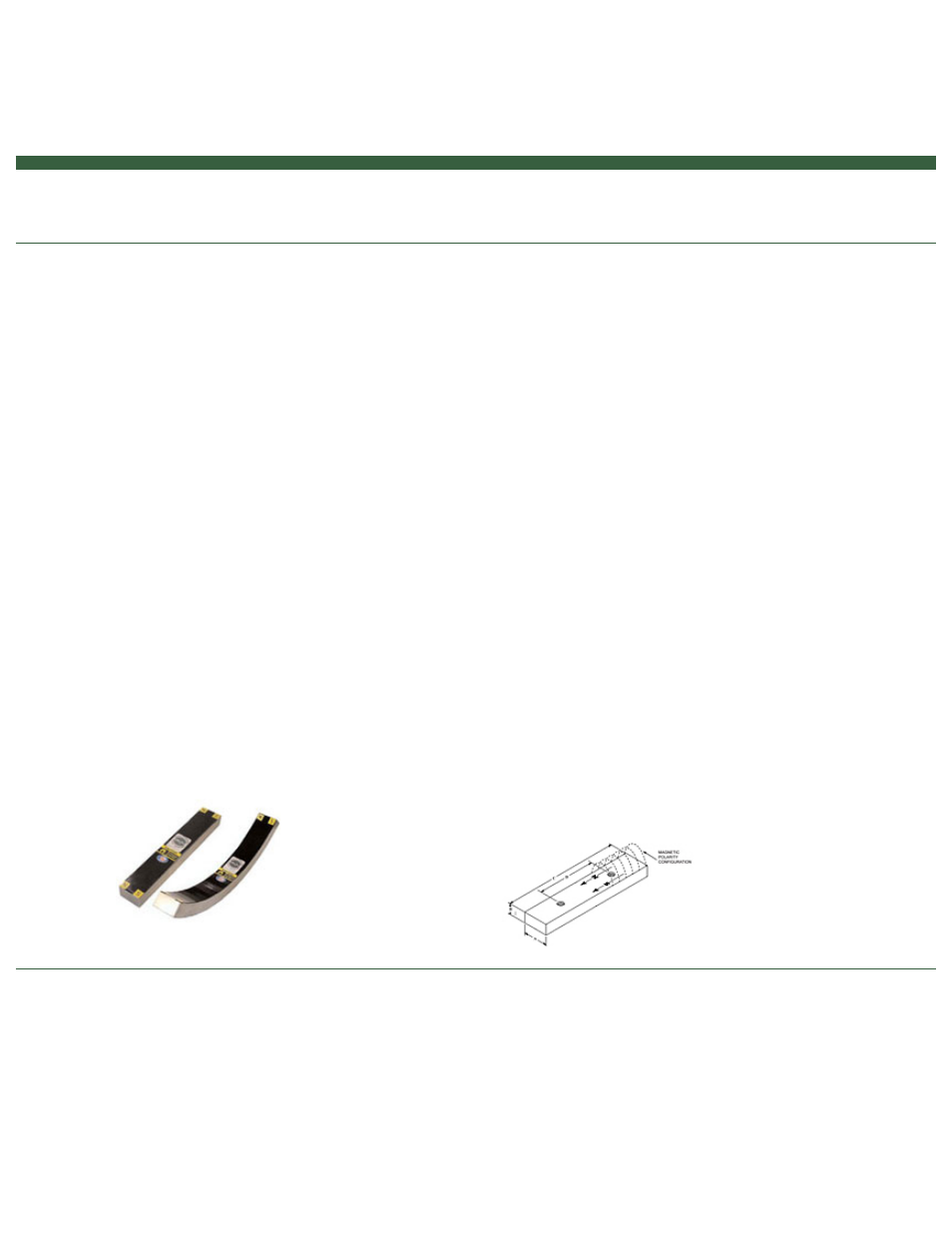

Item # BR-4, Box Rails (BR Series)
List Price QUOTE
Application:
MPI's Magnetic Conveying Box Rails (BR series) are designed for easy installation into new or existing belted conveyors or other material handling equipment.
Magnetic Box Rails are used to hold and position ferrous or partly ferrous parts. They are ideal for use in "can handling" conveyor systems. The rail's strong magnetic
field is completely contained within the working surface and is extremely effective in applications which require a high "reachout" magnetic field.
Magnetic box rails are used to:
• Save floor space by elevating parts up inclines
• Change direction of moving parts
• Control the speed of moving parts
• Stabilize and hold parts in position
• Magnetically separate ferrous parts from non-ferrous materials in conveying and processing lines
Operation:
Magnetic Box Rails are usually mounted in tandem with magnetic pulleys and other rails beneath a conveyor's belt. The mounting flange provides quick installation to a
conveyor's framework or table and can be custom designed and manufactured to fit specifications.
Standard Features:
• 100% stainless steel cover
• Powerful ceramic magnet material
• Mild steel backing plate
• Heavy duty welded construction
Optional Features:
• Rigidized face plate
• Angled in-feed and discharge ends, to match pulley
• Tapering magnetic fields
• Curved rails for 30 degree, 45 degree, 60 degree or 90 degree turns and inside or outside radii from 4" to 72"
• Custom face plate flanges
• Custom mounting holes
• Non-standard magnetic polarities
• Multiple lane magnetic fields
SPECIFICATIONS
