Magnetic Products 600 Series, Plate Magnets User Manual

Specifications

background image

Magnetic Products, Inc.

683 Town Center Drive,

Highland, MI 48357

Tel: 248-887-5600

Email: [email protected]Website: www.mpimagnet.com

Item # 600 Series, Plate Magnets (PM, PMS, PM-SS, PM-DS Series)

List Price QUOTE

Application:

MPI Plate Magnets are designed for use in gravity-fed angled chutes which convey low-to-high volume product streams. Typical installations are below-the-flow, where
product flows over the magnetic face, providing optimum ferrous tramp metal retention in a wide variety of chute applications.

Operation:

MPI Single-step and Double-step Plate Magnets divert the product stream away from the magnet surface, while allowing tramp metal to be magnetically attracted to the
magnet's surface behind the collection steps. Magnetic 400 series stainless steel pole areas maximize the holding power of the magnets. These Plate Magnets are
easily installed and are supplied with sanitary hinges, latches and mounting hardware. The hinged mounting design permits quick and easy cleaning of the magnet
surface. The strong magnetic field is effective in product streams up to 8" deep.

Standard Features:
• Permanent Ceramic magnet material-will not demagnetize
• 100% stainless steel enclosed design Maximum separation magnetic circuit
• 1" wide uniform sealing flange to prevent product leakage
• Waterproof, weather-resistant enclosure
• Rugged all-welded construction
Optional Features:
• Custom designs and mountings
• Powerful Rare Earth magnet material
• Replaceable abrasive resistant face plates
• Quick-clean designs available
PLEASE NOTE: Customer may specify width on RFQ

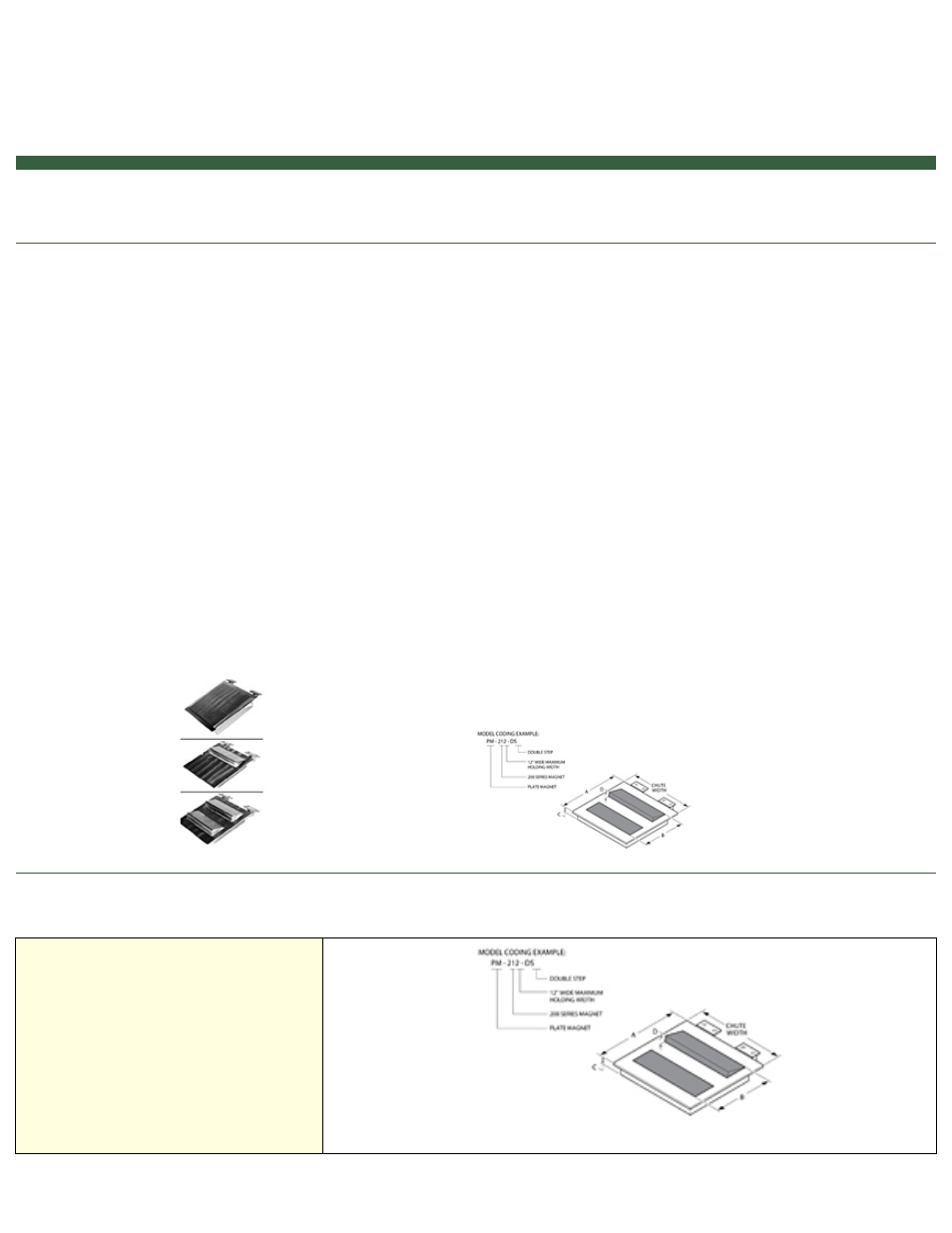

SPECIFICATIONS

Diagram

Plate Magnets (PM, PMS, PM-SS, PM-DS Series) Diagram

4/20/2014 | Page 1 of 2
