15D1 T OUCHCOMPUTER U SER G UIDE 24

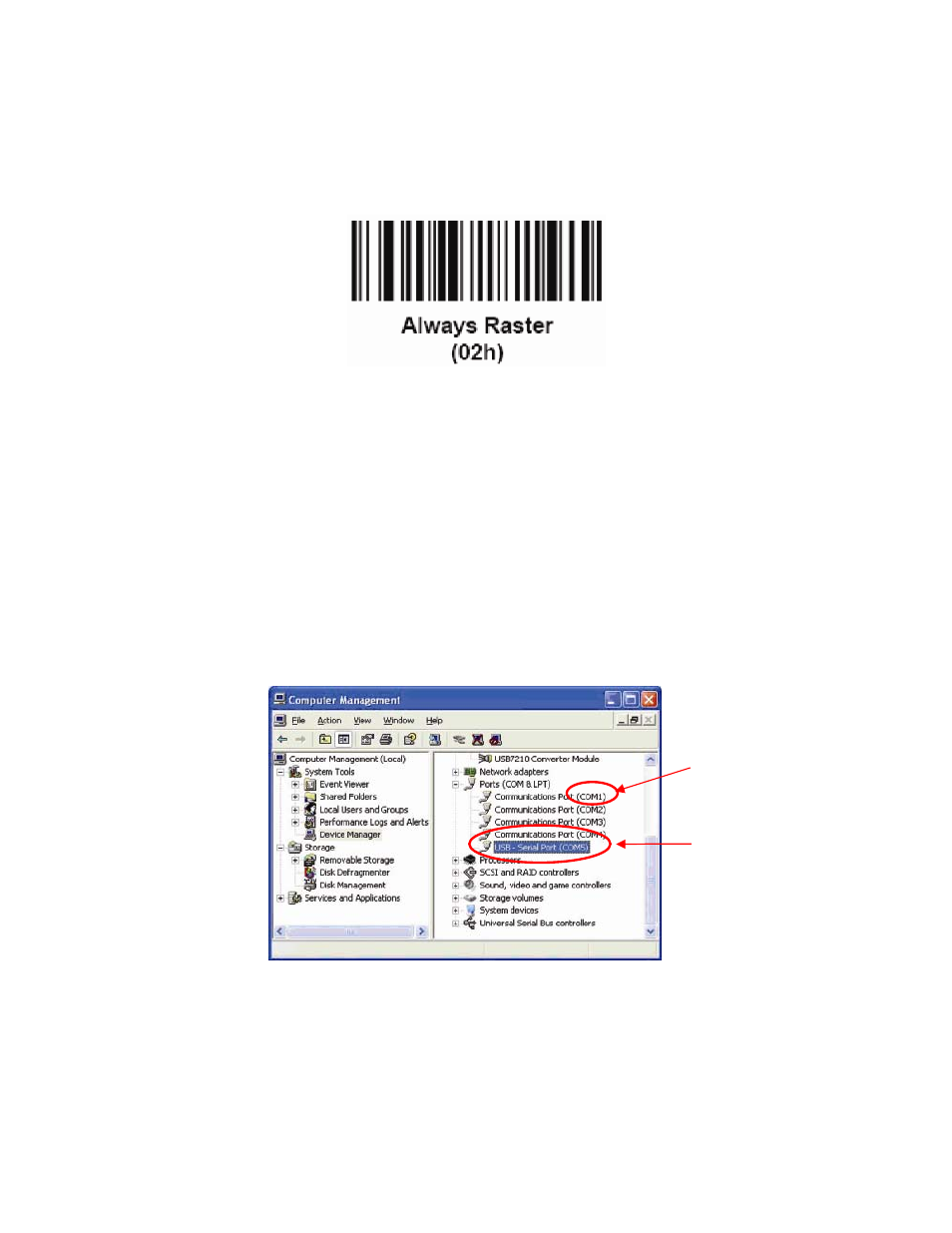

2. Now scan the barcode below to change the scanning pattern. Using this
scanning pattern allows you to read 2-D barcodes (you can still read 1-D
barcodes).
Testing the Barcode Scanner
1. Determine which port the barcode scanner is using:
a. Click Start > Settings > Control Panel (in Windows XP) or Start >
Control Panel (in Vista).
b. In the Windows Control Panel screen, double-click the Computer
Management application.
c. In Computer Management, select Device Manager. In the right pane, look
under the Ports section, and note the COM value (COM1, COM2, COM3,
and so on) of the USB-Serial Port object.
2. From the 15D1 Test Applications folder on the desktop, double-click the
Barcode Scanner Test icon to start the SSIContainer application.
COM value
USB serial port
