23015-3-0707 Page 15

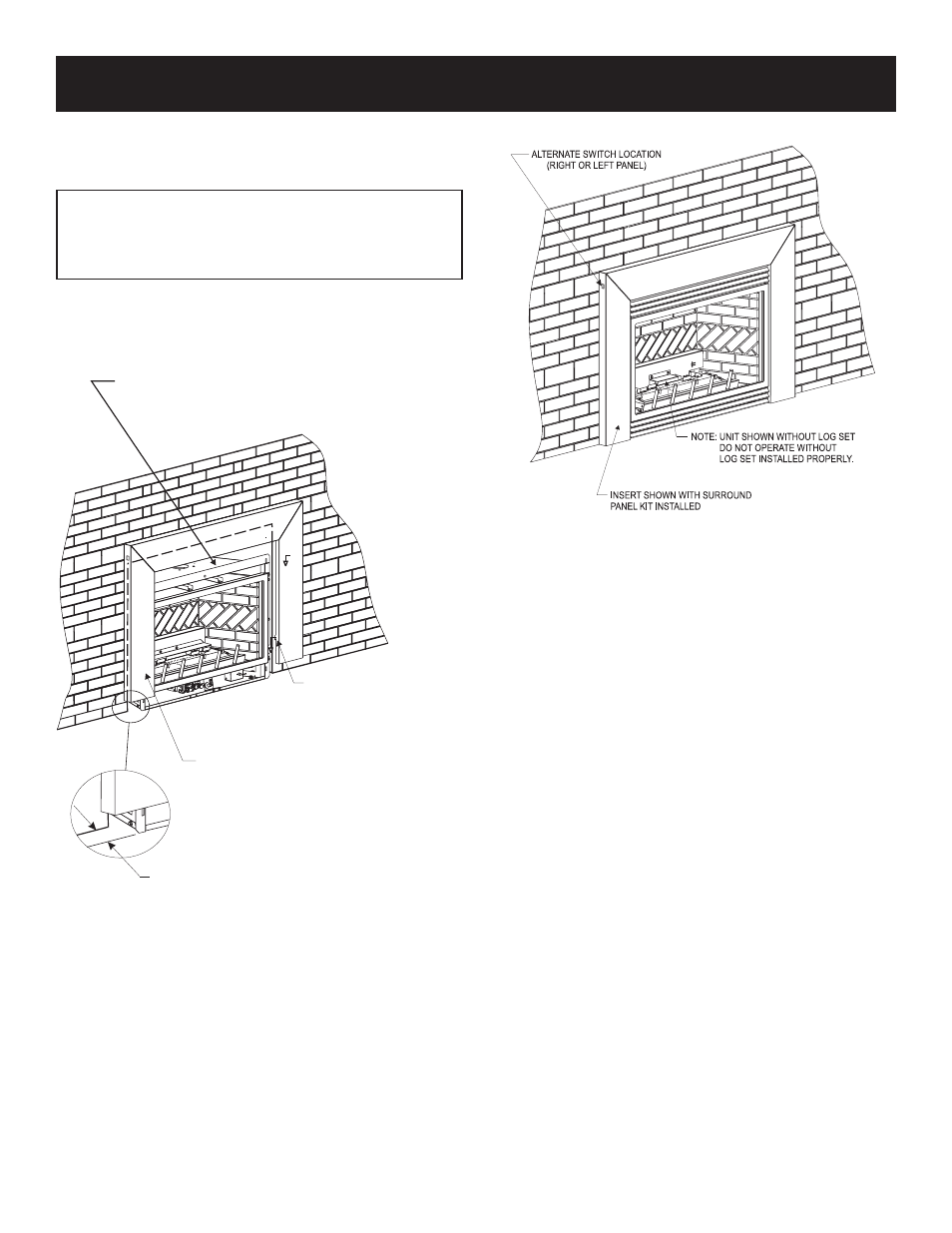

SURROUND PANEL INSTALLATION
INSTALLING THE TRIM SURROUNDS
Combustible materials MUST NEVER overlap onto the front
face.
WARNING: WHEN FINISHING THE FIREPLACE
INSERT, NEVER OBSTRUCT OR MODIFY THE AIR
INLET/OUTLET LOUVERS ON THE FIREPLACE IN-
SERT IN ANY MANNER.
NOTE: INSTALL SURROUND PANELS
SO THAT THE TOP PANEL
RETURN FLANGE SLIDE’S
OVER THE TOP FLANGE ON
THE INSERT
1” Ref.
SURROUND PANEL ASSEMBLY
ENGAGE SIDE PANEL
HOOKS WITH THE
NOTCHES PROVIDED ON
THE SIDE FLANGES
Figure 14
Figure 15
