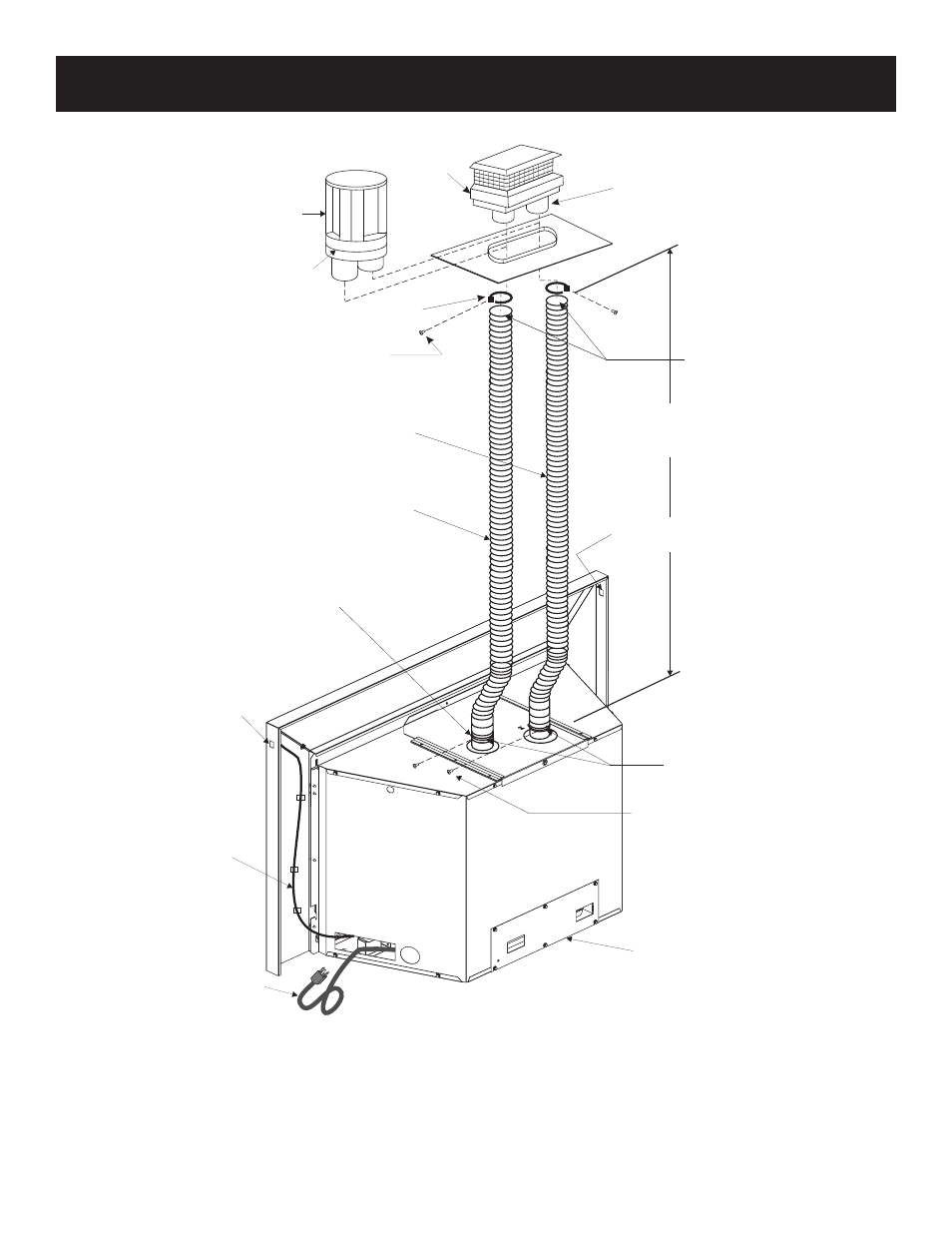

Figure 8
VENTING AND INSTALLATION
RECTANGULAR
TERMINATION CAP
(DVVK3FV KIT)
VENT CLAMPS
INTAKE VENT
FLUE EXHAUST VENT
OPTIONAL ON/OFF
SWITCH LOCATION
10’ MINIMUM
35’ MAXIMUM
VENT CLAMPS
NOTE: LONG EXTENSION
TUBE FOR INLET VENT
CONNECTION.
RETAINER SCREWS MAY
BE INSTALLED THROUGH
THE VENT CLAMPS TO
ENSURE POSITIVE SECUREMENT
OF VENTING.
SCREWS ADDED THROUGH
VENT CLAMPS TO RETAIN
VENTING TO COLLARS
RECOMMENDED.
USE HIGH TEMP
SEALANT ON VENT
CONNECTIONS
USE HIGH TEMP
SEALANT ON VENT
CONNECTIONS
ROUND
TERMINATION CAP
(DVKI KIT)
ROUND CO-LINEAR TO
CO-AXIAL ADAPTOR
BLOWER ACCESS
COVER PLATE
BLOWER
POWER CORD
OPTIONAL
LOW VOLTAGE
WIRES
OPTIONAL ON/OFF
SWITCH LOCATION
