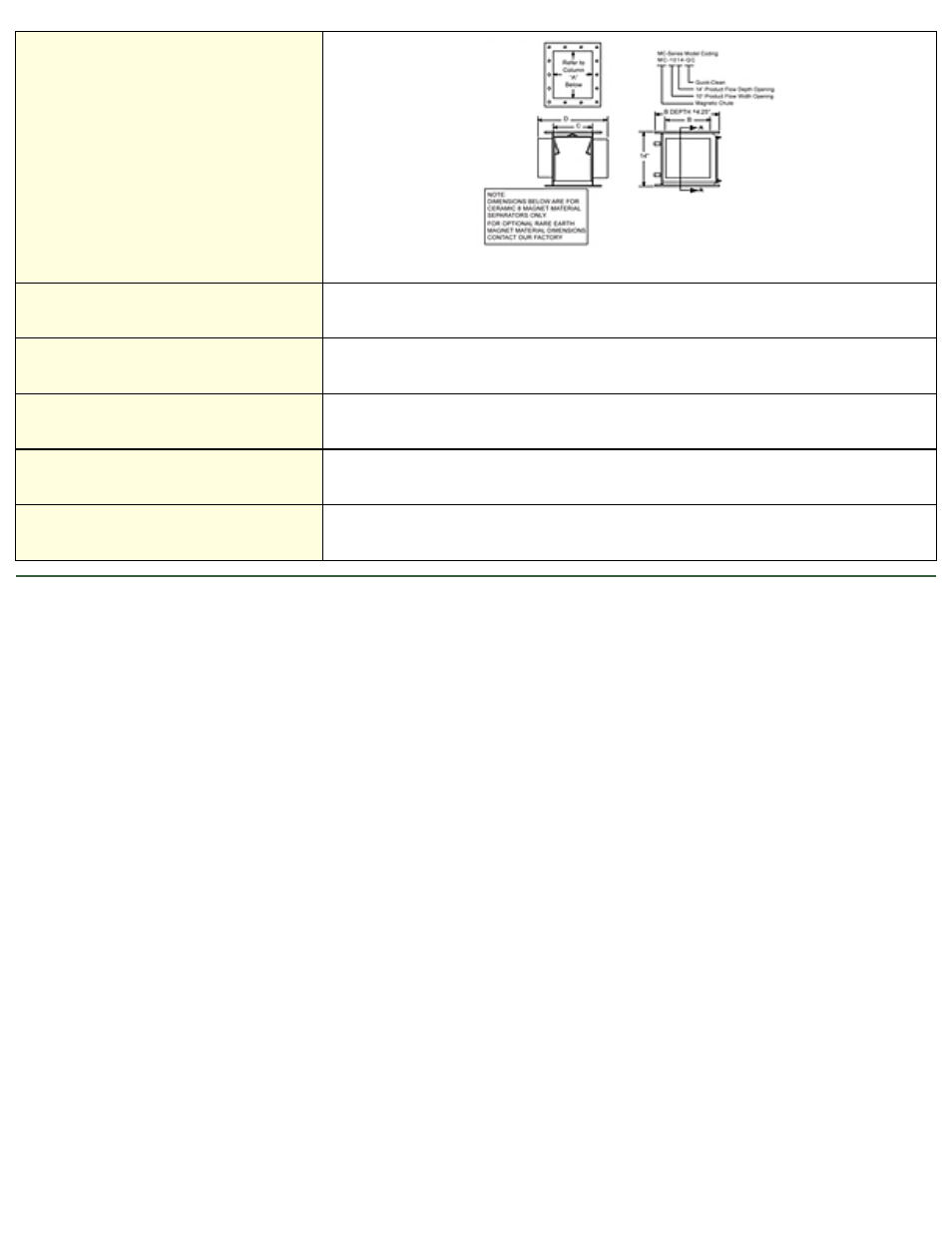

Magnetic Chutes Quick Clean (MC-QC Series) Diagram

Chute's Max. Inlet Area Opening A

288 in²

1858 cm²

MC's Product Opening Depth B

36 in²

91.4 cm²

MC's Product Opening Width C

10 in

25.4 cm

MC's Overall Width D

20.75 in

52.1 cm

Weight

700 lb
317 kg
