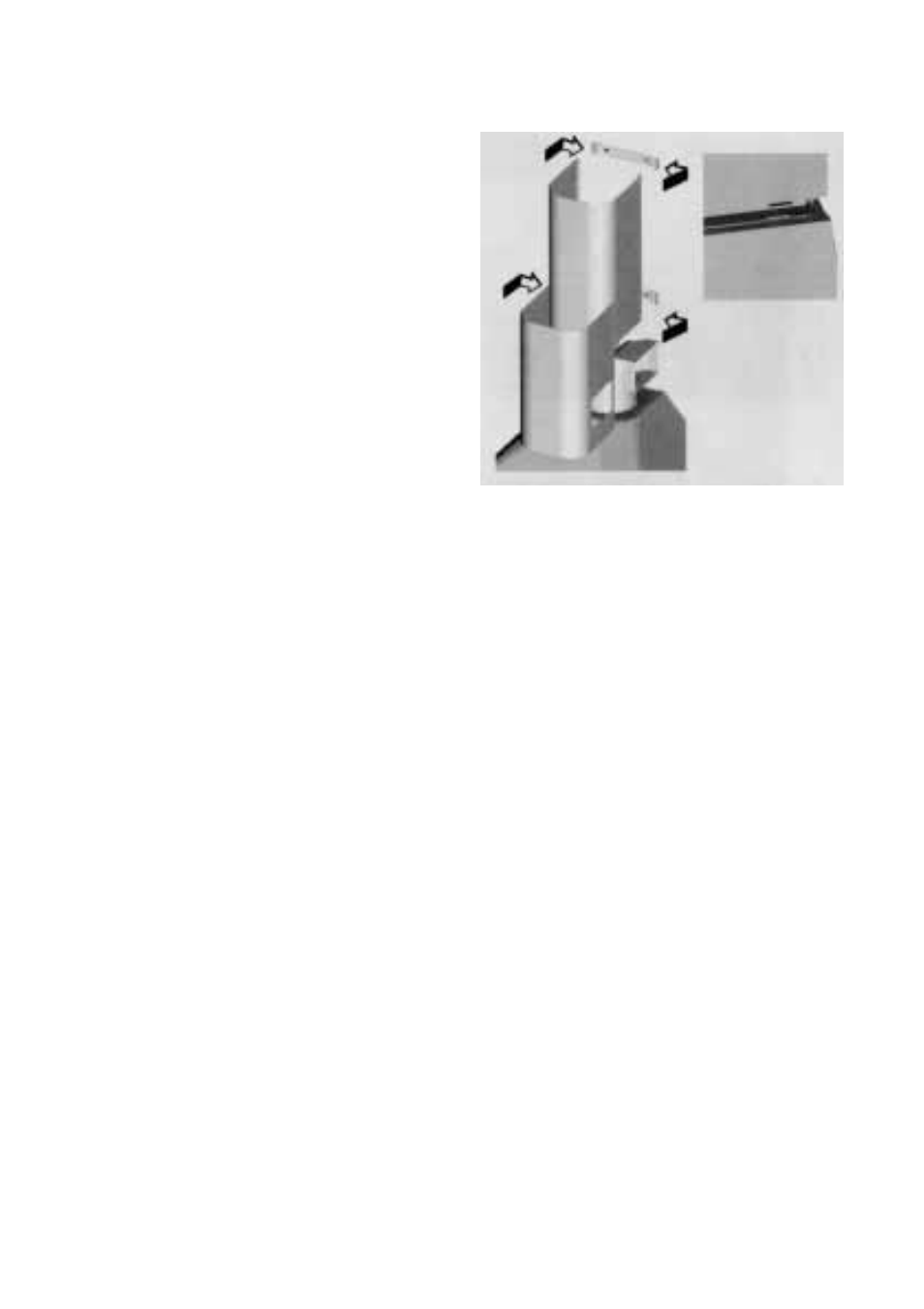

Fitting the Chimney Stack
The chimney stack consists of two 2 sections.
1. Fit the upper section (S) first. Expand the
chimney slightly to allow it to be fitted
over the wall brackets, and then secure
the upper section using the 4 self
tapping screws provided.
2. Fit the lower chimney section (I) as
above ensuring the base of the
chimney is fitted correctly into the
recess around the top of the canopy
as illustrated.
3. When the chimney stack has been
installed, fit the two venting grilles
into the apertures located on either
side of the lower chimney stack.
The grilles are marked with two
arrows and should be fitted with one
arrow pointing upwards and the other
towards the front.
Note: When the cooker hood is used in
recirculation mode, ensure the
grilles are properly secured to the
recirculation spigot R, as illustrated.
