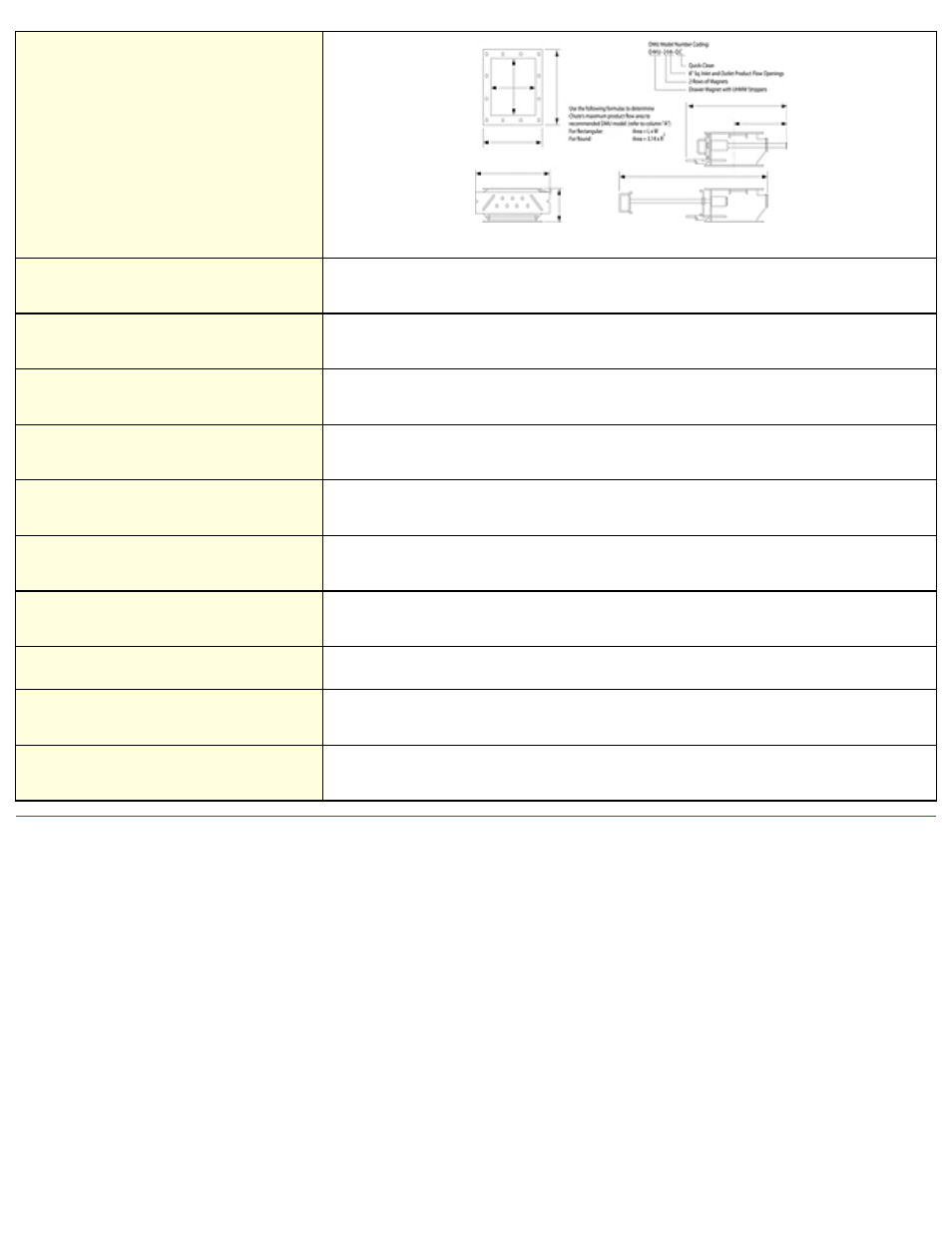

Drawer Magnet and Housing Quick-Clean (DMU-200-QC Series) Diagram
Chute Max. Area A
64 in²
413 cm²
Flange Width B
16.25 in
41.3 cm
DMU Area Opening C
144 in²
365.7 cm²
Overall Width D
21.75 in
55.2 cm
Overall Length E (Drawer Closed)
31 in
78.7 cm
Overall Length F (Drawer Open)
38.23 in
97.1 cm
Rear Edge to Center G
16.5 in
41.9 cm
No. of Magnetic Tubes (2 Rows)
11
Weight
128 lb
58.1 kg
Note
This product ships by freight truck. You will be contaced before your order is finalized to arrange shipping
and approve any shipping charges.
