Magnetic Products 400 Series, Rare Earth Plate Magnets (NP Series) - Manual (Page 2)

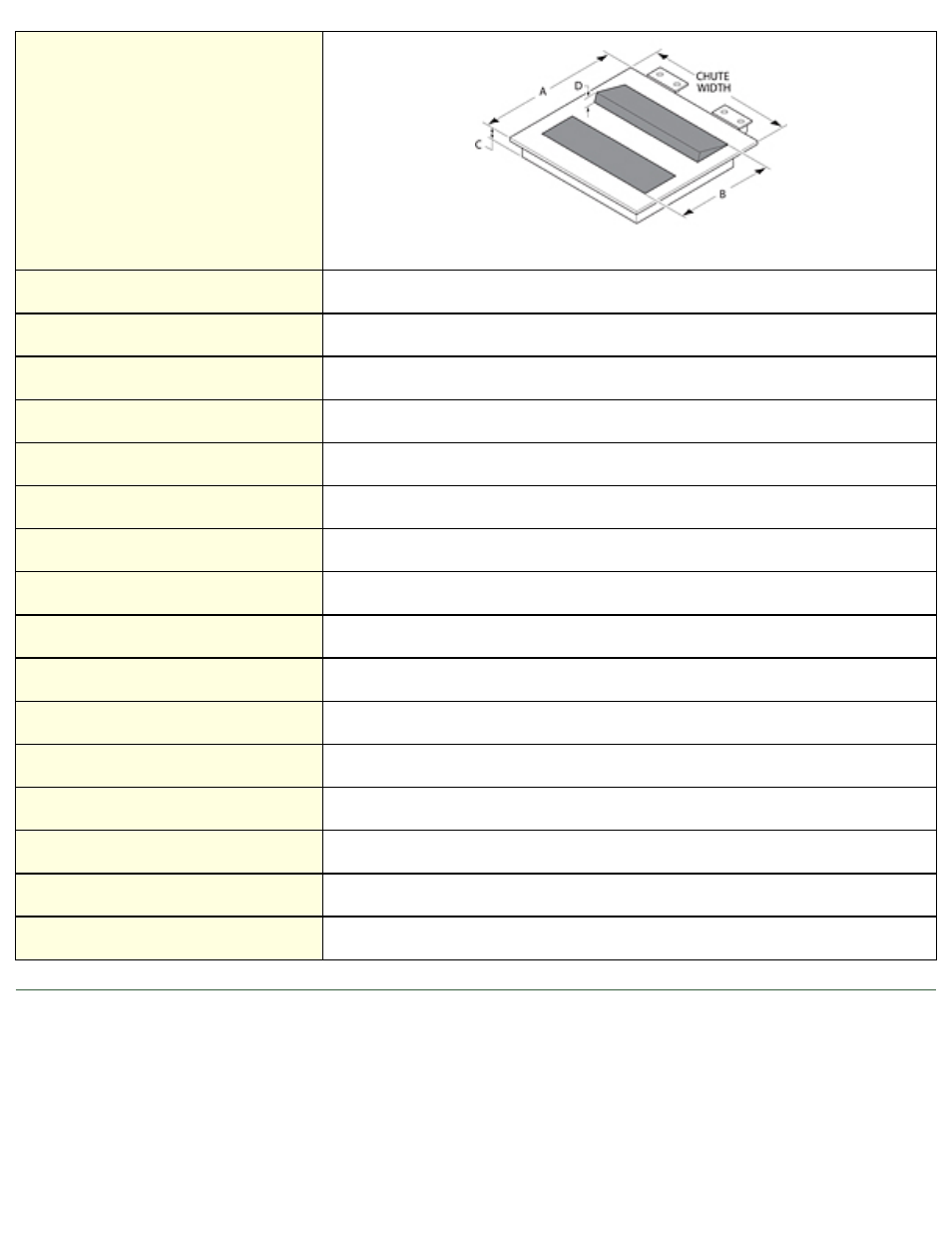

Diagram
Rare Earth Plate Magnets (NP Series) Diagram
Overall Length "A" (Holding)
10 in
Overall Length "A" (Reachout)
14 in
Overall Length "A" (Combination)
12.5 in
Magnetic Face Length "B" (Holding)
8 in
Magnetic Face Length "B" (Reachout)
12 in
Magnetic Face Length "B" (Combination)
10 in
Thickness "C" (Holding)
1.75 in
Thickness "C" (Reachout)
1.75 in
Thickness "C" (Combination)
1.75 in
Effective Magnetic Field Depth (Holding)
3 in
Effective Magnetic Field Depth (Reachout)
5 in
Effective Magnetic Field Depth (Combination)
5 in
Weight (Holding) 1
90 lb
Weight (Reachout)
90 lb
Weight (Combination)
90 lb
Note
Custom sizes are available.
1 Weight is based on actual part number.
4/20/2014 | Page 2 of 2
