Suggested mounting hole pattern – Whelen 7098000 User Manual

Page 2

background image

Page 2

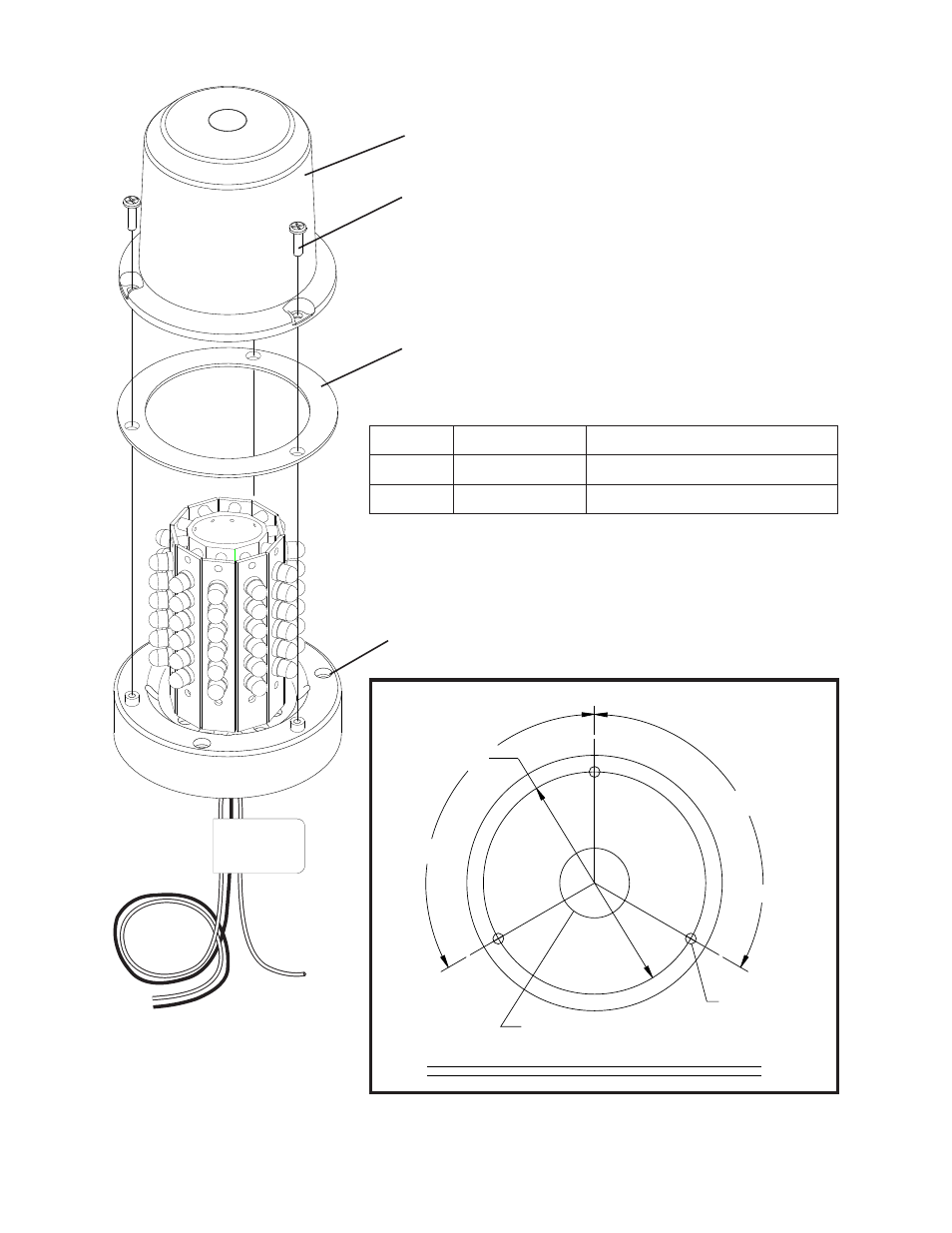

Lens
P/N: 68-4990257-30

68-4990257-31 (Drain Hole)

Lens Screws
P/N: 14-062216-05M
(shipped loose with unit for installation)

Gasket
P/N: 38-0250843-00

Model

7098000

7098001

Part Number

01-0770980-00

01-0770980-01

Description

Top Mount

Bottom Mount

Suggested Mounting Hole Pattern

120°

3.190”

3x#6-32 MTG

1.00” Clearance for wires

120°

“RTV” required after hardware installation
for inverted (bottom) mounted units
