OUTBOARD
WHELEN STROBE
LIGHT POWER SUPPLY
CONNECTORS ON STROBE
LIGHT POWER SUPPLY
MUST FACE OUTWARD
WHELEN STROBE
LIGHT POWER SUPPLY
OUTBOARD
IMPORTANT NOTE: CONNECT
CABLES TO STROBE LIGHT
POWER SUPPLY BEFORE
INSERTING INSIDE ACCESS
CUT-OUT AND SECURE TO
MOUNTING BRACKETS.
WHE
LEN
STR
OBE
LIGH
T PO
WER
SUP
PLY
OUTBO
ARD

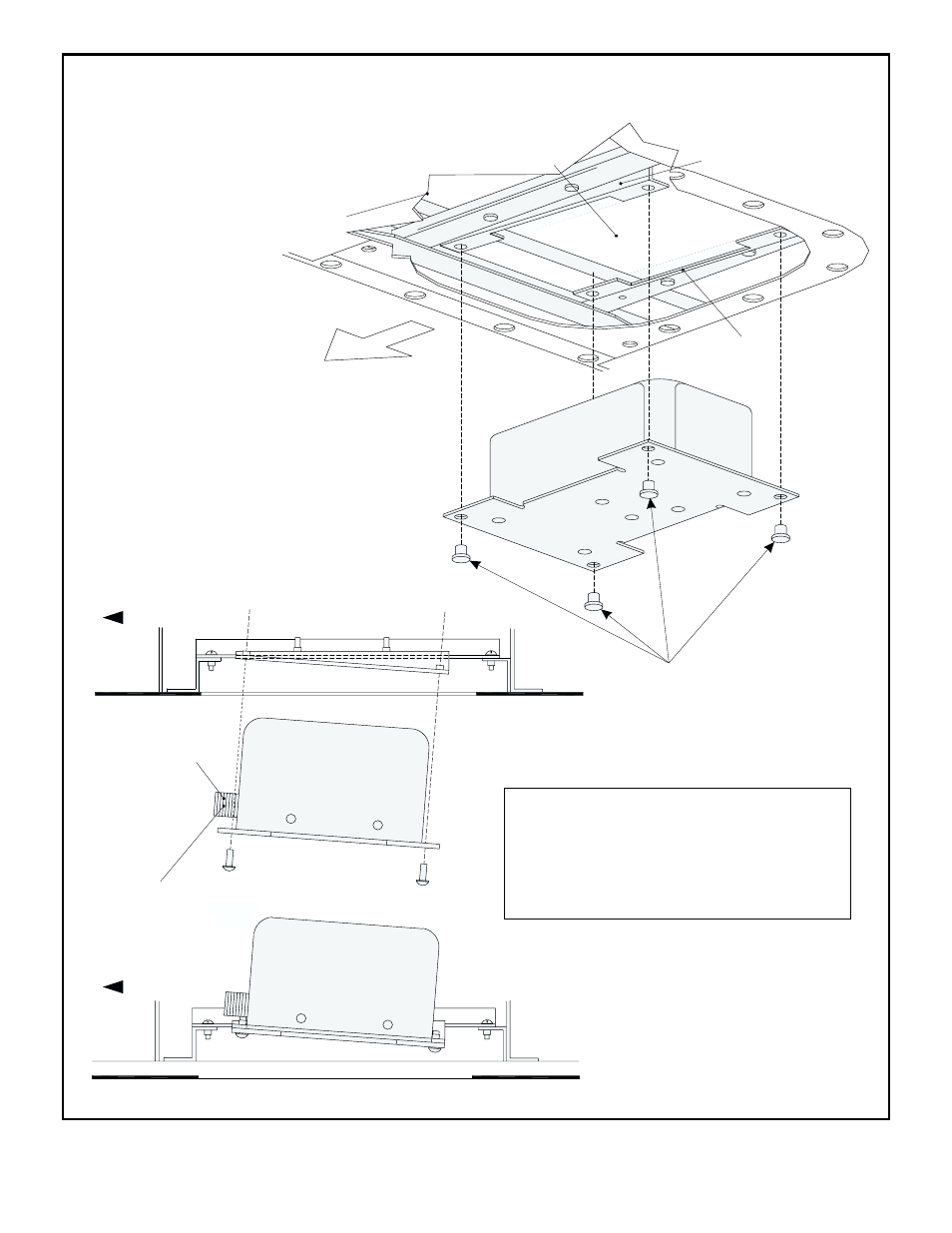

ACCESS
CUT-OUT
AIRCRAFT
SKIN
MOUNTING
BRACKET “B”
MOUNTING
BRACKET “A”
WARNING! THE STROBE LIGHT POWER SUPPLY
IS A HIGH VOLTAGE DEVICE. DO NOT REMOVE
STROBE TUBES OR DISMANTLE THE STROBE
LIGHT HEAD ASSEMBLIES WHILE IN OPERATION.
WAIT 10 MINUTES AFTER TURNING POWER
BEFORE STARTING WORK ON ANY TROUBLE
SHOOTING.
OFF
Four, #8-32 (MS51957-46)
mounting screws to secure
strobe light power supply
to mounting brackets “A” & “B”
Strobe Light Power Supply Installation Instructions (Whelen 90101 Series)
Form No.13048C
