7. Seven wire connectors
8. Three 8-32 x 3/8" phillips head screws
9. One hairpin clip
10. One clevis pin
11. Two knurled knob screws
12. Twenty-one 10-32 x 3/8" pan head screws
13. One jumper assembly
NOTE: Place the parts from the loose parts bags
in small containers to keep them from being lost.
If any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
3
This Manual Is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
One six-inch blade screwdriver One stepladder
One Phillips head screwdriver One wire stripper
Seven wire connectors (supplied)
Three 40-watt (max.) candelabra base bulbs (uplight)
Three 60-watt (max.) candelabra base bulbs (lower light)
MATERIALS
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would
be a 3-conductor (2-wire with ground) of the wire
size, to right:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
If you feel you do not have enough wiring knowledge or
experience, have your fan installed by a licensed
electrician.
WARNING !

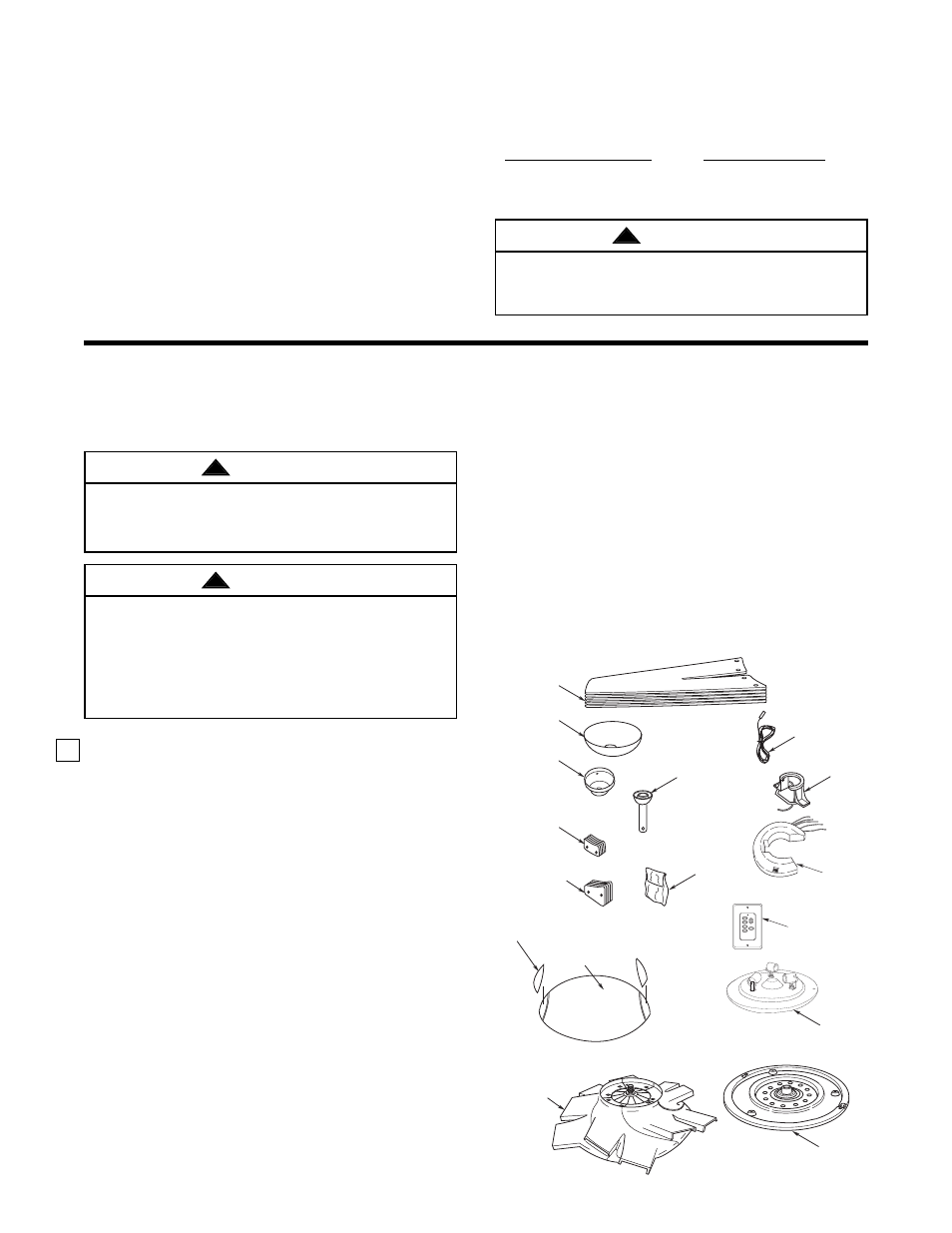

Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place
a check mark in the box. This will insure that all steps have been completed and will be helpful in finding
your place should you be interrupted.
CEILING
COVER
FAN BLADES
MOTOR
COUPLING
COVER
LIGHT KIT
ADAPTER
UPLIGHT
LEAD ASSEMBLY
BLADE HOLDER
CAPS (LEFT)
LIGHT KIT
PLATE
ASSEMBLY
SW116 FAN/LIGHT
WALL CONTROL
HANGER BALL/
DOWNROD
ASSEMBLY
HANGER
BRACKET
SW105
RECEIVER LOOSE
PARTS
BAG
LIGHT KIT
GLASS
DIE CAST
GLASS HOLDERS
FAN MOTOR
AND HOUSING
ASSEMBLY
BLADE HOLDER
CAPS (RIGHT)
HI
MED
LOW
FAN OFF REV
EMERSON
D/L
U/L
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal
injury or property damage.
WARNING !
WARNING !
1. Open styrofoam unit containing fan. Remove upper
and center sections of styrofoam unit. Remove parts
and check to see that you have received the following:
a. One fan motor and housing assembly
b. One motor coupling cover
c. One ceiling cover
d. Five fan blades
e. Five blade holder caps (left)
f. Five blade holder caps (right)
g. One hanger ball/downrod assembly
h. One hanger bracket
i. One light kit adapter
j. One light kit plate assembly
k. One light kit glass
l. Two die cast light kit glass holders
m.One uplight lead assembly
n. One SW116 Fan/Light Wall Control
(transmitter)
o. One SW105 Receiver
p. One loose parts bag containing:
1. One setscrew
2. One 5/32" hex wrench
3. One 3/16” hex wrench
4. Four 8-32 x 1-1/4” threaded studs
5. Four knurled knobs
6. Four lockwashers
Tools Needed for Assembly
