Parts explosion, Single cylinder elevating fifth wheel – SAF-HOLLAND XL-FW488 FW2800 and FW2900 Series Hydraulic Elevating Fifth Wheel User Manual
Page 11
XL-FW488 Rev A
11
FW2800-X, FW2900-X, FW2800-X-87 and FW2900-X-87
SINGLE CYLINDER ELEVATING FIFTH WHEEL

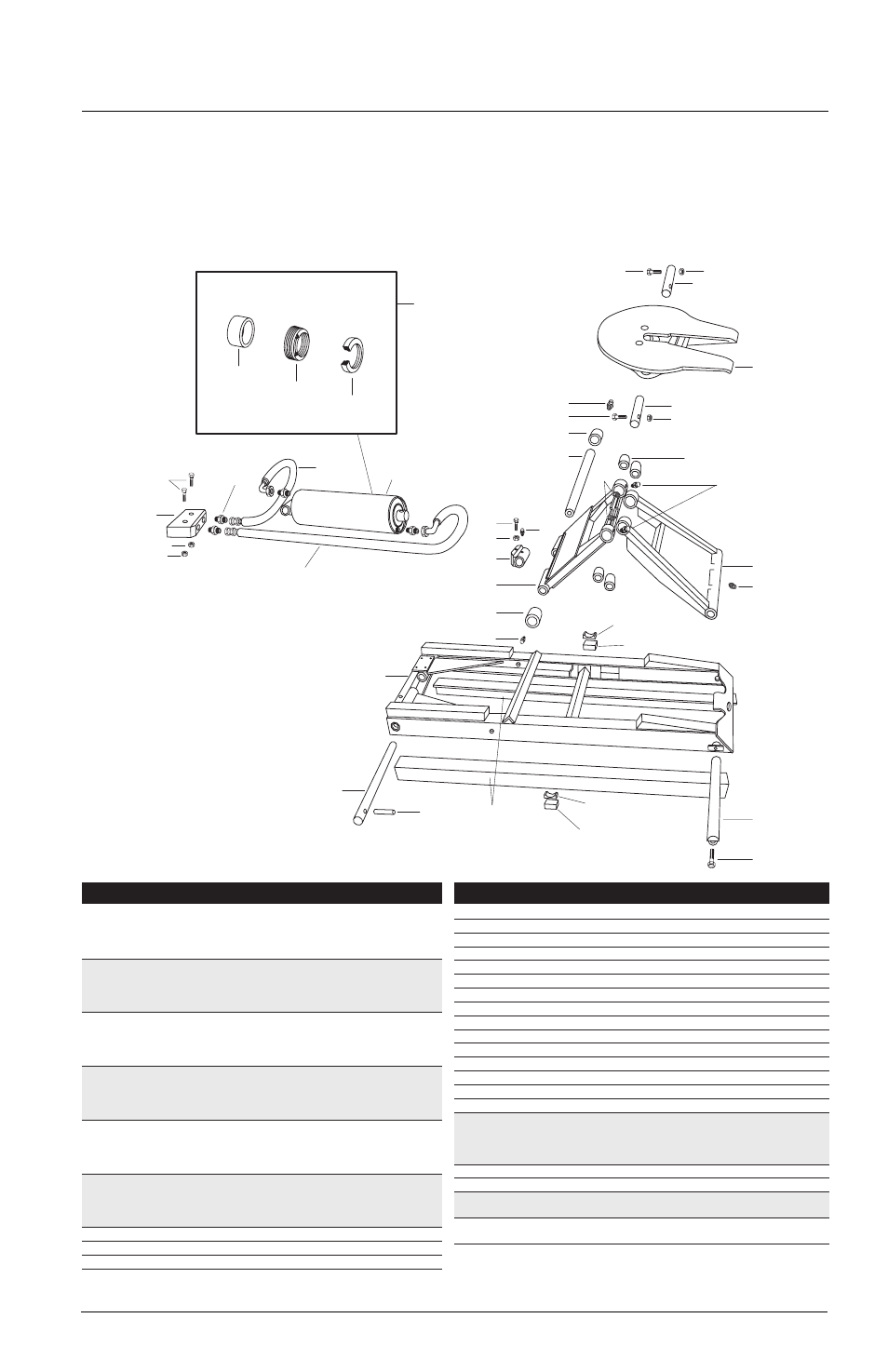

Parts Explosion
HYDRAULIC CYLINDER PARTS
BRONZE
BUSHING
VEE
PACKING
ROD
SCRAPER
26
13
12
11
(4 REQ.)
14
15
4*
20
24
21
25*
20
24
22
5*
23
21
17
(4 REQ.)
19
19
21
20
19
16
5*
3*
18
2*
22
1*
10
9
6*
7
8
27
27
29*
28*
29*
28*
ITEM PART NO.
QTY
DESCRIPTION
10
XA-2894
1
Front pivot shaft
11
XA-2928
4
Male connector
12
XB-2930
1
Hydraulic pump piping manifold
13
XB-C-38-C-214
2
Hex head bolt, 3/8˝-16 x 2
1
/
4
˝
14
XB-2936
1
Hose assembly
15
XB-2936-1
1
Hose assembly
16
XA-2811
1
Clevis sub-assembly
17
XA-0861
4
Bronze bearing
18
XB-H-38-C
1
45° grease fitting
19
XB-H-38
5
Grease fitting
20
XB-0103
3
Lock nut, 1/2˝-13
21
XB-BR-12-C-4
3
Hex head bolt, 1/2˝-13 x 4˝
22
XB-767
2
Grease fitting
23
XA-2893
1
Axle shaft
24
XA-2809
2
Fifth wheel pivot shaft
* 25A XA-2801-AX-1
1
Fifth wheel top plate sub-assembly
* 25B XA-2801-AX-1
* 25C XA-2801-07486-1
* 25D XA-2801-07486-1
26
RK-2774
N/A
Hydraulic cylinder rod bearing rebuild kit
27
XB-338
2
Lock nut, 3/8˝-16
* 28C XA-06245
2
Rest pad
* 28D XA-06245
* 29C XA-09498
2
Riser block
* 29D XA-09498
ITEM PART NO.
QTY
DESCRIPTION
* 1A
XA-2806-2
1
Frame sub-assembly
* 1B
XA-2906
* 1C XA-06288
* 1D XA-08172
* 2A
XA-2808-B
1
Rear support assembly
* 2B
XA-2908-B
* 2C XA-2908-B
* 2D XA-2808-B
* 3A
XA-2807-B
1
Front support assembly
* 3B
XA-2907-B
* 3C XA-2907-B
* 3D XA-2807-B
* 4A
XA-2810-1
1
Cylinder sub-assembly
* 4B
XA-2710-1
* 4C XA-2710-87
* 4D XA-2810-87
* 5A
XA-2756-2
2
Wheel
* 5B
XA-2756-3
* 5C XA-2756-3
* 5D XA-2756-2
* 6A
XA-292-14
2
Mounting angle
* 6B
XA-292-12
* 6C XA-292-12
* 6D XA-292-14
7
XA-2895
1
Rear pivot shaft
8
XB-6834
1
HHCS, 1/2-20 x 3/4˝
9
XB-21-S-375-3000
1
Rollpin
* An item with an “A” suffix denotes parts
used on FW2800-X.
An item with a “B” suffix denotes parts
used on FW2900-X.
An item with a “C” suffix denotes parts
used on FW2900-X-87.
An item with a “D” suffix denotes parts
used on FW2800-X-87.
