SAF-HOLLAND XL-FW10055UM FW16 Low Lube Series Fifth Wheels - Manual (Page 21)

21
Maintenance Procedures
English
XL-FW10055UM-en-US Rev D · 2014-01-29 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.

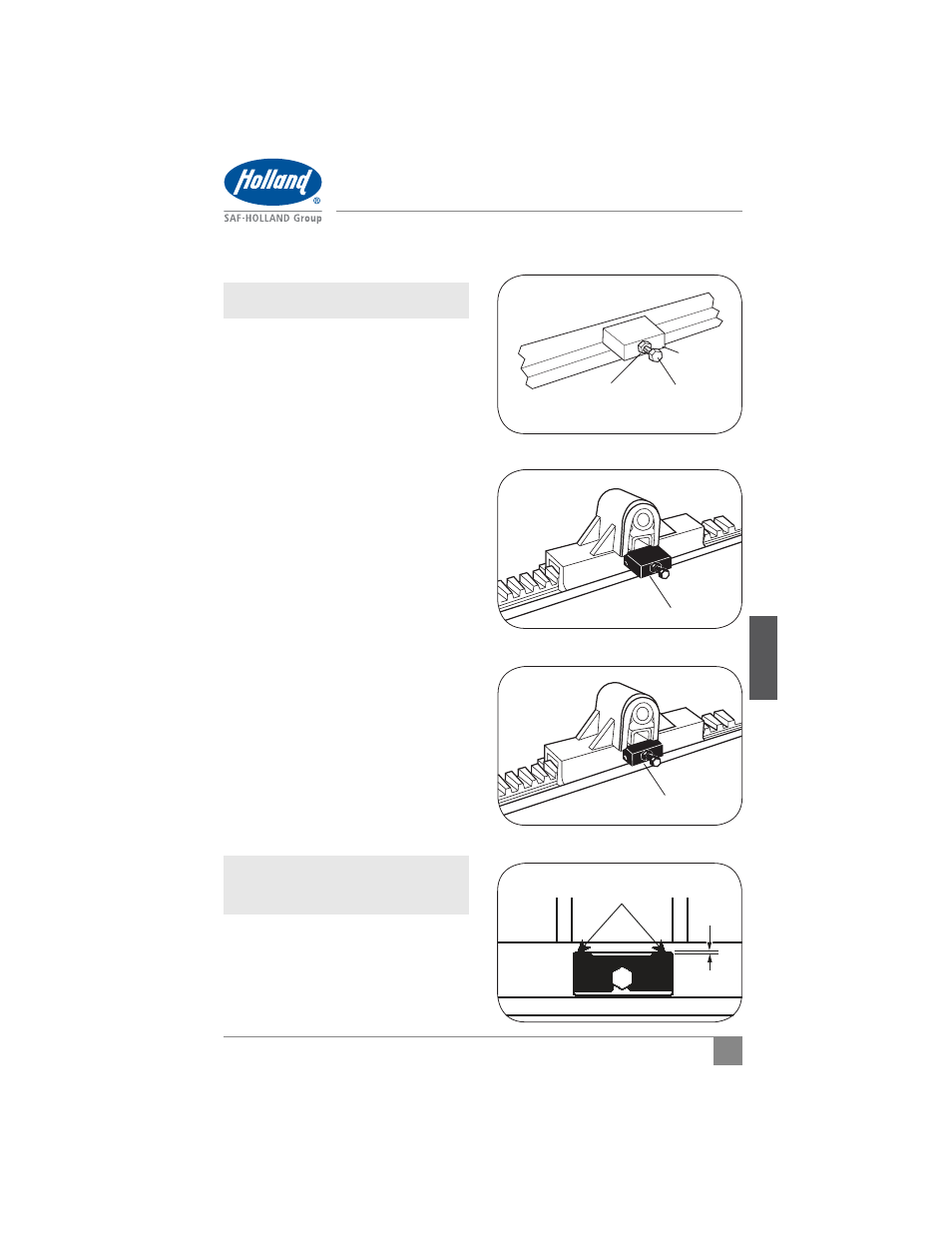

16. Slide Base Adjustment
NOTE: ILS slider locking plungers
DO NOT require adjustment.
Some HOLLAND ® slide bases are equipped with
adjustable locking plungers. Adjustment should
be performed at a minimum of every 60,000
miles or if excessive movement is noticed
when driving the vehicle. To obtain proper
adjustment, follow the following procedures:
1. Loosen lock nut and turn adjustment
bolt counterclockwise (Figure 41).
2. Disengage and engage locking plungers.
Verify that locking plungers have engaged
properly (Figures 42 and 43).
3. Tighten adjustment bolt until it contacts
the rack.
4. Turn adjustment bolt clockwise an
additional 1/2 turn, then tighten lock
nut securely.
If locking plungers DO NOT release fully to
allow fifth wheel to slide:
a. Check the air cylinder for proper
operation. Replace if necessary.
b. Check locking plunger adjustment as
explained above.
c. If a locking plunger is binding in the
plunger pocket, remove the locking
plunger using a HOLLAND
® TF-TLN-2500
spring compressor. Grind the top edges
of the locking plunger 1/16" (1.5 mm)
(Figure 44). Re-install and adjust the
locking plungers as explained above.
NOTE: If problems persists, contact
SAF-HOLLAND ® Customer Service
at 888-396-6501.
Figure 42
UNLOCKED
(RELEASED)
RACK
PLUNGER
Figure 44
CHECK FOR POSSIBLE INTERFERENCE
1/16"
(1.5 mm)
Figure 41
PLUNGER
ADJUSTMENT BOLT LOCK NUT
LOCKED
(ENGAGED)
RACK
PLUNGER
Figure 43
