Packaging for shipment, cont’d – Extron electronic HSA 402 User Manual
Page 27
HSA 400/402 Series • Packaging for Shipment
HSA 400/402 Series • Packaging for Shipment
Packaging for Shipment, cont’d
9
.
Insert the opposite end of the clamshell into the remaining
foam shell (figure B-6). Firmly push the foam shells
together as far as they will go to completely suspend the
HSA and clamshell. The sides of the clamshell protrude
through slots in the foam.

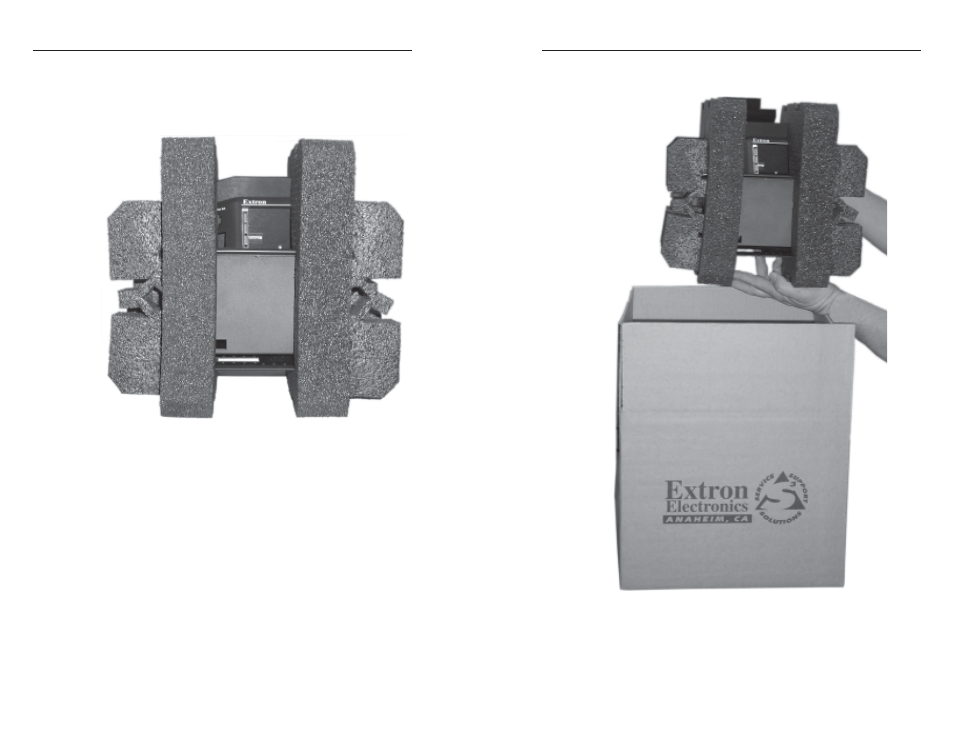

Figure B-6 — HSA suspended in the foam
10
.
Lower the foam-protected HSA into the shipping carton
(figure B-7).
Figure B-7 — Placing the HSA in the shipping carton
B-7
B-6
