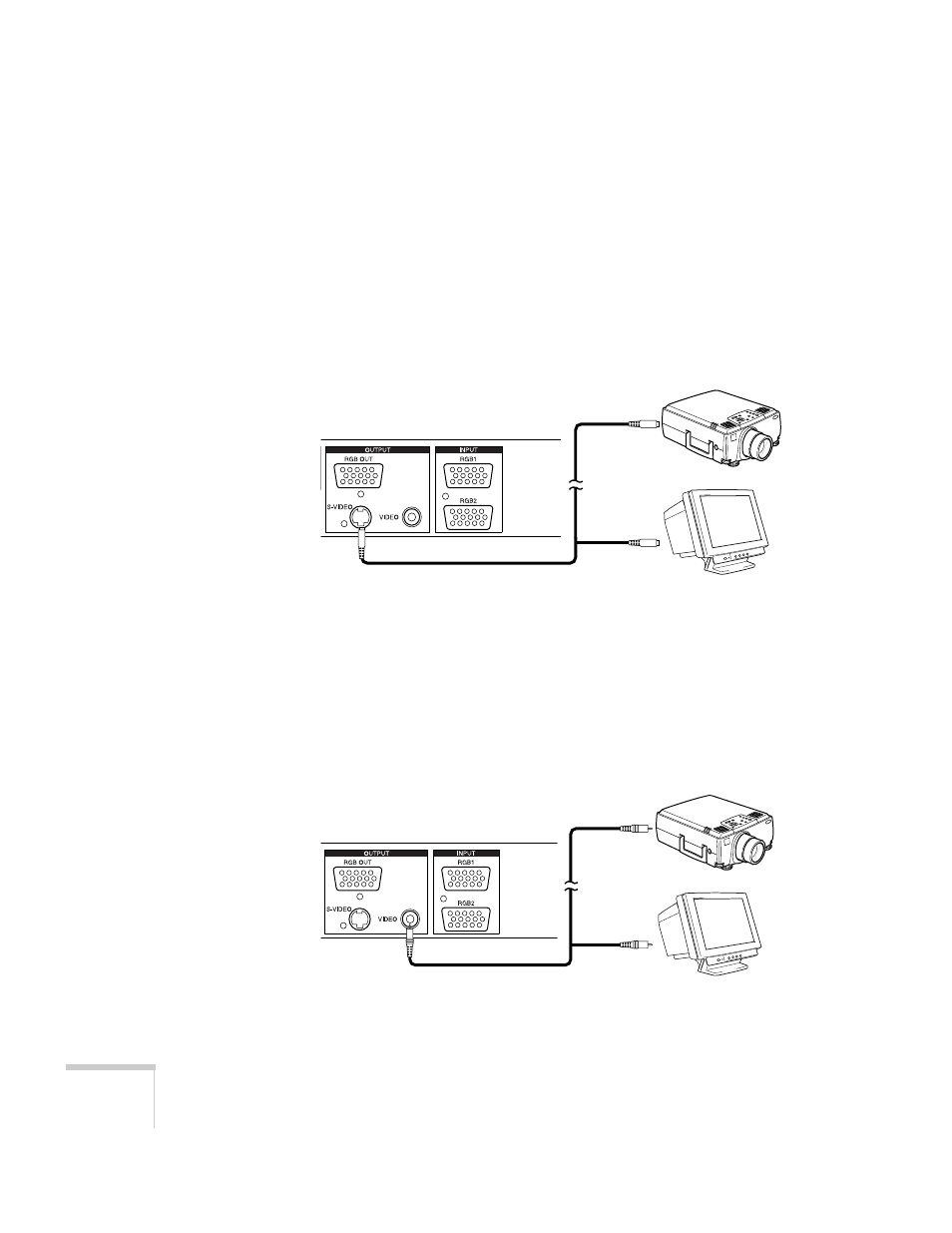

Setting Up the Document Camera
Connecting the S-Video Cable
Before you start, make sure your document camera and projector or
monitor are turned off.
1. Connect one end of the S-Video cable to the document camera’s
S-VIDEO
port.
2. Connect the other end of the S-Video cable to the S-Video input
port on the projector or monitor.
Connecting the RCA Cable
Before you start, make sure your document camera and projector or
monitor are turned off.
1. Connect one end of the RCA cable to the document camera’s
VIDEO
port.
2. Connect the other end of the RCA cable to the RCA input port
on the projector or monitor.
or
or
