550 MIN
593
560 - 570
80÷100
Building In
Please ensure that when the oven is installed
it is easily accessible for the engineer in the
event of a breakdown.
Building In
The surround or cabinet into which the oven will
be built must comply with these specifications:
the dimensions must be as shown in the
relevant diagrams;
the materials must withstand a temperature
increase of at least 60°C above ambient;
proper arrangements must be made of a
continuous supply of air to the oven to prevent
the oven overheating.

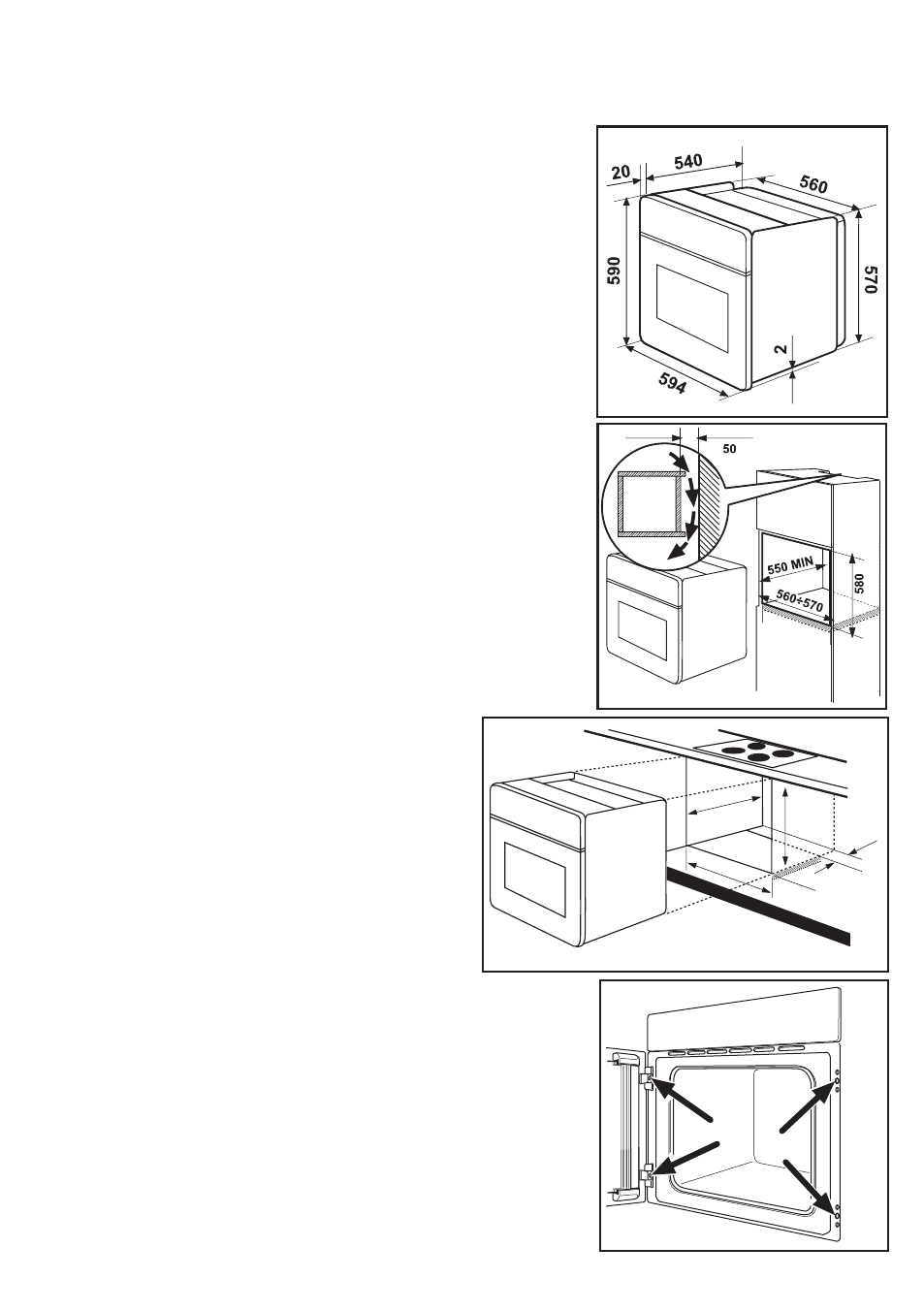

Dimensions of the oven and recess required are
given in the relevant diagrams.
Securing The Oven To The
Cabinet
1. Fit the oven into the cabinet recess,
2. Open the oven door,
3. Secure the oven to the kitchen cabinet with
four wood screws, which fit the holes
provided in the oven frame.
