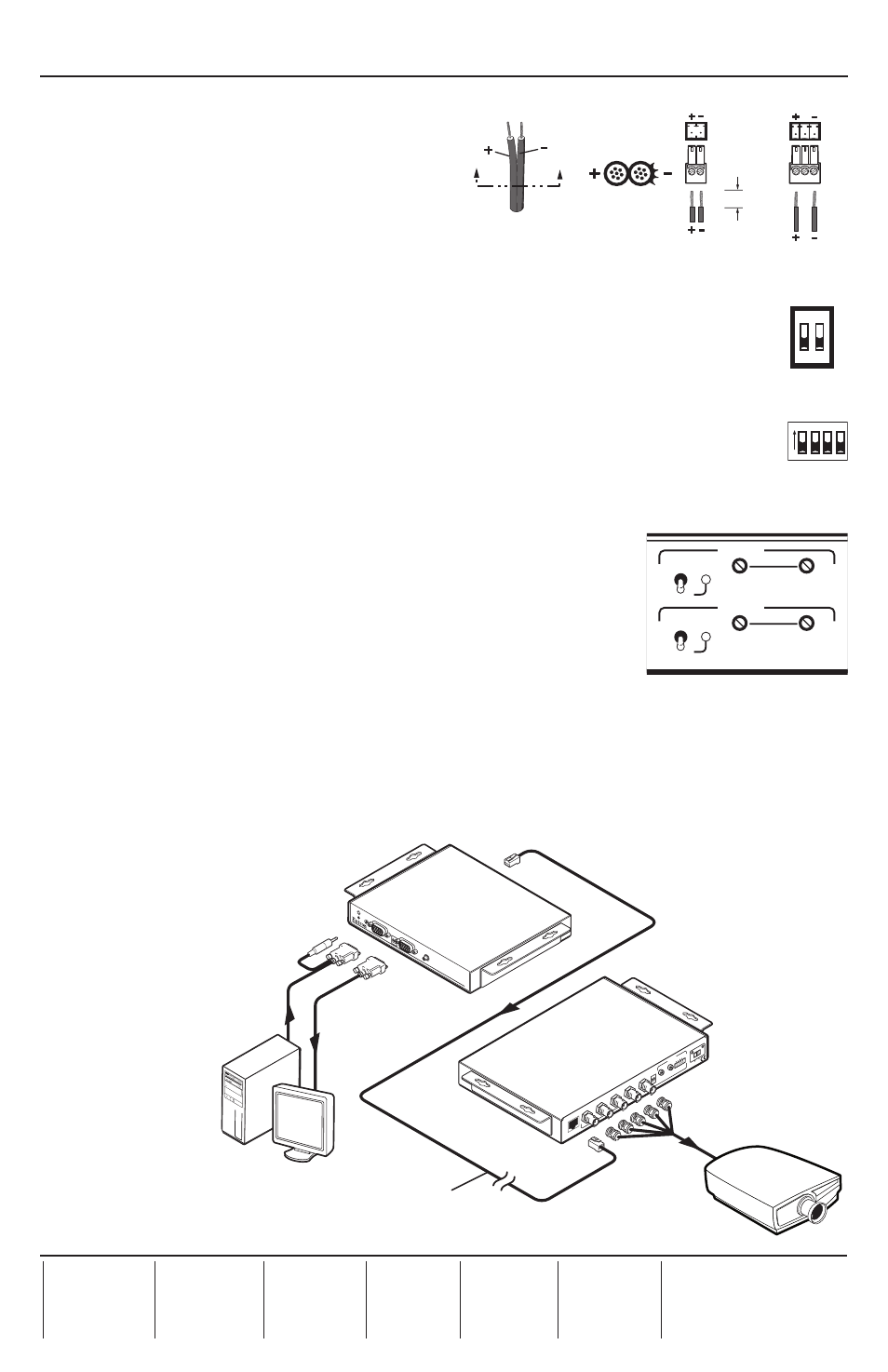

Step 4 — Power
Plug the included external power supply
into the 2-pole (TP R 15HD A) or 3-pole
(TP R BNC A) captive screw connector. Wire
the connector as shown and plug it into the
receiver. The front panel Power LED is amber
when power is present and green when signal
and power are present.
Step 5 — Set Rear Panel DIP Switches
2-position (TP R BNC A/AV), or 4-position (TP R 15HD A) switch (up = ON)
a
. SOG — Sync on Green. Set this switch up for RGsB and down for RGBHV or
RGBS video.
b
. C Sync — Set this switch up for RGBS and down for RGBHV or RGsB video.
c
. C video (TP R 15HD A only) — Set this switch down (off) for RGB video or up
(on) for component/S-video/composite video.
d
. N/C (TP R 15HD A only) — Not used.
Step 6 — Manual/Auto Switch
N
There are 2 sets of switches and controls (Video and RGB) on TP R BNC AV only.
Auto provides automatic signal level and peaking
compensation of the output for long cable runs.
Step 7 — Peaking and Level Adjustments
Manual compensation for long cable runs can be made by the user
with the Auto/Manual switch in the Manual position.
Image sharpness is adjusted with the Peaking Control. Increased peaking compensates
for mid- and high-frequency detail loss. Minimum setting (full counterclockwise) is zero
peaking.
Image brightness is adjusted using the Level Control which increases the video signal
output voltage to boost brightness.
While viewing the display, adjust either or both controls for the best image quality.
Extron
USA - West
Headquarters
+800.633.9876
Inside USA / Canada Only
+1.714.491.1500
+1.714.491.1517 FAX
Extron
USA - East
+800.633.9876
Inside USA / Canada Only
+1.919.863.1794
+1.919.863.1797 FAX
Extron
Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron
Asia
+800.7339.8766
Inside Asia Only
+65.6383.4400
+65.6383.4664 FAX
Extron
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron
China
+400.883.1568
Inside China Only
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron
Middle East
+971.4.2991800
+971.4.2991880 FAX
Setup Guide — TP Receivers, cont’d
68-547-50
Rev. A
01 09
SECTION A–A
Power Supply
Output
Cord
Ridges
Smooth
A
A
TP R 15HD A
3/16”
(5 mm)
Max.
TP R BNC A
N/C
N/C
Typical TP R application
TP R BNC AV
VIDEO
MANUAL
AUTO
LEVEL
PEAKING
RGB
MANUAL
AUTO
LEVEL
PEAKING
C SYNC
SOG
C VIDEO
N/C
ON
SOG
C SYNC
TP T 15HD A
TP R BNC A
TP
T 15HD
A
H-SH
IFT
BUFF
ERED
COMP
UTER
INPU
T
AUDIO
ID PIN
4
ID PIN 11
LOCA
L MO
NIT
OR
PC
CAT 5 UTP Cable
Audio
Projector
RGB INPUT
RGB OUTPUT
R
G
B
H/HV
V
A
AUDIO
L
R
B
SO
G C SYNC
PO
WE
R
15V
.5A DC
L
R
