RGB 400xi xi xi xi xi Series Installation Guide RGB 400xi xi xi xi xi Series Installation Guide
Installation, cont’d
General
Power ............................................. 9 to 24VDC, 0.25 A, 5 watts, external (The
power supply is included.)
Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) /
10% to 90%, non condensing
Operating +32° to +122°F (0° to +50°C) /
10% to 90%, non condensing
Rack mount ................................... No, but MK box mountable
Enclosure type .............................. Metal
Enclosure dimensions
460xi MK Plate ................. 3.4" H x 5.7" W (8.6 cm H x 14.5 cm W)
472xi MK Plate ................. 3.5" H x 5.83" W (8.9 cm H x 14.8 cm W)
Interface back enclosure ... 2.7" H x 3.3" W x 1.1" D
(6.9 cm H x 8.4 cm W x 2.8 cm D)
(Depth excludes front panel connectors
and controls.)
Product weight ............................ 0.5 lbs (0.2 kg)
Shipping weight .......................... 3 lbs (1.4 kg)
Vibration ....................................... ISTA/NSTA 1A in carton
(International Safe Transit Association)
Listings .......................................... UL, CUL
Approvals ..................................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ............................................. 30,000 hours
Warranty ....................................... 3 years parts and labor
Specifications are subject to change without notice.
Included Parts
These items are included in each order for an RGB 460xi or
RGB 472xi MK interface:
Included parts Part number
RGB 460xi MK (black/white, unfinished) 60-467-01, -51
RGB 472xi MK (black/white, unfinished) 60-518-01, 51
12VDC, 1.0A external power supply kit 70-055-01
RGB 460xi Series User’s Manual 68-542-01
RGB 470xi Series User’s Manual 68-661-01
RGB 400xi Series MK Installation Guide 68-636-02
M3, 30 mm machine screws 40-344-01
5 4
3. Mount the interface’s faceplate to the knockout box with
M3, 30 mm machine screws (figure 3).
Installation Cable
M3, 30 mm
Machine Screws
RGB 460xi MK
RGB 460
xi MK
INPUT
MONITOR
H. SHIFT
MIN/MAX
AUDIO NO M ONITO R
MO NITO R

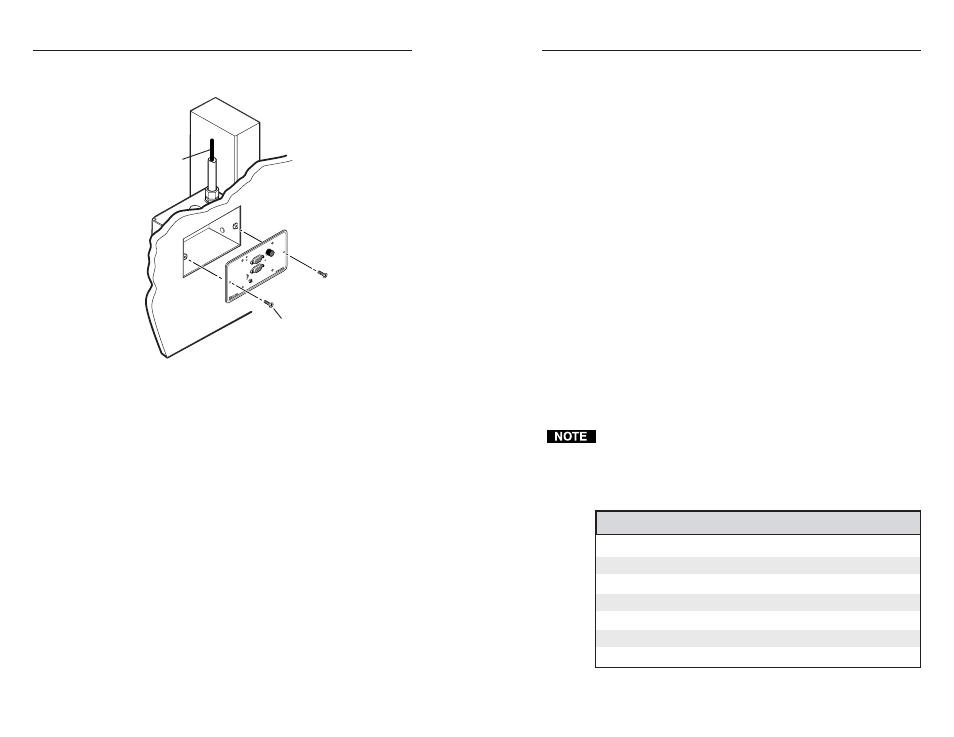

Figure 3 — Mounting the interface to the MK box
4. Reconnect the power supply.
Specifications
This guide shows power requirements and physical
specifications only. For electrical and functional specifications,
refer to the specific user’s manual for your interface.
