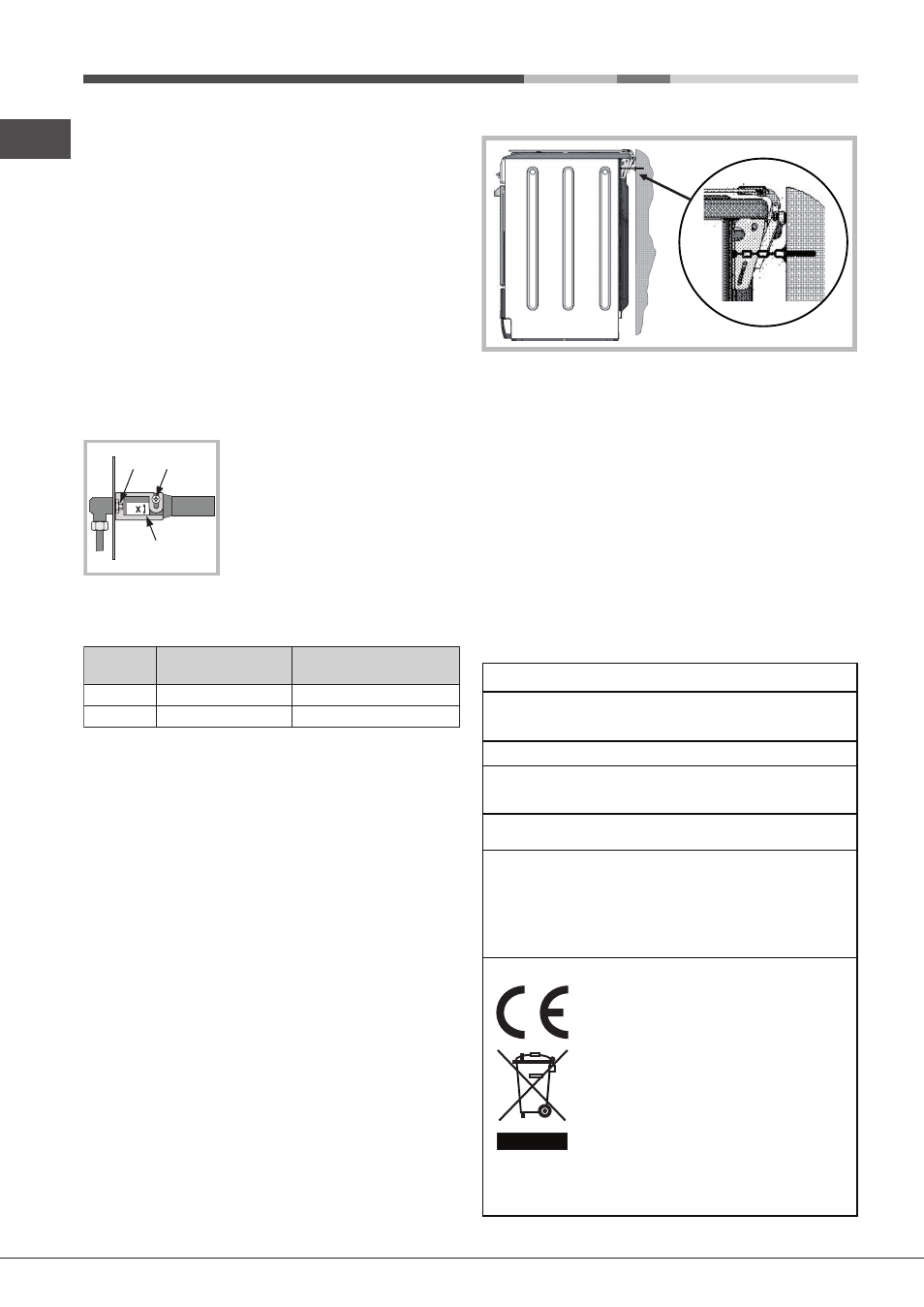

20
GB
• loosen the 2 screws which hold the oven burner in place, remove the
burner and replace the nozzles “N” with suitable ones for the new type of
gas according to the table “Burner and nozzle characteristics”.
• re-assemble all the components, regulate the air in the burner as well as
the minimum flow of the tap.
Adjusting the low flame
• Open the door and remove the oven floor;
• put the oven knob to position maximum and light the burner;
• close the door and wait for about 15 minutes;
• put the knob to position 1 (minimum);
• remove the actual knob and regulate the adjusting screw situated above
the thermostat spindle;
• after regulating the low flame as required, with the burner lit, change from
the high to the low flame position abruptly for a few times and close the
oven door normally, making sure that the burner does not go out.
Primary air flow control
N P
R
The oven burners and grill are fitted with the
primary air control bushing “R” (gas oven
burners). The primary air flow is controlled in
an appropriate way when the flame is stable
and even, without killing the flame when the
burner is cold or lighting the nozzle when the
burner is hot.
The flow may be adjusted by loosening the
screw “P” and moving the bushing “ R” so
that the opening “ X” corresponds to the values in the table below. Once all
the adjustments have been made, fasten the bushing “ R” with the screw “P”.
Burner
Opening "X" (mm)
natural gas "G20"
Opening "X" (mm)
liquid gas "G30-G31"
Oven
Grill
6.5
5
16
12
Oven
dimensions
HxLxP
33 x 54 x 38 cm
Burners
may be adapted for use with any type
of gas shown on the data plate.
EU Directive no 65/2014
supplementing Directive 2010/30/EU.
EU Regulation no 66/2014
implementing Directive 2009/125/EC.
Standard EN 15181,
Standard EN 30-2-1
TABLE OF CHARACTERISTICS
Volume lt. 78
Voltage and
frequency
230/400V~ 3N 50Hz (see data plate)
Power supply Max 10 kW
Energy
Label e
Ecodesign
This appliance conforms to the
following European Economic
Community directives:
- 2006/95/EC dated 12/12/06 (Low
Voltage) and subsequent amendments.
- 2004/108/EC dated 03/05/89
(Electromagnetic Compatibility) and
subsequent amendments.
- 93/68/EEC dated 22/07/93 and
subsequent amendments.
- 2009/142/EC dated 30/11/09 (Gas)
and subsequent amendments.
- 2012/19/EU and subsequent
amendments.
- 1275/2008 standby/off mode.
Safety Chain
! In order to prevent the appliance from overturning accidentally, for
example in case of a child climbing onto the oven door, the safety
chains MUST be installed!
The cooker is provided with safety chains that must be fixed with a screw (not
supplied as accessory) on the wall behind the appliance, at the same height
as the fixing point on the appliance.
Make sure that the chains are fixed in the back of the cooker, as shown in the
drawing, in such way to be tight and parallel to the floor.
! When the installation process is complete, the chains must be kept in tension!
