PC/104-Plus – COM-1460 Module
COM-1460 module’s functional blocks

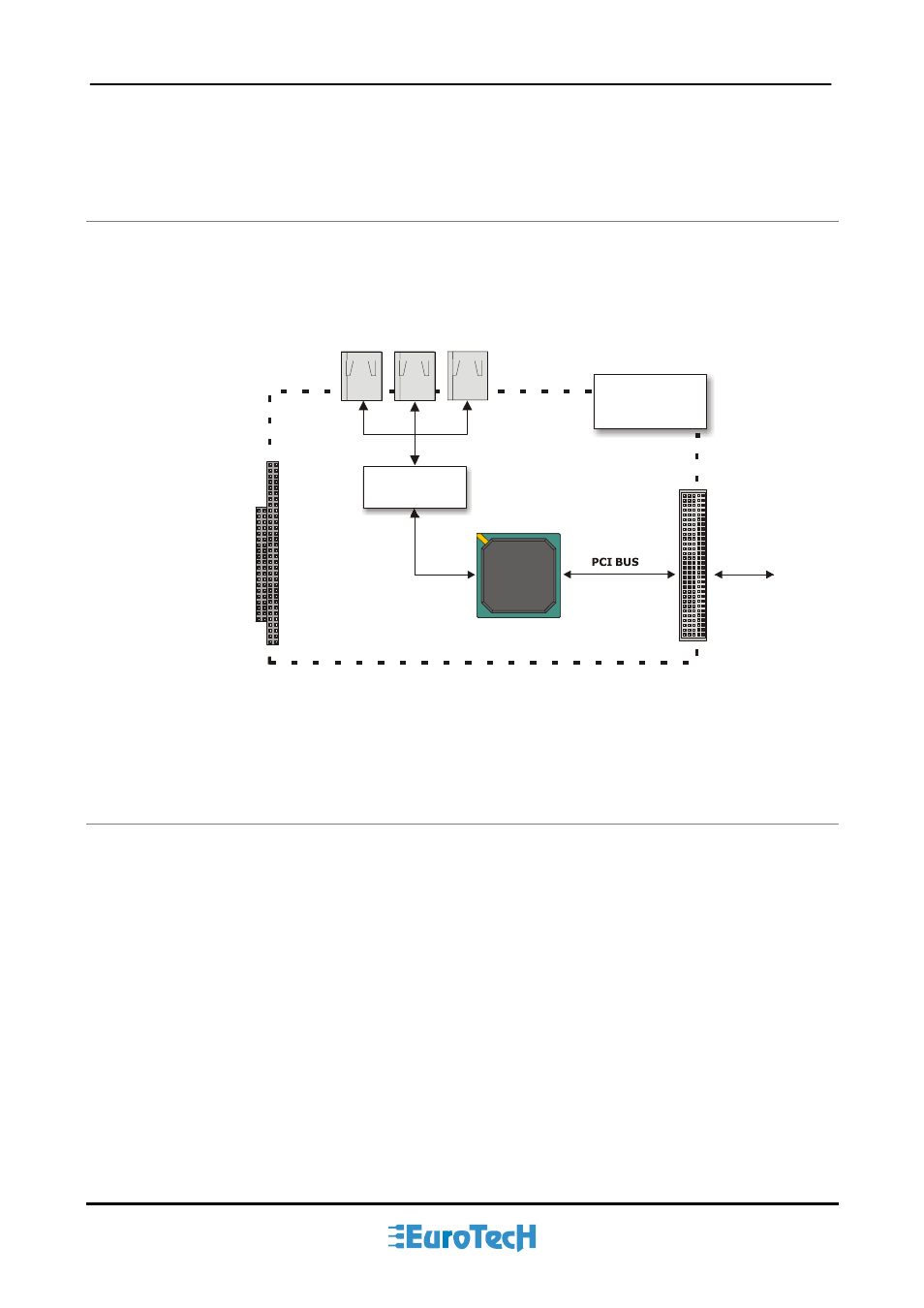

The figure below shows the functional blocks diagram of the module.
TSB41LV03A
PCI BUS
ISA BUS
(For pass
through only)
signal
CTR-1460
Module
Firewire3 Firewire2 Firewire1
Physical
Interface
Link
Interface
PCI4450
Figure 1.
Functional blocks of the COM-1460 module
Product Definition
COM-1460 PC/104-Plus Module characteristics
PC/104-Plus Form Factor: 90 X 96 mm (3.6”X3.8”), height 15 mm (0.6”)
PCI/ISA compliant with the PC/104-Plus standard
3 Firewire connectors
1 External Power Connector
Low power consumption.
High reliability.
