42
Stack Projection
Setting up the Stack Projection
Basic

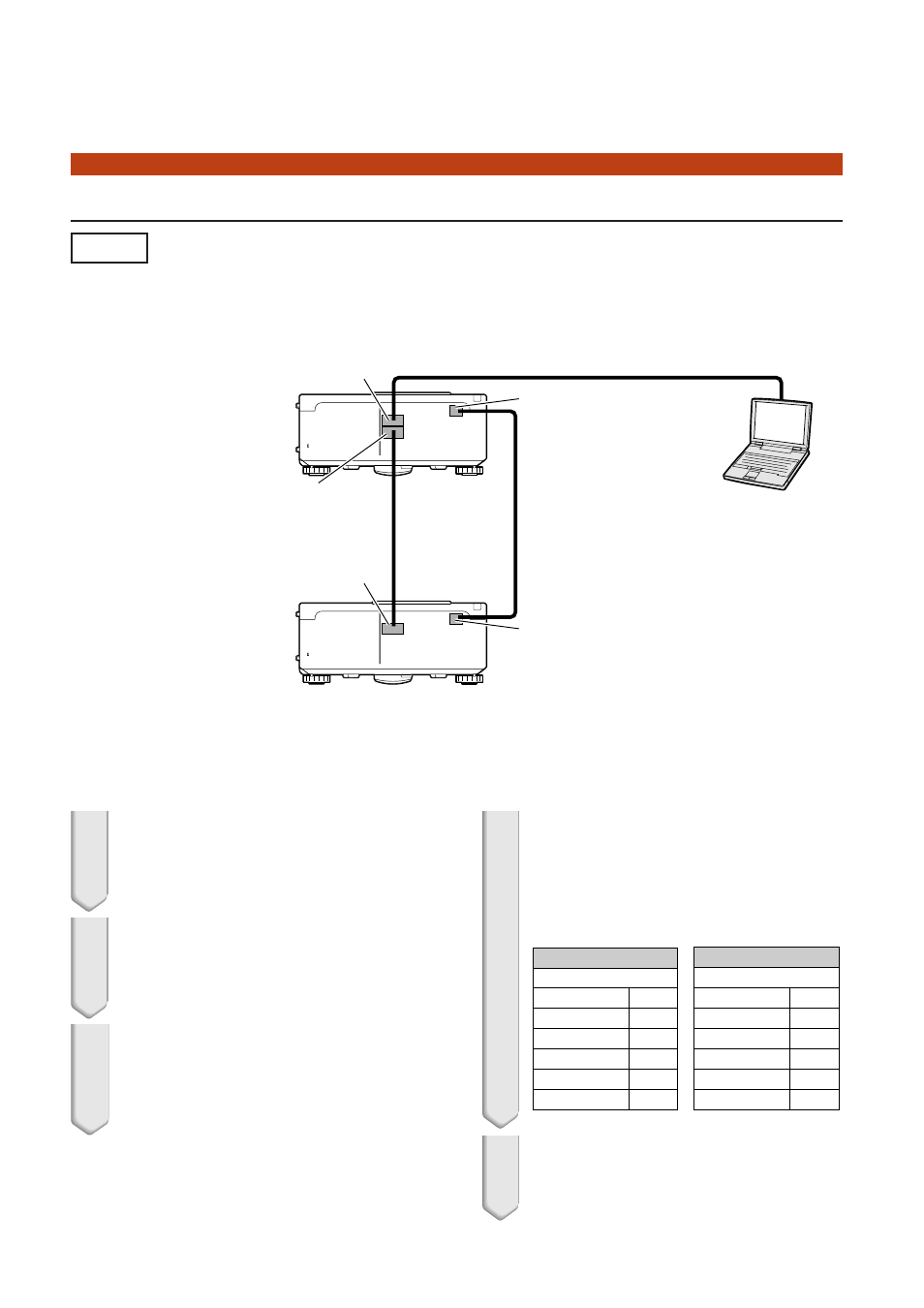

This part shows an example for setting up the stack projection of a computer image with two projectors.
Projector 1: Master
Projector 2: Slave
RGB cable
RGB
cable
MONITOR OUT (FOR COMPUTER/
COMPONENT1, 2) terminal
COMPUTER/COMPONENT1 terminal
COMPUTER/COMPONENT1 terminal
LAN terminal
LAN terminal
Computer
LAN cable
(cross-over type)
1
Set the “Stack Setting” of the pro-
jector 1 to “Master”.
(See page 62 on the owner’s manual of the
projector.)
2
Set the “Stack Setting” of the pro-
jector 2 to “Slave”.
(See page 62 on the owner’s manual of the
projector.)
3
Perform “Pair Stack” of the both
projectors.
(See page 63 on the owner’s manual of the
projector.)
4
Select inputs as specified in the
table below.
(See page 63 on the owner’s manual of the
projector.)
5
Turn off the both projectors.
Master
Set Inputs
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
COMPUTER1
COMPUTER2
DVI
HDMI
VIDEO
S-VIDEO
COMPUTER1
COMPUTER2
DVI
HDMI
VIDEO
S-VIDEO
Slave
Set Inputs
Projector 1 Projector 2
