5-3 Matrix 3200/6400 Series • Upgrades and Troubleshooting
Matrix 6400 Audio BME Internal Access

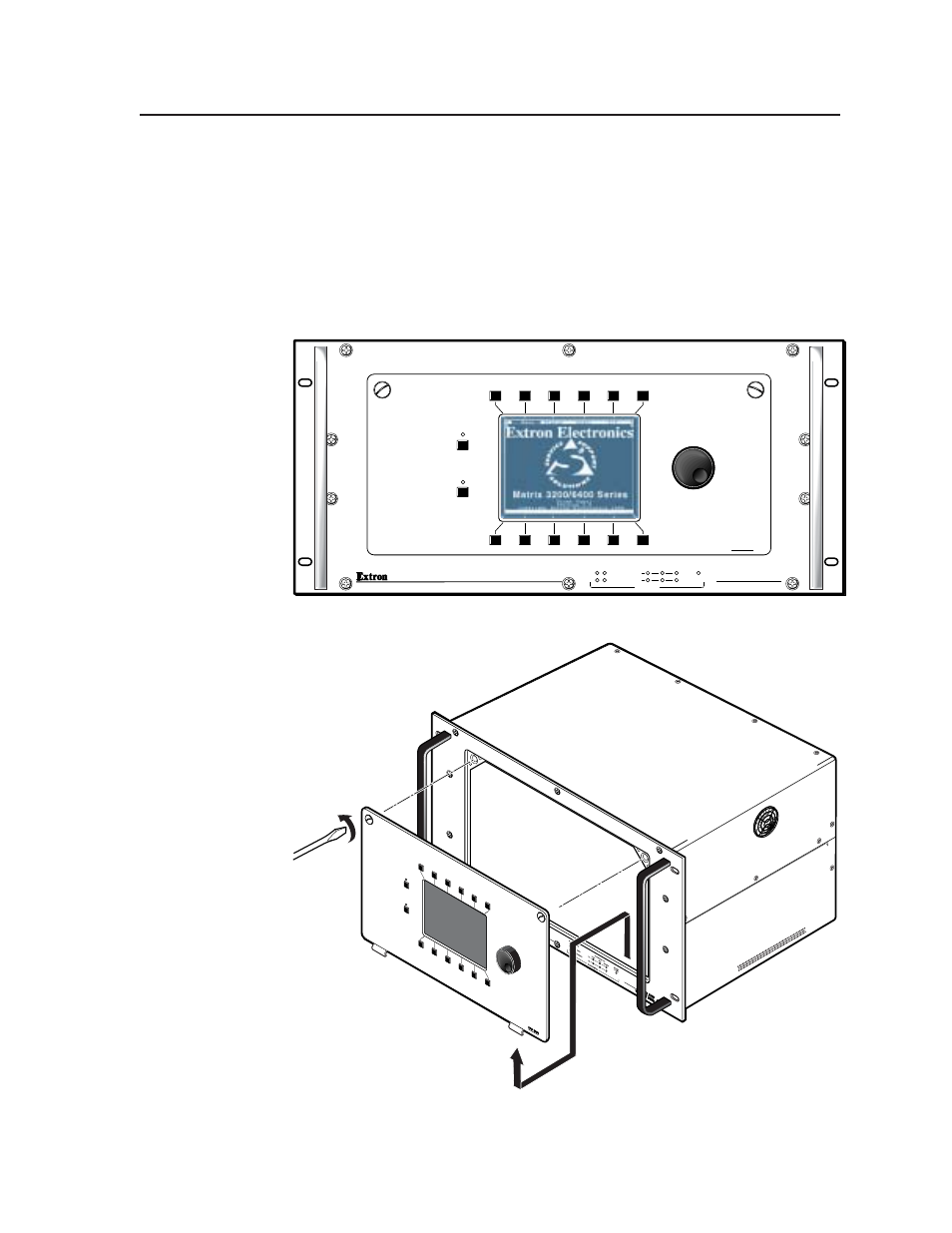

Upgrades or repairs may require access to internal areas of the Matrix 6400 Audio
BME. This involves removing the front access panel (blank or FPC-1000) using a
coin or a flat blade screwdriver to rotate the two captive screws (Figure 5-2.A) as
shown in Figure 5-2.B. Pull the top of the access panel out slightly then lift up and
remove it from the front panel. The FPC-1000 will have a cable connecting it to the
Main Controller, unplug the connector.
When done, reverse the procedure to reinstall the access panel.
