2-7 Matrix 3200/6400 Series • Installation

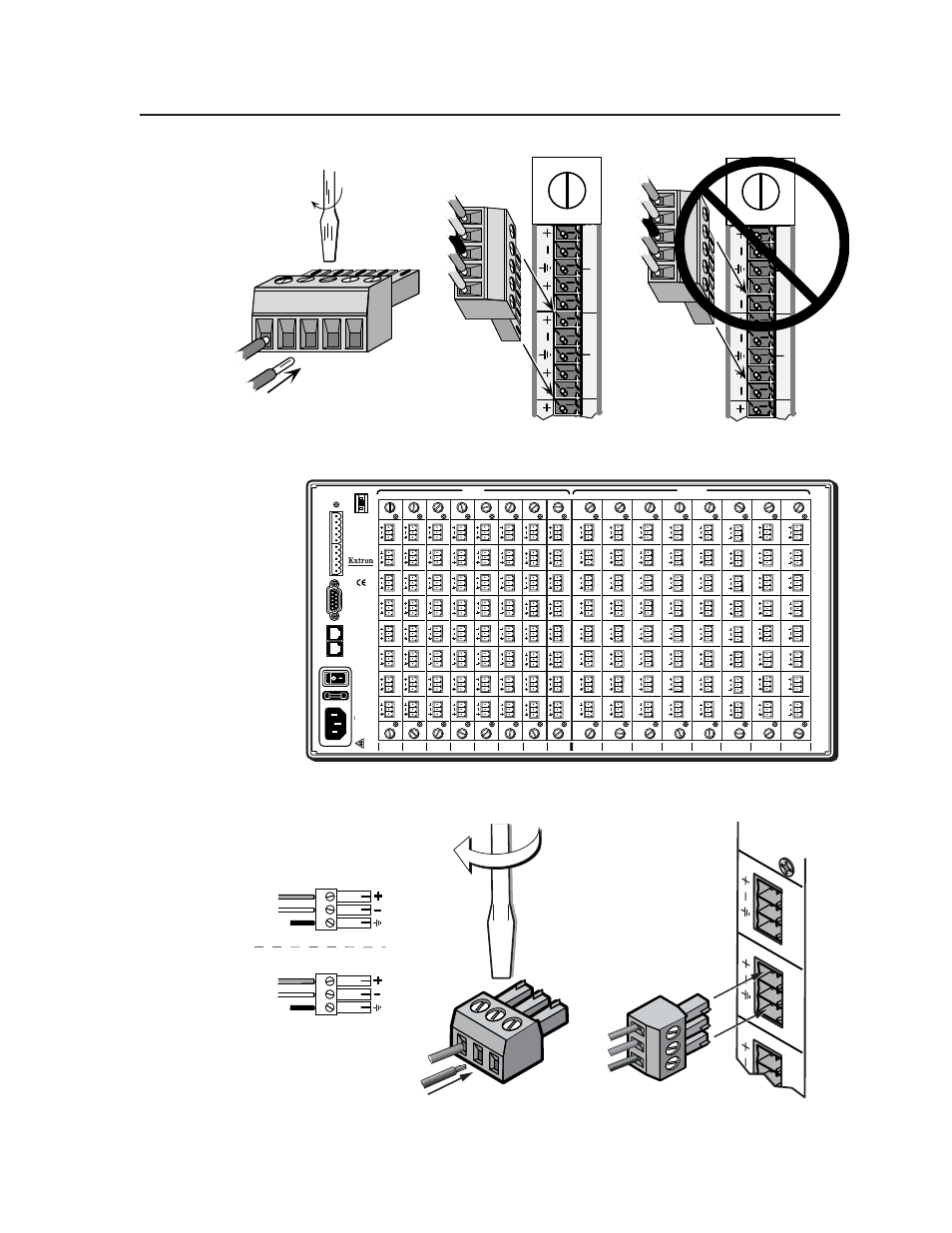

Figure 2-4.D Align the stereo audio connectors before plugging them in.
L
R
L
R
IN
L
R
L
R
IN
Ring
Tip
Sleeve
Mono Input
Ring
Tip
Sleeve
Mono Output
Figure 2-5.B Connecting mono input and output audio connectors
