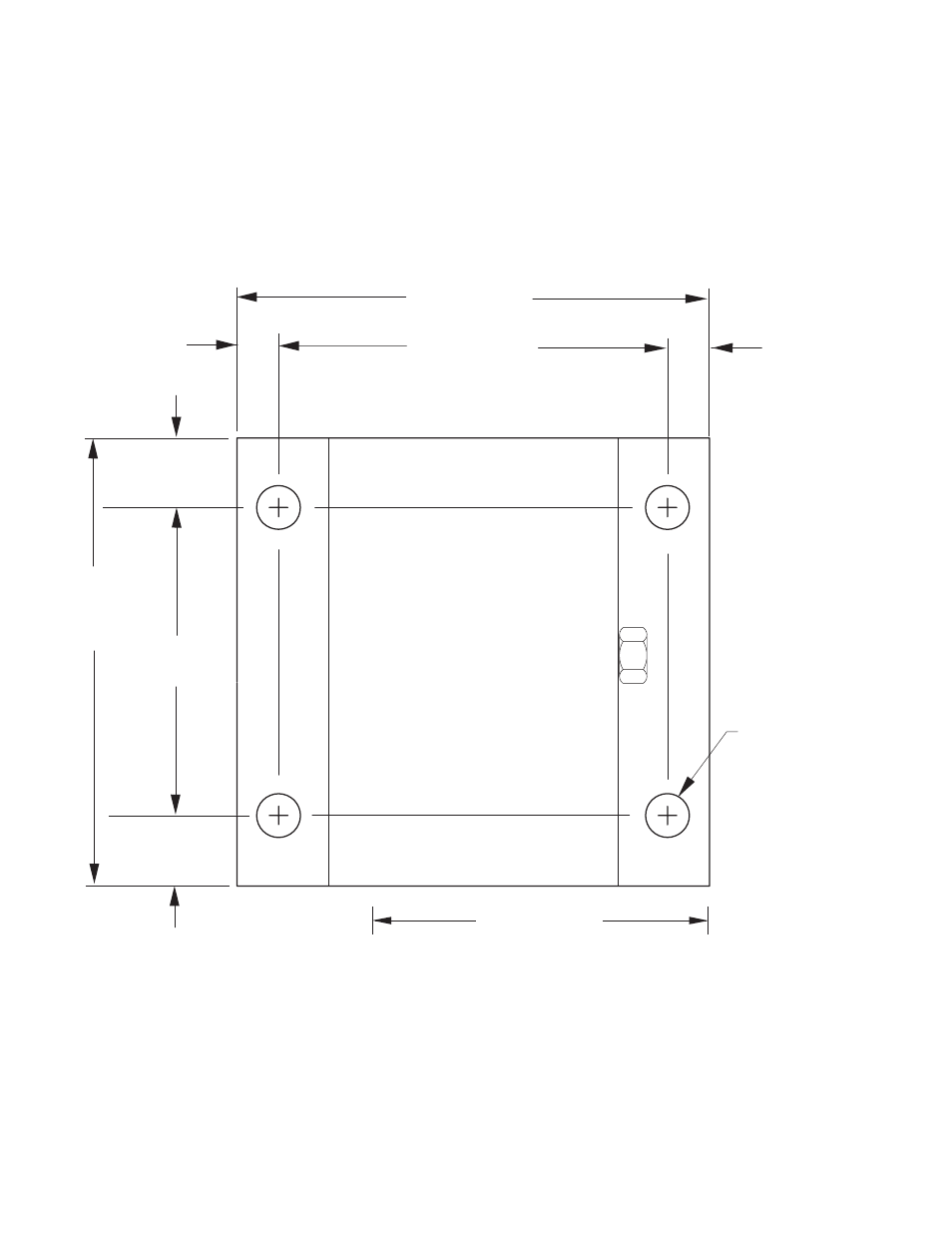

9.3 Wall Bracket
See Section 5.6.7 for Mounting Instructions.
46
3.47 in
(88.3 mm)
0.38 in
(9.7 mm)
0.38 in
(9.7 mm)
4.22 in
(107.3 mm )
2.76 in
(70.0 mm)
0.62 in
(15.8 mm)
0.62 in
(15.8 mm)
4.00 in
(101.5 mm )
4X Ø 0.38 in
(9.65 mm)
3.0 inch standard
(76.2 mm)
Verify this dimension before using this template.
When printing this PDF template make
sure to deselect "Fit to page" option.
FULL SCALE
