Energy-saving table lamp TL1710

English - 44

Model A

Remove both screws (1) with the protective sleeve (2) and the

counterprofile (3) from the U-bolt on the lamp base.

Put one of the screws (1) through one of the protective sleeves (2) and

guide both from the outside through one of the two holes in the lampshade.

Hold the counterprofile (3) from the inside in front of the hole and guide the

screw (1) through.

Then turn the screw (1) in the corresponding hole on the U-bolt of the lamp.
Repeat the process with the second screw and the second protective

sleeve.

Screw the supplied bulb into the bulb socket (5).

1 Screw
2 Protective

sleeve

3 Counterprofile
4

Position of
lampshade

5 Socket

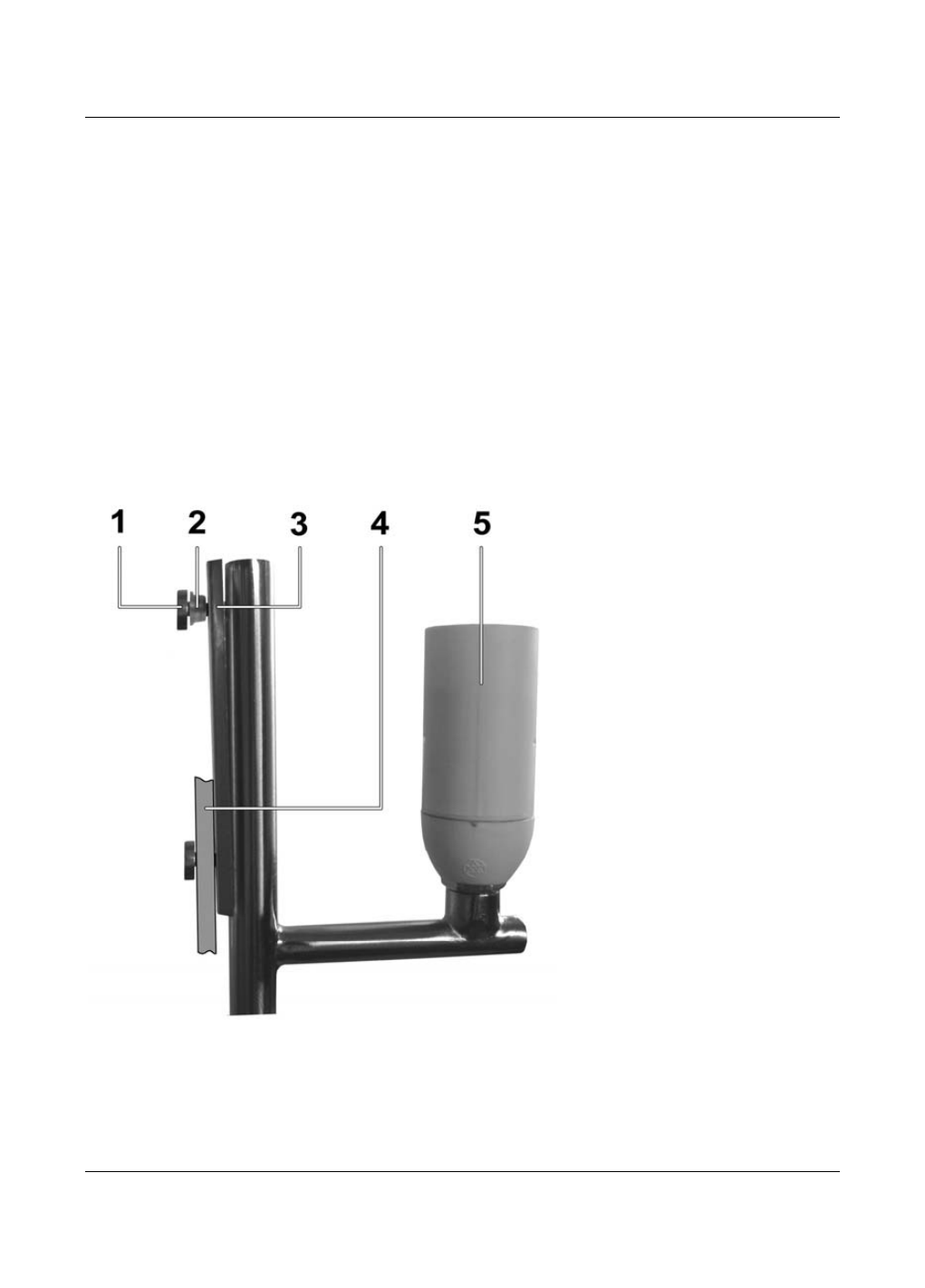

Figure: Lamp type A, Detailed figure of the screw joint
