Welcome 7

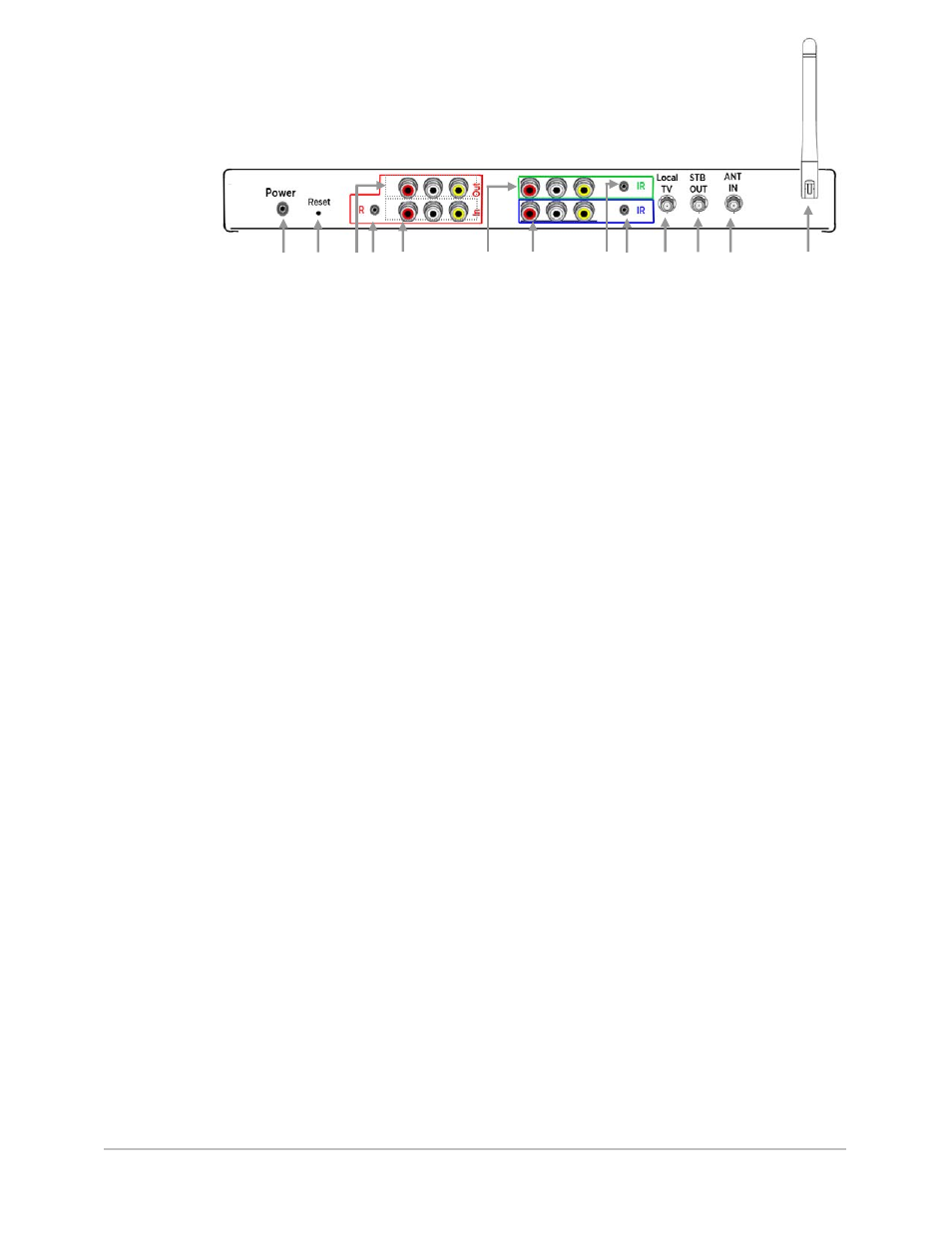

What’s on the Back Panel?
1. Power
The AC adapter plugs in here – only use the adapter that
came with Xtender!
2. Reset Button Pushing this button resets Xtender to its factory default
settings
3. Red Channel Input Composite Video (Yellow) and Stereo Audio (Red/White)
input to Xtender – whatever you plug in here will appear
on the Red channel throughout the house
4. Red Channel IR Output A cable with a stick-on infrared emitter on the end is
plugged in here and the IR emitter is stuck onto the front
of your a/V device so Xtender can send it commands
from your wireless remotes – Cables available in the
optional wiring pack.
5. Red Channel Video Output This is used to pass a composite video/stereo audio
signal from your A/V device to a local TV
6. Green Channel Input Whatever you plug in here will appear on the Green
channel throughout the house.
7. Blue Channel Input Whatever you plug in here will appear on the Blue
channel throughout the house.
8. Green Channel IR Output A cable with a stick-on infrared emitter on the end is
plugged in here and the IR emitter is stuck onto the front
of your A/V device so Xtender can send it commands
from your wireless remotes – cables are available in the
optional wiring pack.
9. Blue Channel IR Output A cable with a stick-on infrared emitter on the end is
plugged in here and the IR emitter is stuck onto the front
of your A/V device so Xtender can send it commands
from your wireless remotes – cables are available in the
optional wiring pack.
10. Local TV Out Coax cable output used for watching Cable/Antenna
programs or Xtender channels on a TV located near
Xtender. Note that if this output is used then one
Xtender remote must be dedicated to this TV – see
programming the remote.
11. Antenna Out Coax cable output used for connecting DVR, TiVo, Cable
Box or anything else that needs Cable/Antenna input.
Note that Xtender channels are not available on this
output.
12. Antenna IN Coax cable input – this must be connected directly to
the Coax wall outlet or run directly to the
SuperCombiner.
13. Antenna Swivel antenna allows Xtender to communicate with
remote.
1 2 3 4 5 6 7 8 9 10 11 12 13
