Logos Imaging EPIX Scanner
User Manual 8
EPIX SCANNER LASER SCANNER

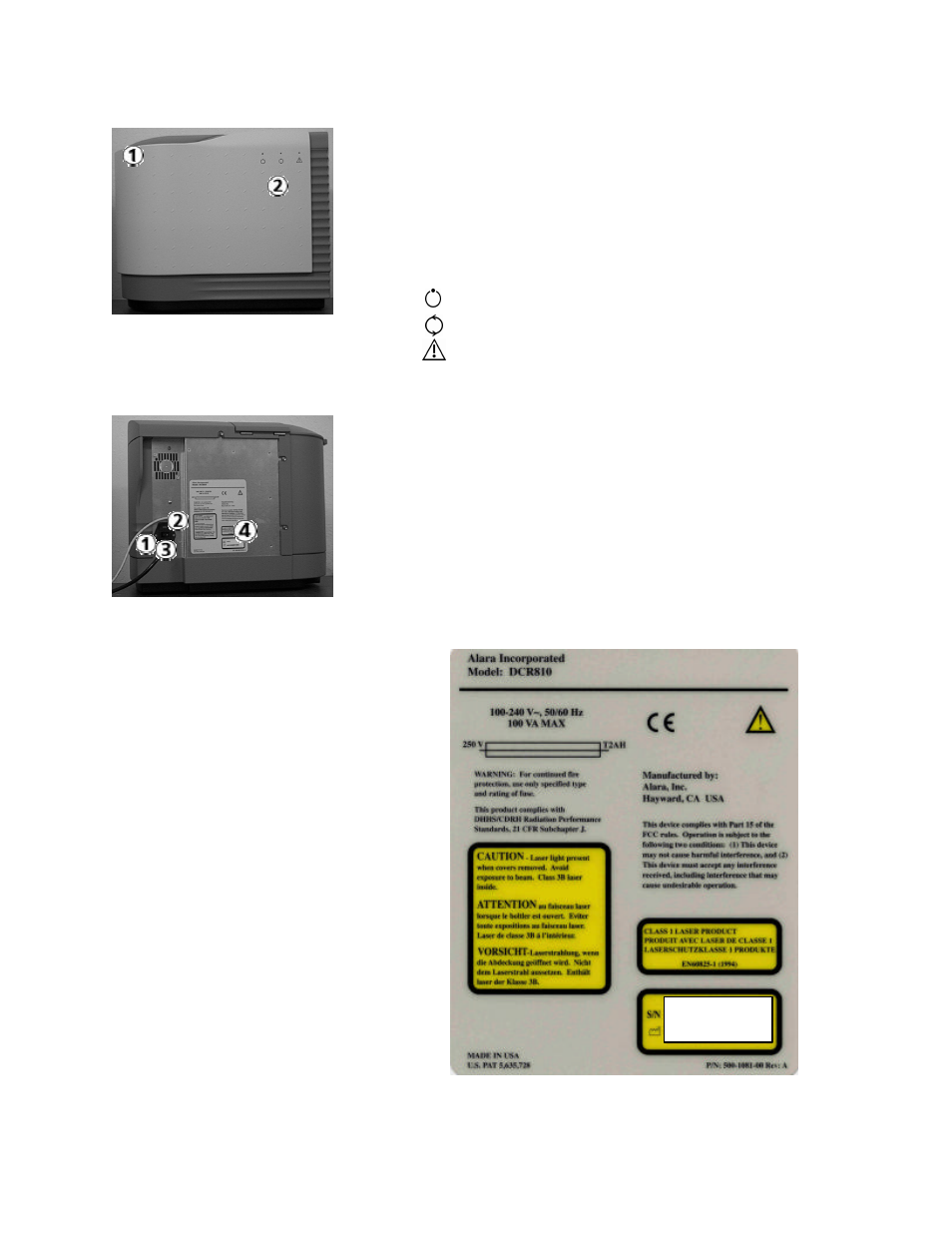

Figure 3-1 Scanner Front View
• Carousel well and lid. The carousel, with imaging plates
attached, is inserted into the carousel well for scanning. The
carousel lid must be in the closed position prior to scanning. The
scanner will not operate with the lid open.
‚ LED indicator lights with graphic symbols.
The lights show the current status of the system.
Green — Ready to scan
Yellow — Scanning
Red — Error
Figure 3-2 Scanner REAR View
• EPIX SCANNER power entry module with switch and fuses
‚ USB connectors. A USB cable (provided) connects the EPIX
SCANNER to the CPU’s USB port.
ƒ Power cord socket. The power cord (provided) will be
connected from this point to a grounded main outlet.
„ Scanner label
„
1XXX
DECEMBER 2002
