INSTALLING THE COOKER HOOD
electrolux 21
EN
Splashback (OPTIONAL)
The Splashback must be fi tted before
fi xing the hood body and, if it is to be
fi xed at both top and bottom, must
be fi tted at the correct height prior to
installing the bases. As this operation
is rather complex, it should be carried
out either by the kitchen installer or a
qualifi ed person who knows the fi nal
dimensions of the units.
For fi xing at the top only, proceed as
follows:
• Rest the back panel on the base,
inserting the lower plate between the
upper surface and the wall, centring it
on the vertical reference line.
• Mark the centres of the two holes in
the upper plate.
• Drill ø 8 mm holes at all the centre
points marked.
• Insert the wall plugs (not supplied) in
the holes.
• Fix the brackets using the screws (not
supplied).
• Fix the back panel (where present)
using the screws (not supplied).
Note: If the hood is to be installed onto
a hollow construction or plaster or
partition board wall then special fi xing
screws will be required (not supplied).

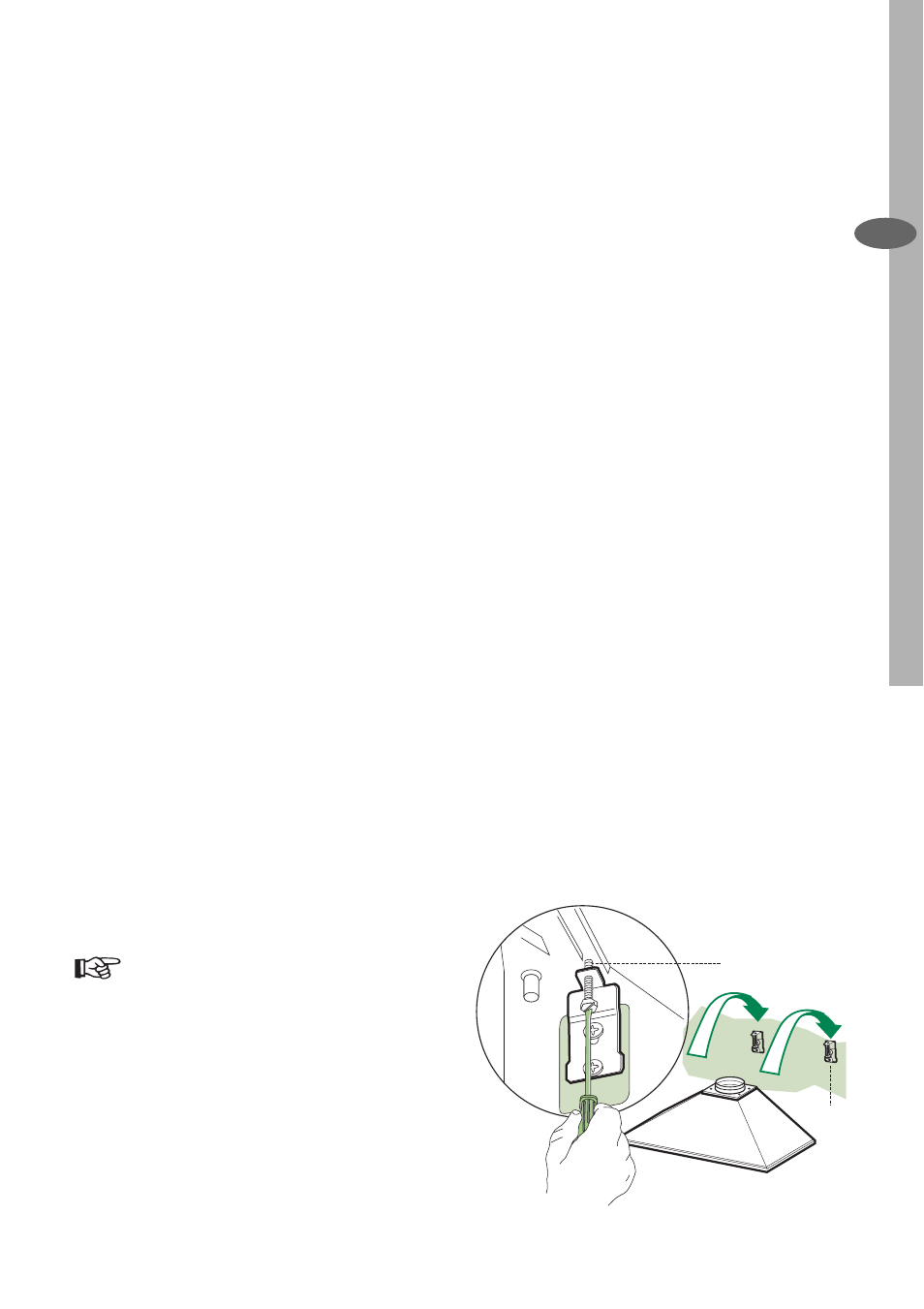

Fitting the Canopy Hood
• Screw the two screws item 12d
supplied onto the brackets 7.1.
• Hook the hood body onto the bracket
7.1, centring it around the vertical
line.
• Use the adjusting screws item 12d
underneath the hood to level the hood
body
7.1
12.d
