18 electrolux INSTALLING THE COOKER HOOD
EN

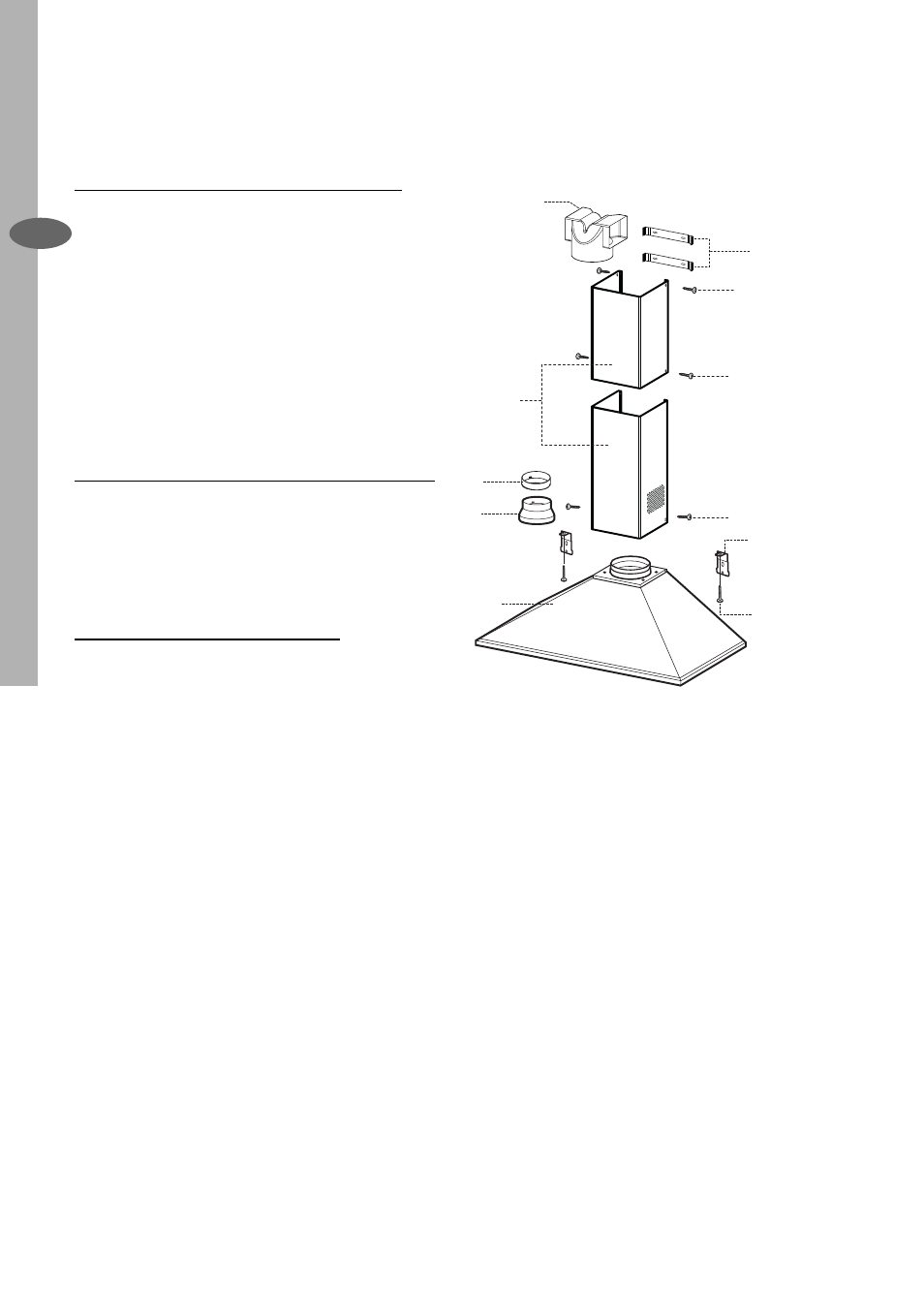

The cooker hood is made up of the
following components:
Ref Qty Product Components
1
1 Hood body, complete with
controls, lighting, fan and
fi lters.
2 1 Telescopic Chimney
comprising:
2.1 1 Upper section
2.2 1 Lower section
9 1 ø150-120 Ducting spigot
10 1 ø120-125 Ducting fl ange
15 1 Air outlet connector
Ref Qty Installation Components
7.1 2
Hood body fi xing brackets
7.2.1 2 Upper chimney wall fi xing
brackets
12c 6 Chimney fi xing screws
12d 2 Screws M4x25
Ref Qty Documentation
1
Instruction booklet
1
9
12c
12c
12c
12d
7.2.1
15
2
2.1
2.2
7.1
10
