P/2 DA4xi/6xi • User’s Guide

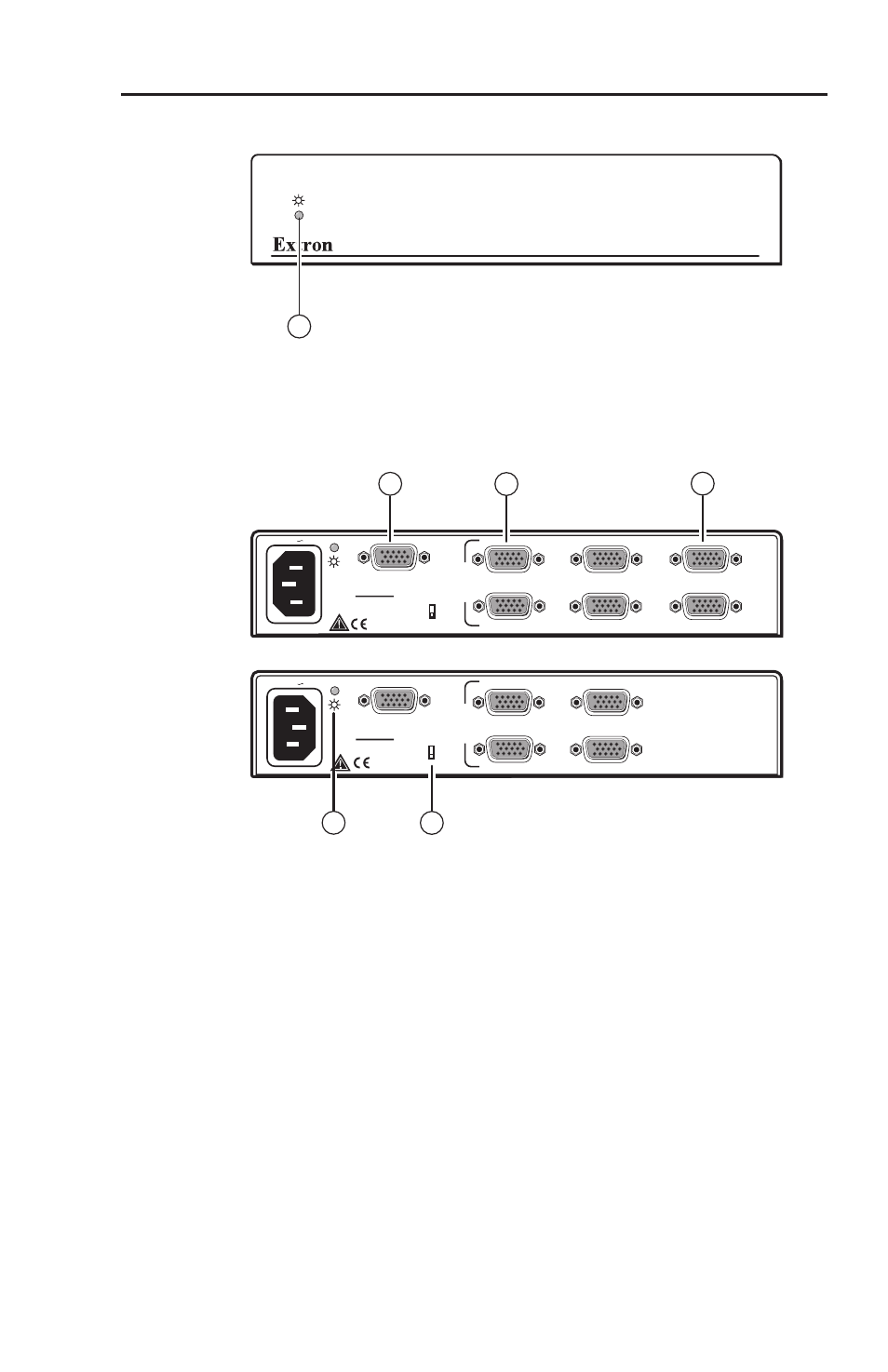

Front panel indicators
VGA DISTRIBUTION AMPLIFIER
1
a
Power LED — A green LED indicates that the distribution
amplifier is receiving power.
Rear panel features
P/2 DA4xi
P/2 DA6xi
100-240V 0.2A
INPUT
P/2 DA6xi
VIDEO GAIN
1V
.7V
(LOCAL MONITOR)
2
1 3 5
4 6 OUTPUTS
50/60 Hz
100-240V 0.2A
INPUT
P/2 DA4xi VIDEO GAIN
1V
.7V
3
(LOCAL MONITOR)
2
1 3
4
50/60 Hz
OUTPUTS
1 2
3 4 5
a
Power LED — A green LED indicates that the distribution
amplifier is receiving power.
b
Video Gain sliding switch — Used for installations with long
output cable runs, the 1.0 V (up) position gives a brighter
picture. The default Video Gain setting is 0.7 V (down).
c
Input connector — Connect the input cable (using VGA-UXGA
signals) to this 15-pin HD female connector.
d
Local Monitor connector — Connect a local monitor to this
15-pin HD female connector for loop-through capability. ID bits
on pins 4, 11, 12, and 15 from the input are passed through to
this connector.
e
Output connector — Connect the output device to this 15-pin
HD female connector.
5 P/2 DA4xi/6xi • User’s Guide
