149
Maintaining and Transporting the Printer | 149

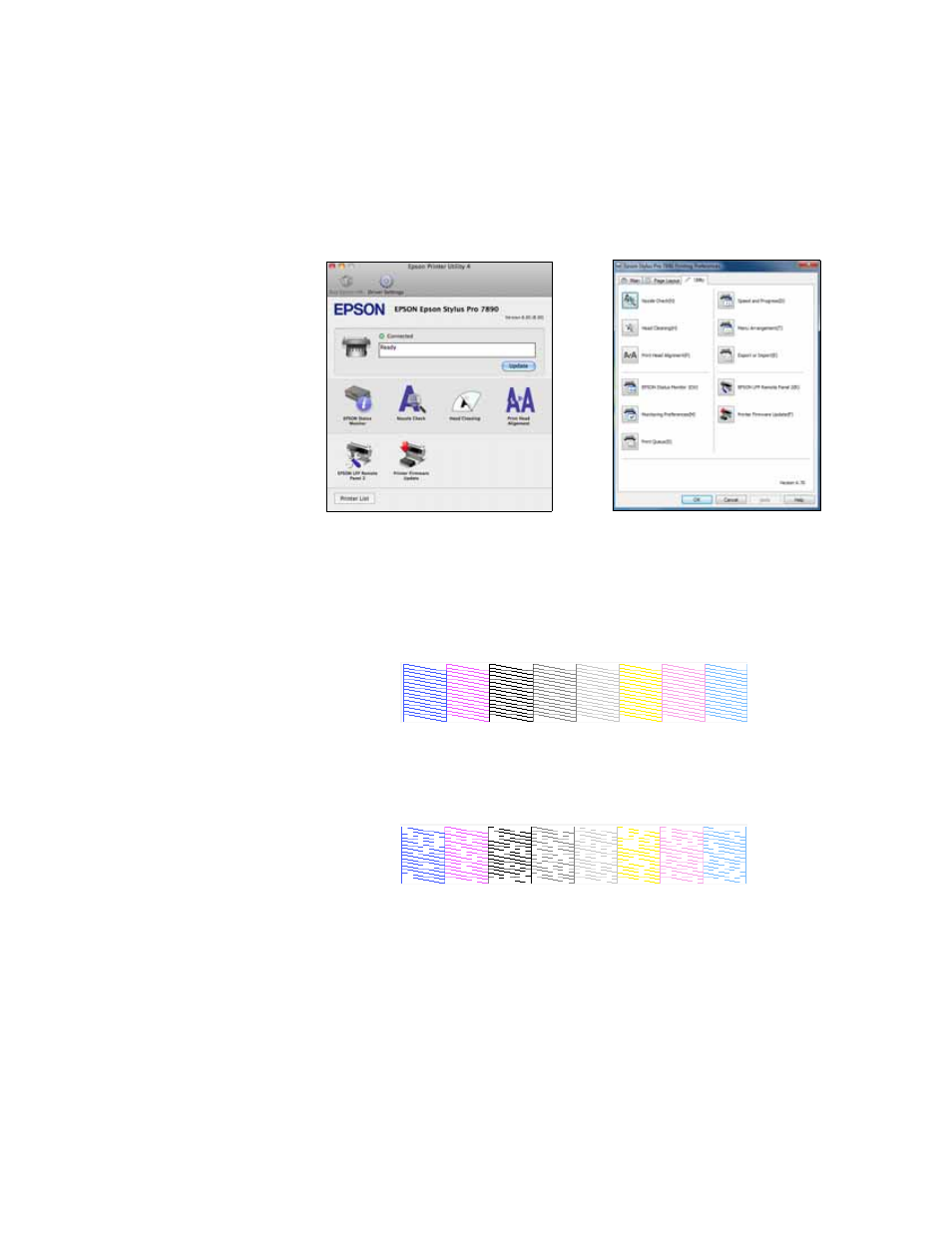

You see a menu like the following:
3. Select the Nozzle Check icon and follow the instructions on the screen.
4. After the pattern is printed, use at least a 10 × eye loupe to examine it.
• If the pattern looks good, as shown below, the print head is clean.
• If any dots or segments are missing or deflected, as shown below,
run a cleaning cycle as described on page 151. Then print another
nozzle check pattern to make sure the nozzles are clean.
• If the nozzles are still clogged after three cleaning cycles, run a power
cleaning cycle as described on page 151.
Windows Mac OS X
Caution: Don’t run a
cleaning cycle while
thick media is loaded in
the printer.
