14

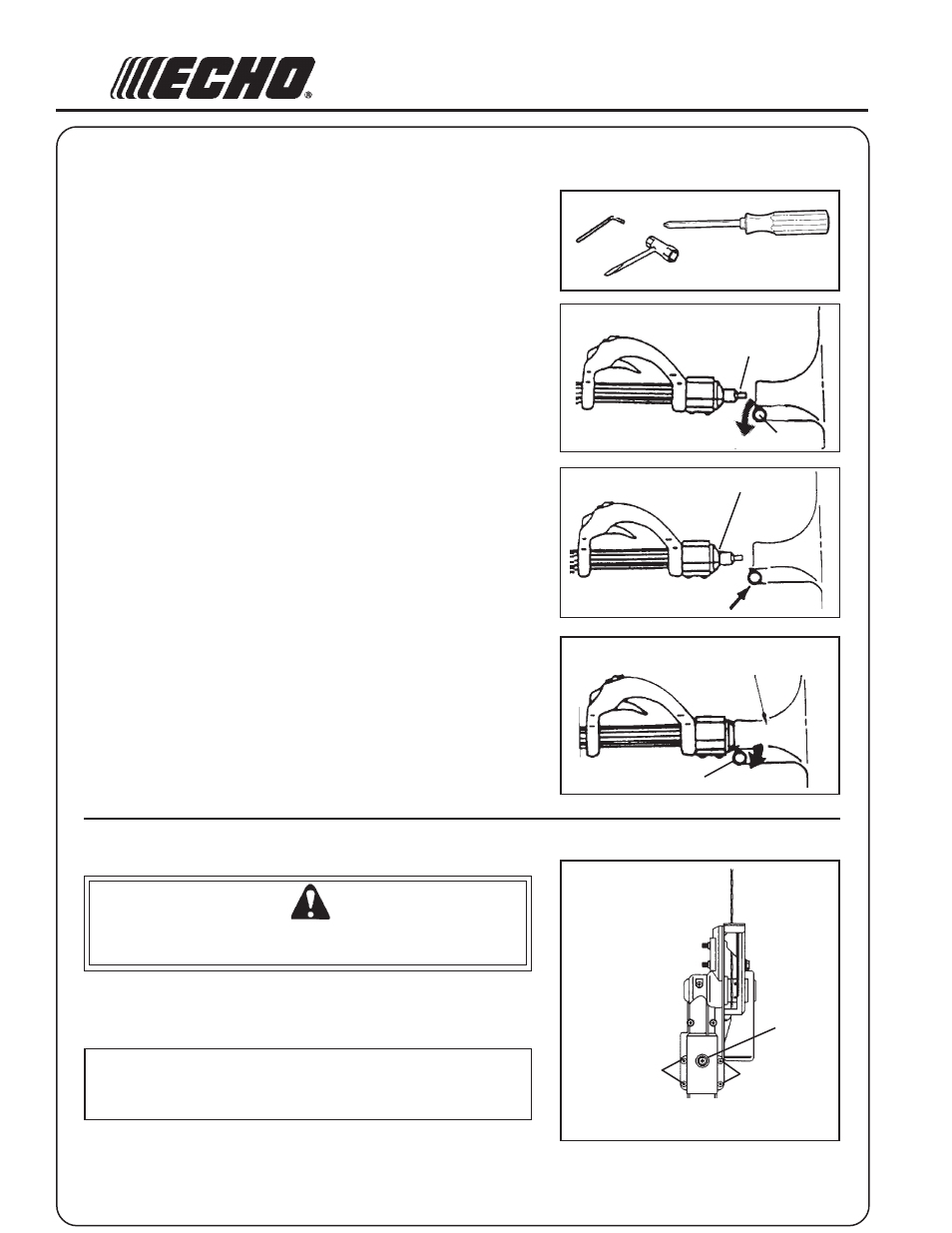

1. Loosen bolt (A).
2. Match square socket in engine shaft with square power transmis-
sion shaft (B) and slide together until engine rests against the
machine surface of lower shaft tube housing coupler (C).
3. Rotate lower shaft tube housing to align engine and rear handle
assembly in an upright position.
4. Tighten bolt (A) securely so engine will not rotate on lower shaft
tube.
A
SSEMBLY
SHAFT TUBE / POWER HEAD
Tools Required: T-wrench, 8-10 mm Wrench, Combination L-Wrench
Parts Required: Power Head, Shaft Tube Assembly; Cutting Attach-
ment
B
A
C
FAN HOUSING
E
D D
CUTTING ATTACHMENT TO SHAFT TUBE INSTALLATION
ALIGN & PUSH
BOTTOM
VIEW
WARNING DANGER
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.
1. Loosen the four (4) screws (D) and locator screw (E) on cutting
attachment.
NOTE
Do not remove locator screw (E) completely from cutting attach-
ment, otherwise inner lock nut will come off and be lost.
