7.66 Reassembly of Auger Assembly

NOTE: Before re-assembling, clean impeller
shaft where the auger pulley will be installed
using emery cloth, and lubricate shaft end with
anti-seize.

7.67 Replace Scraper Bar

NOTE: The Scraper Bar is reversible. Inspect
Scraper Bar on snowthrower before ordering a
replacement.

7.68 Gearbox Repair Information

Replace worn or damaged parts. Replace gas-
ket. Use 750369 grease. Torque self-tapping
screw to 15 Ft.Lbs. max.

3) With auger housing sitting on its back insert

gearbox / auger / impeller as an assembly
into place.

2) Check the end of the auger flight. Stamped

into the metal is an “L” on the left side or “R”
on the right as well as the auger width.

4) Reinstall screws to side of housing to

secure the auger bearings.

5) Turn Auger assembly over, put antiseize

compound on impeller shaft before installing
pulley. Torque at 15-20 Ft.Lbs.

6) Reinstall belt and reattach auger assembly

to powerhead. (Section 7.61 or 7.31).

1) Tip snowthrower so that Auger is down and

handles are up.

2) Remove the nuts and carriage bolts holding

the scraper to the housing.

3) The scraper bar is reversible and can be

turned over and reinstalled once before
replacement is required.

4) Reuse carriage bolts and nuts to install

scraper bar.

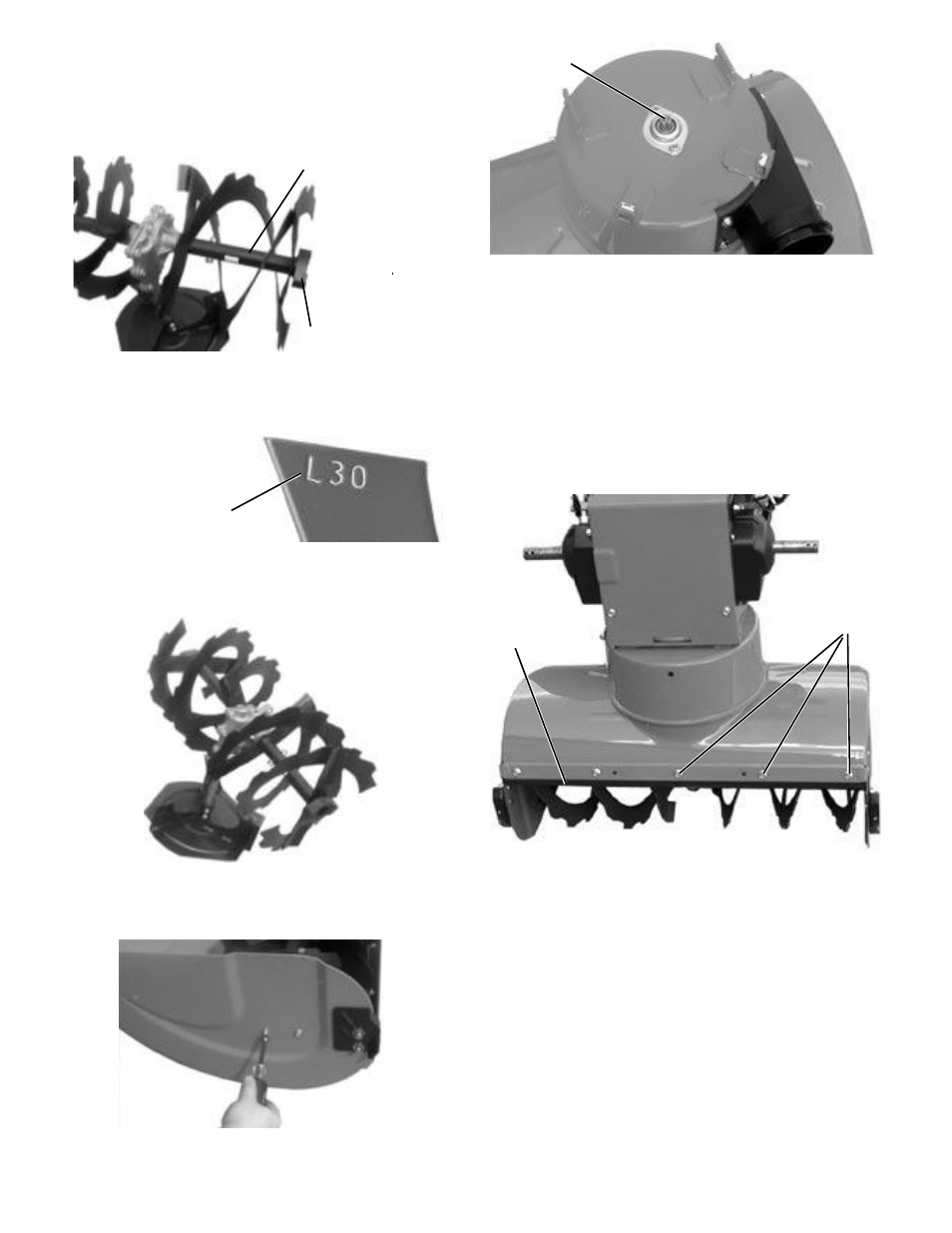

AUGER BEARING

RIGHT SIDE
AUGER

IMPELLER SHAFT

SCRAPER BAR

CARRIAGE BOLTS
AND NUTS

LEFT SIDE AUGER
30" AUGER WIDTH

1) Place auger bearings at ends of auger

with center notch in bearing toward housing
ends.
