Electrolux OHV User Manual

Page 29

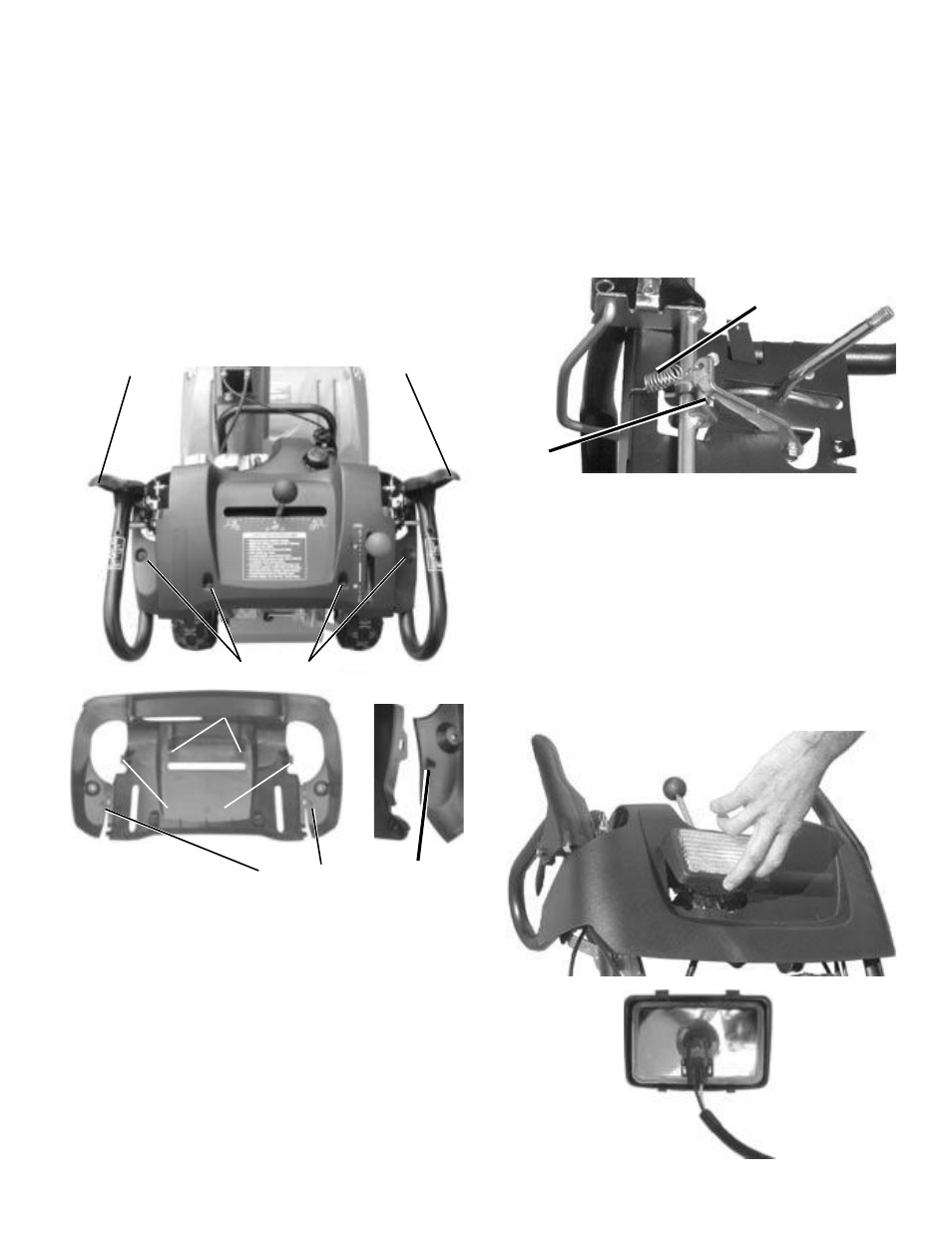

Section 7.11 Remove Console Panel to service
controls and handles.

1) Remove the four 5/16

screws that hold panel to

handle assembly. On re-assembly do not over
tighten.

2) Remove all of the knobs and the Headlight (

See Section 7.13 below).

3) Carefully separate lock tab at each side and

remove control panel from assembly.

4.) Reverse to reassemble. Check picture for

position of tabs and stops on back side of
Console Panel.

Section 7.13 Replace Headlight

Section 7.12 Auger Engagment Interlock
- When the auger and the traction engagement
levers are engaged at the same time, you can
remove your hand from the auger lever and the
auger will remain engaged as long as the traction
lever is also held down. This is to allow the
operator to adjust the discharge chute direction
without stopping. If problems occur with interlock,
check the spring and look for wear on the bracket.
You will see this on the right with the console panel
removed.

* Use two fingers to push up on Headlight Bezel to

release bottom tabs and remove Headlight.

* To remove harness connector, pull tabs on both

sides outward while pulling connector from
Headlight.

NOTE: Light is ‘on’ when engine is running. There

is not a switch. See engine manufacturers
manual for information on charging system.

INTERLOCK
SPRING

CHECK
WEAR
HERE

TABS

STOPS

LOCK TAB INTO HOLE

AUGER
ENGAGEMENT
LEVER

TRACTION
ENGAGEMENT
LEVER

SCREWS

CONSOLE
BACKSIDE VIEW
