FX20 MOTORIZED TREADMILL

Visit us at: www.evofitness.com

ASSEMBLY

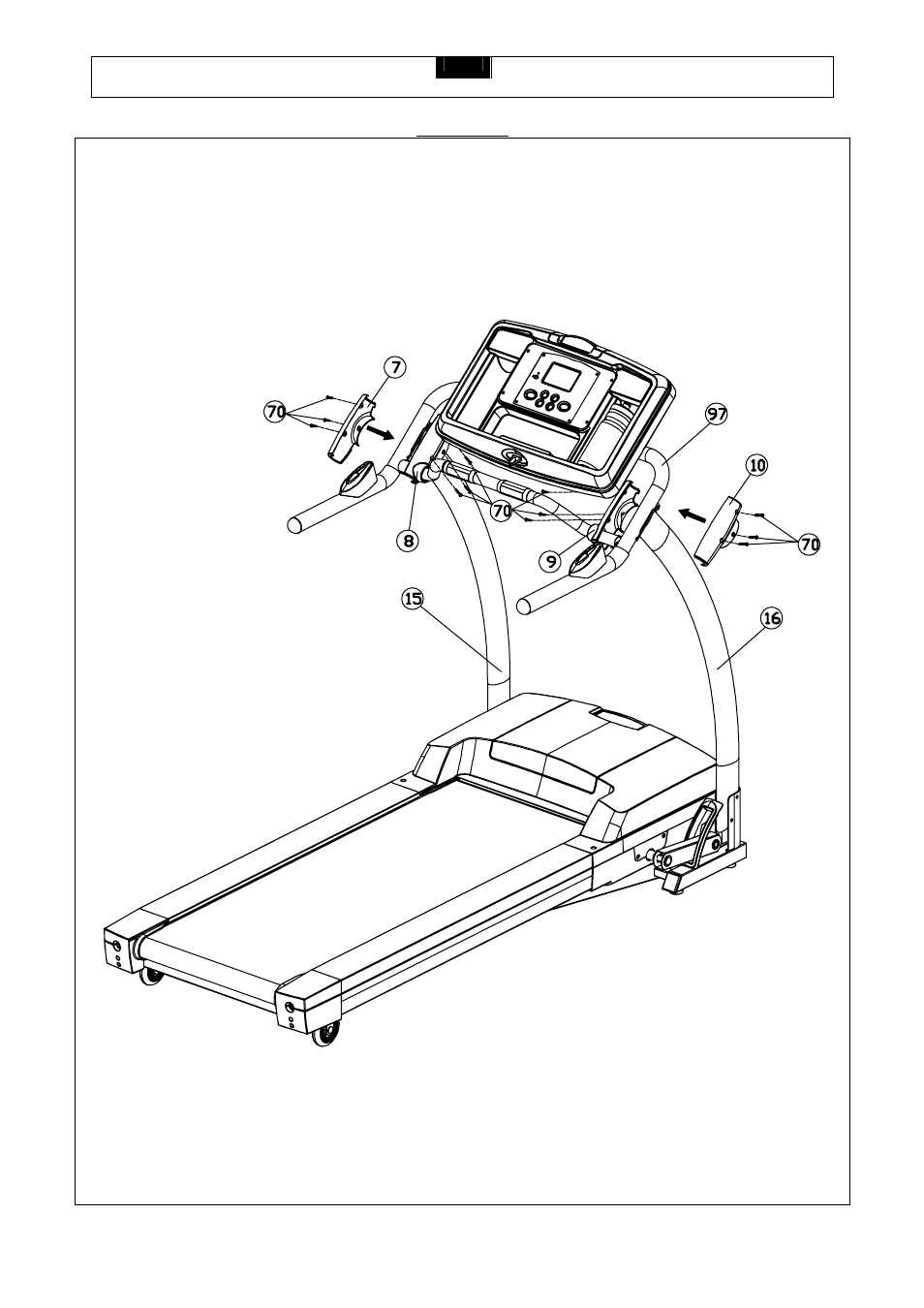

STEP 5:

Attach the Handlebar Cover – Left #1 (7) to the Handlebar Cover – Left #2 (8) and Left Upright (15) using six M4 x 15mm
Screws (70). Attach the Handlebar Cover – Right #1 (10) to the Handlebar Cover – Right #2 (9) and Right Upright (16)
using six M4 x 15mm Screws (70).
