Emerson 20" Color Television 6420FE - Manual (Page 37)

L2701WF 8-2
Input: NTSC Color Bar Signal (with 1kHz Audio Signal)
INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.
reconnect to AC outlet and then turn power on.
(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

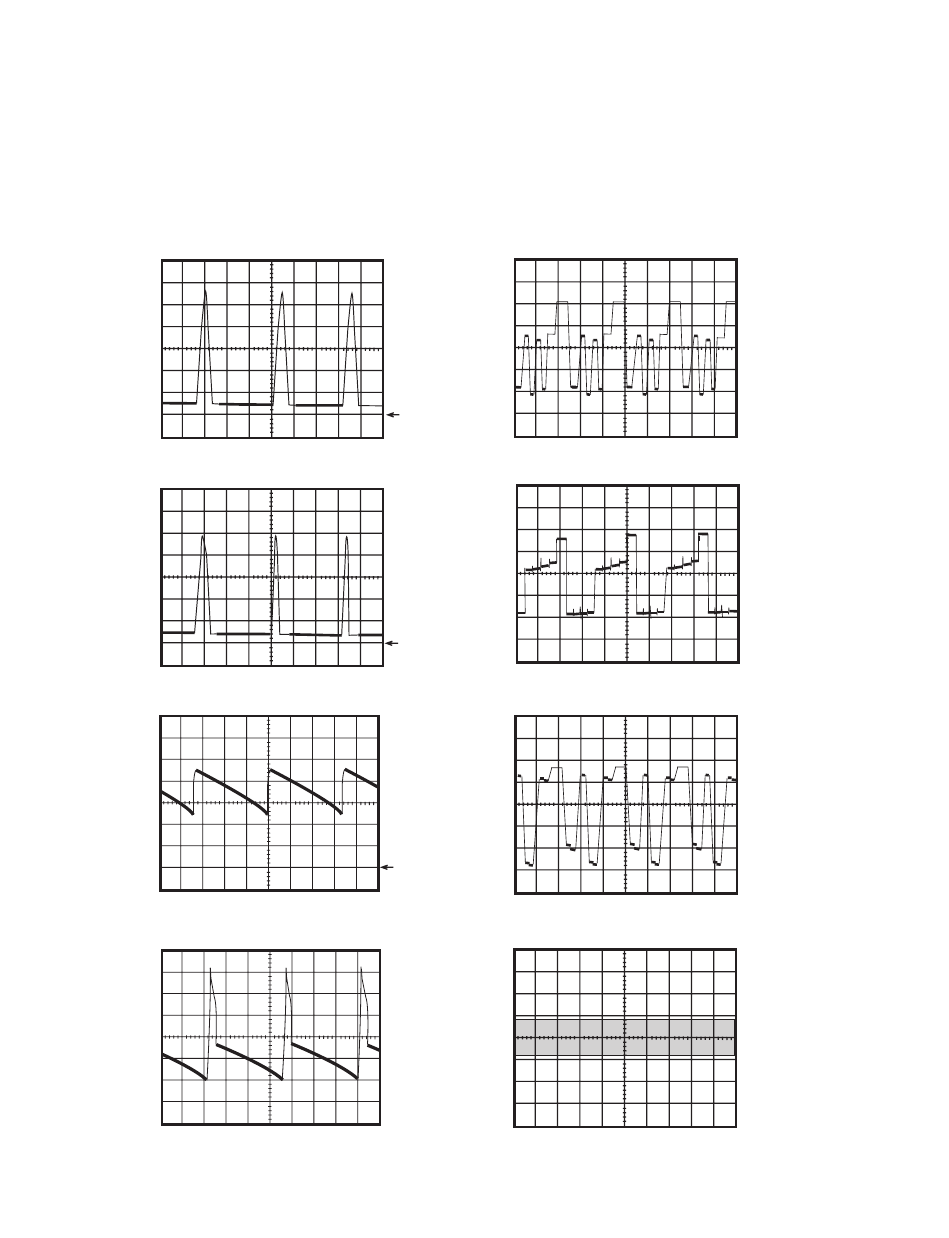

WF1 ~ WF16 = Waveforms to be observed at
Waveform
check points.
(Shown in Schematic Diagram.)
1DIV: 200V 20
µs
CN 571 Pin 1
WF9
GND
1DIV: 5V 20 µs
WH501A Pin 3
WF10
GND
1DIV: 10V 5ms
CN 571 Pin 4 WF12
1DIV: 20V 20 µs
Q 1521 Collector
WF14
1DIV: 20V 20
µs
Q 1531 Collector
WF13
1DIV: 20V 20
µs
Q 1511 Collector
WF15
1DIV: 0.2V 20 µs
TU 11 Pin 8
WF16
1DIV: 1V 5ms
IC 551 Pin 7 WF11
GND
