EXCELL PRECISION CO., LTD
.
FM User Manual
SME300000119
9
1
2
3
4
5
6
7
8
9
Load cell cable
Shield
Load cell
EXC+
SEN+
SIG+
SIG-
EXC-
SEN-

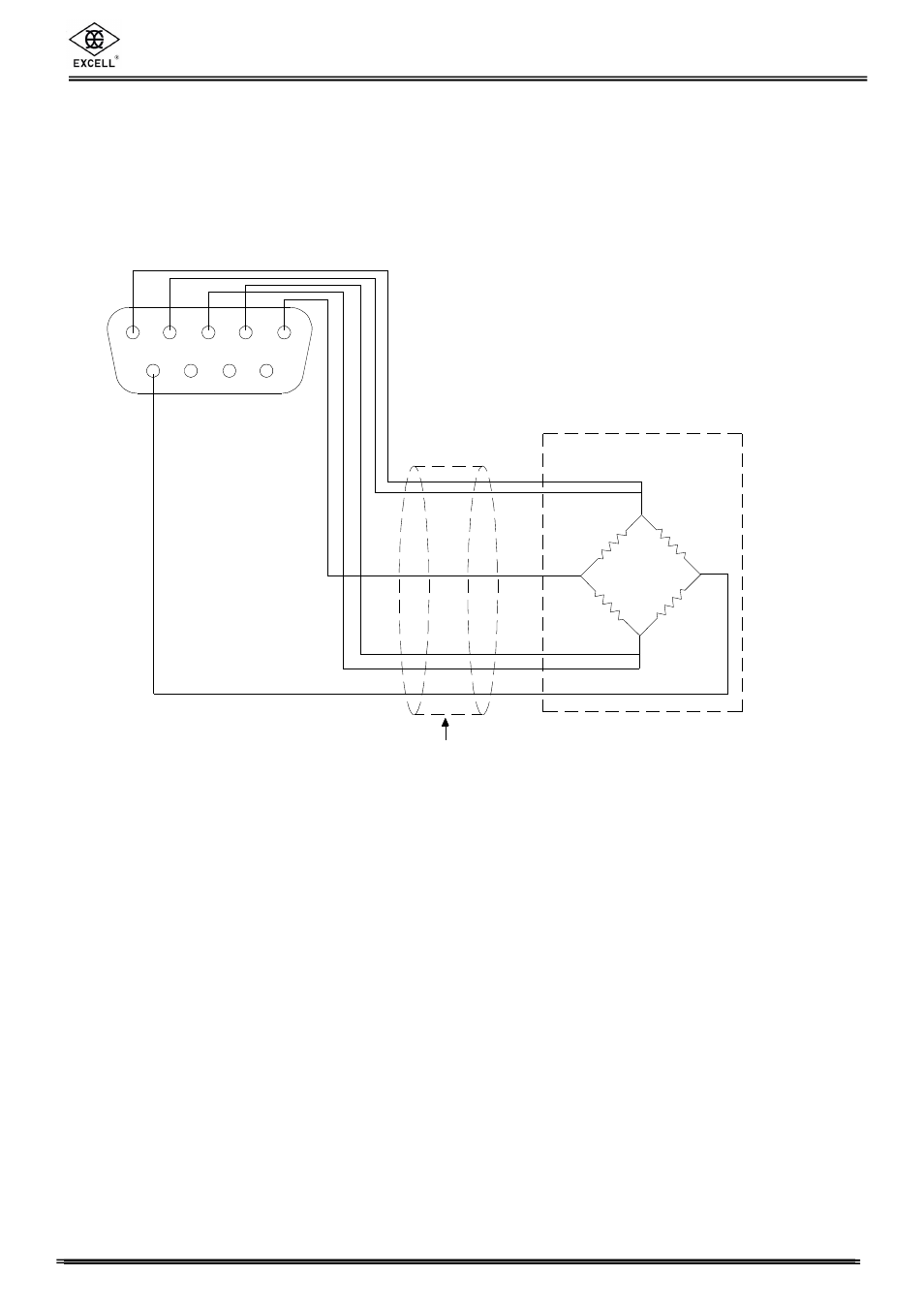

4-1 Load Cell
4-wired (5-wired) Load Cell
Short Pin4&5 to connect with EXC+
Short Pin2&3 to connect with EXC-
Pin1 connects with SIG+
Pin9 connects with SIG-
Pin6, 7, 8 connect with Shield
6-wired (7-wired) Load Cell
Pin5 connects with EXC+
Pin4 connects with SEN+
Pin3 connects with EXC-
Pin2 connects with SEN-
Pin1 connects with SIG+
Pin9 connects with SIG-
Pin6, 7, 8 connect with Shield
