EverFocus ECOR264-4D1 - Manual (Page 80)

72
4.8 DISPLAY SETTING

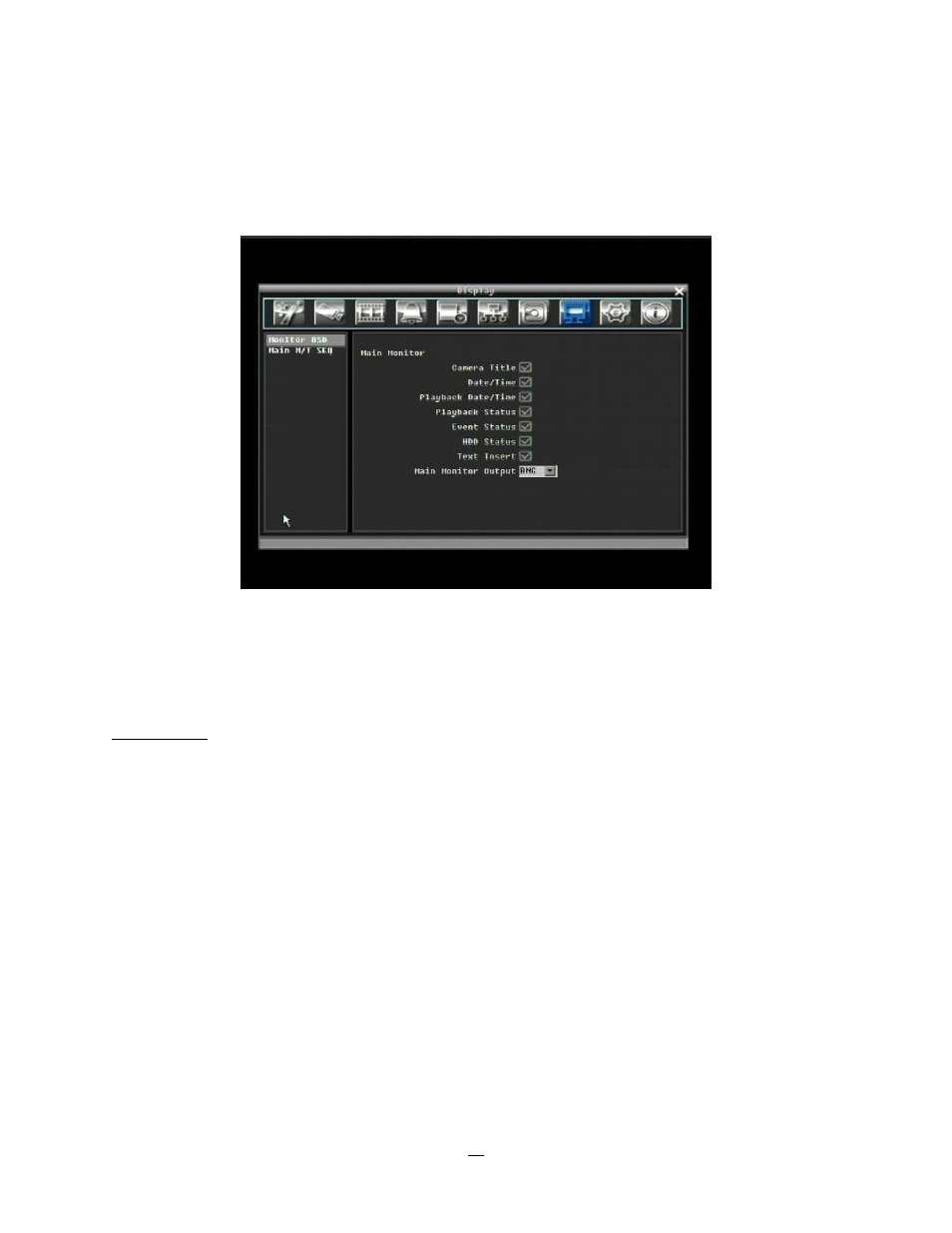

Figure 4-28 is a screen shot of the DISPLAY SETTING MENU. This menu will walk you through the Main
Monitor On-Screen Display (OSD) and Main Monitor Sequential setup.
Figure 4-28 Display Menu – Monitor OSD
4.8.1 Monitor OSD
These are the display options for the Main Monitor.
Main Monitor
Camera Title: Check the box to display camera titles.
Date/Time: Check the box to display current date/time.
Playback Date/Time: Check the box to display playback date/time.
Playback Status: Check the box to display playback status.
Event Status: Check the box to display event status.
HDD Status: Check the box to display hard drive status.
Main Monitor Output: This system supports both VGA and BNC monitor displays at the same time , but
only one of them can have optimized display quality. Use this feature to select which output is optimized.
