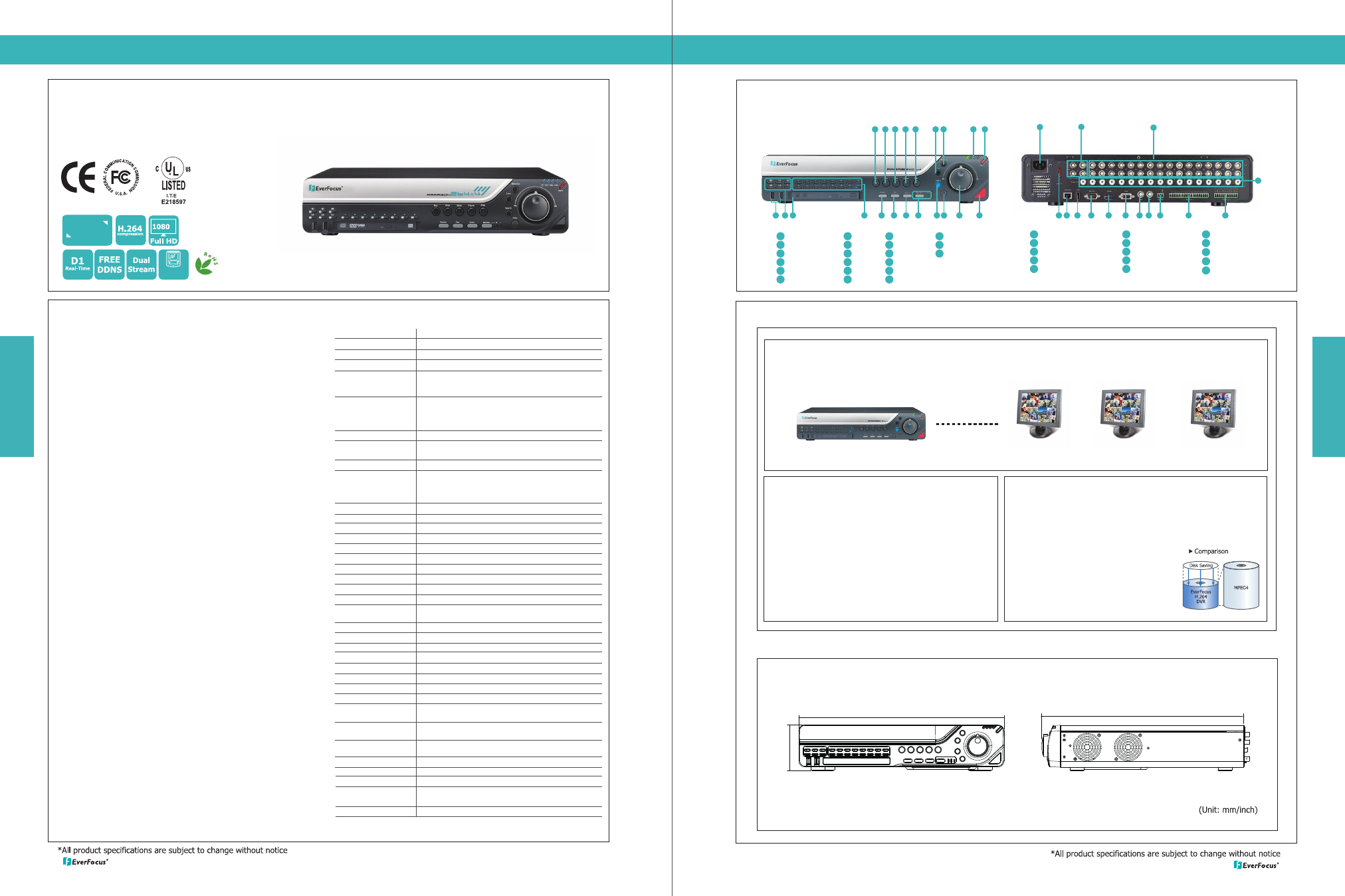

EverFocus DVR Paragon264 - Manual

55
56
Features Specifications
Major Operating Controls
Digital Video Recorders
Paragon264 DVR w/480 FPS D1 Real Time, H.264 & HDMI/1080i
Digital Video Recorders
Paragon264 DVR w/480 FPS D1 Real Time, H.264 & HDMI/1080i
*Front & back panel controls
vary depending on models
H.264 Compression Technology
H.264 compression technology is considered to be
approximately 1.5 times more efficient as compared
to MPEG4. Using this advanced method,
the Paragon264 DVR delivers maximum
image clarity together while conserving
both disk space and LAN/WAN
transmission bandwidth.
Real Time Recording at D1
Dual streaming allows local recording of 480 FPS at D1 resolution and remote IP viewing over LAN or WAN at CIF
resolution to conserve bandwidth.
Full HD Video Output
Paragon264 has true 1080i with an entire megapixel of
resolution allocated to main monitor display. NTSC is
1/3 of a megapixel and the NTSC quad shows each
camera at CIF (4CIF=D1). The HDMI has 4x the detail
to show 4 cameras at nearly full NTSC resolution.
Digital output delivers stunning images from any
resolution and enhances motion reproduction to deliver
smoother and clearer looking video.
16CH
30FPS (D1)
recording
16CH
30FPS (D1)
playback
16CH
30FPS (CIF)
second stream
+ +
Paragon264 Series DVR
16 Channel w/480 FPS D1 Real Time, H.264 & HDMI/1080i Display
Advantages
Dimensions
430 mm / 16.9”
88
mm
/
3.5”
410 mm / 16.2”
Front View Side View
• 480 FPS real-time recording & playback at D1
• H.264 compression format conserves disk space & bandwidth
HDMI Video Output (1080i)
• 3 independent monitor support
• Main monitor: Simultaneous VGA, composite & S-Video output
• Call monitor: additional composite output with multiplex and/
or sequenced views
• Simultaneous main streaming (480 FPS@D1) & second
streaming (Up to 480 FPS @ CIF)
• Pentaplex Operation (Simultaneous live view, recording,
playback, archiving and remote viewing)
• User friendly Graphical User Interface (GUI) menu
• Supports eSATA
• Supports mobile monitoring with HTTP streaming
• Multiple Control Inputs: mouse, front panel, IR remote
controller & optional EKB500 keyboard
• Built-in DVR time recording calculator for quick
recording estimation
• Express Setup: menu option for quick & easy installation
• Express Archive using USB drive or DVR burner
• Express Playback & Search: Simply point, click and drag
the playback bar to view previous recordings
• Remote configuration support from the built-in web interface
• Gigabit Ethernet interface for remote network viewing & control
• On-screen PTZ control via mouse or front panel
• 2 Hot Swappable HDD or 4 internal HDD
• 3 USB 2.0 ports (2 on front panel, 1 back) for video archive &
mouse usage
• Multi-language support
• Watermark capabilities to identify intentional modifications
of recorded data
• Rack mountable
• Free EverFocus DDNS service
HDMI
Model Number
Channel
Compression Format
HDMI Video Output
Recording & Playback
Resolution
Recording & Playback
Rate
Mobile Viewing
Pentaplex Operation
Video Input
Video Output
Audio In/Out (RCA)
Recording Mode
Playback Search
Alarm In
Alarm Out
Video Pause
Video Loss Detection
Motion Detection
Event Log
Watch Dog Timer
HDD
Built-in DVD Burner
User Interface
OS
Network
Supported PTZ Protocal
Control PTZ via OSD
USB
Schedule Setting
User Access
RS-232
RS-485
Power Source
Power Consumption
Dimensions (L x W x H)
Weight
Operating Temp.
EPARA264-16X4
16
480/400 FPS at D1
480/400 FPS at 2CIF
480/400 FPS at CIF
(NTSC/PAL)
16 looping BNC
16 Inputs/1 Output
H.264
Yes
NTSC: 704x480 / PAL: 704x576 (D1)
NTSC: 704x240 / PAL: 704x288 (2CIF)
NTSC: 352x240 / PAL: 352x288 (CIF)
Yes with HTTP streaming
Simultaneous Live, Recording, Playback,
Archive and Remote Viewing
Main monitor #1 HDMI 1080i single or multiple camera
view, Main monitor #2 VGA/BNC single or multiple
camera view. Call monitor single camera full screen
with switching on alarm
Manual, Event, Schedule
By Date/Time and Event
One N.O./N.C. input per BNC camera input
4 Form “C” relays
Yes
Yes
Yes
Yes
Yes
2 Hotswappable/
4 Internal, 1 eSATA
Slim type DVD Burner (optional)
Graphical User Interface (GUI)
Embedded Linux
Gigabit Ethernet/TCP-IP/DHCP/PPPoE/DDNS/3GPP
EverFocus, Pelco D, Pelco P, Samsung, Transparent
Yes
3 USB ports (two 2.0 Front Panel, one 1.0 Back Panel)
Supports Express and Advanced Schedule Setting
Local login (optional) w/3 user privilege levels;
remote login required
Receive commands from Host to control DVR &
POS data from POS interface
Receive commands from Host to control DVR,
EKB500 to control DVR, Send out commands to PTZ
100VAC~240VAC
180W
430 x 410 x 88 mm / 16.9" x 16.2" x 3.5”
9.8 kg / 21.6 lbs (hot-swap w/HDDs),
10.4 kg / 23 lbs (internal w/HDDs)
0°C~40°C / 32°F~104°F (20~80% humidity)
DVRs
DVRs
*Models vary in different countries. Please visit your EverFocus regional website for
detailed ordering information.
Front Panel Design
Back Panel Design
1 USB Port
2 Display Mode
3 DVD-RW Burner
4 Channel Key (1~16)
5 Display
6 Sequence
7 Zoom
8 Monitor
9 Record
10 Stop
11 Back
12 Pause
13 Play
14 Enter
15 Search
16 Menu/ESC
17 Copy
18 Shuttle
and Jog Dial
4 15 18 20 17 5 6 7 8
9 10 11 12 13 14 16 21 19
2 3 1
19 System LED
20 Remote Control
21 Alarm
1
2
3
5
6
7
8
9
10
11
12
13
14
15
1
4
2
12 9 6 5 7
3
4
8 13 14 10 11
15
Call Monitor Out
RS485 Connector
Alarm In
Alarm Out
Audio In/Out USB Slot
RS232 Connector
HDMI Output
VGA
Main Monitor Out Main Power Plug
Matrix Output x4
Video Input and Looping
eSATA
Network Connector
Mobile
Viewing
