EVID™ C4.2
Perfect for conventional rooms. It has excellent
bandwidth in an esthetically very unobtrusive
installation profile. Its compact design fits in
tight areas. Its 4-inch woofer and waveguide-
coupled, titanium-coated dome tweeter give
smooth, wide frequency response.The enclo-
sure is ported and tuned to provide surprising
bass response in such a compact package.
Features an easy 3-point mounting system for
quick installations.
EVID C8.2
The C8.2 has a specially tuned enclosure and 8-
inch woofer to provide amazing bass response.
The 1-inch waveguide-coupled tweeter give
smooth controlled coverage out to 20 kHz. Perfect
for installations where a flush-mount design is
desired but demand for high-quality audio exists.
Features a 4-point mounting system to make instal-
lations fast and easy.
EVID™ C8.2LP
The C8.2LP is the same as the C8.2 but in a
low-profile installation package. Ideal for tight
ceiling spaces.
EVID™ C8.2HC
The EVID C8.2HC is ideal for high ceilings and
reverberant “problem” rooms. Its exclusive ported,
waveguide-coupled, 8-inch driver provides excel-
lent intelligibility and definition.The 8.2HC’s
patent-pending design provides great coverage
control throughout the voice range and above. No
other ceiling speaker system provides the combi-
nation of excellent pattern control, wide band-
width, high power handling, and compact design
like the C8.2HC.
EVID™ C10.1
The C10.1 packs a 10-inch subwoofer in a tuned
high performance enclosure to give amazing
low frequency performance down to 45Hz! It is
one of the few quick-mount ceiling TRUE sub-
woofers available. Flexible installation and pow-
erful low-end performance make it the ideal
mate to any EVID ceiling model.
Packing List (Figure 1)
Figure Quantity Part
A 2 Speaker system
B 4 Tile rails
C 2 C-ring support
D 2 Grille
E 1 Owner’s manual
F 4 Support ring screws
G 2 Terminal connector
H 1 Service center card
I 1 Cutout template
J 2 Paint Shield
2 EVID™ Ceiling Series Installation and Operation Manual
Model Summary/Packing List
A (x2)
E
G (x2)
C (x2)
H
D (x2)
F (x4)
B (x4)
I
J (x2)

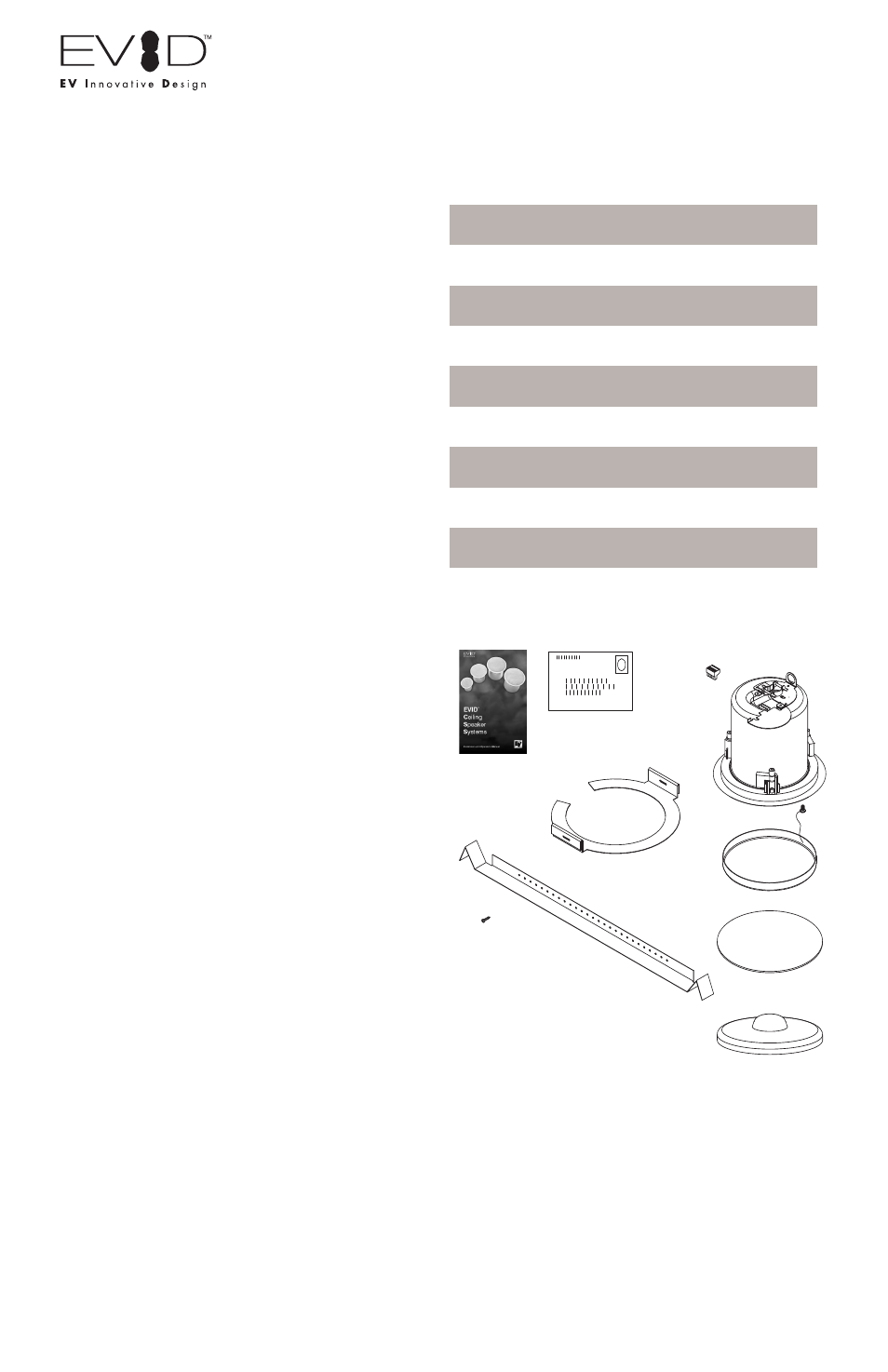

Figure 1: EVID packing list
