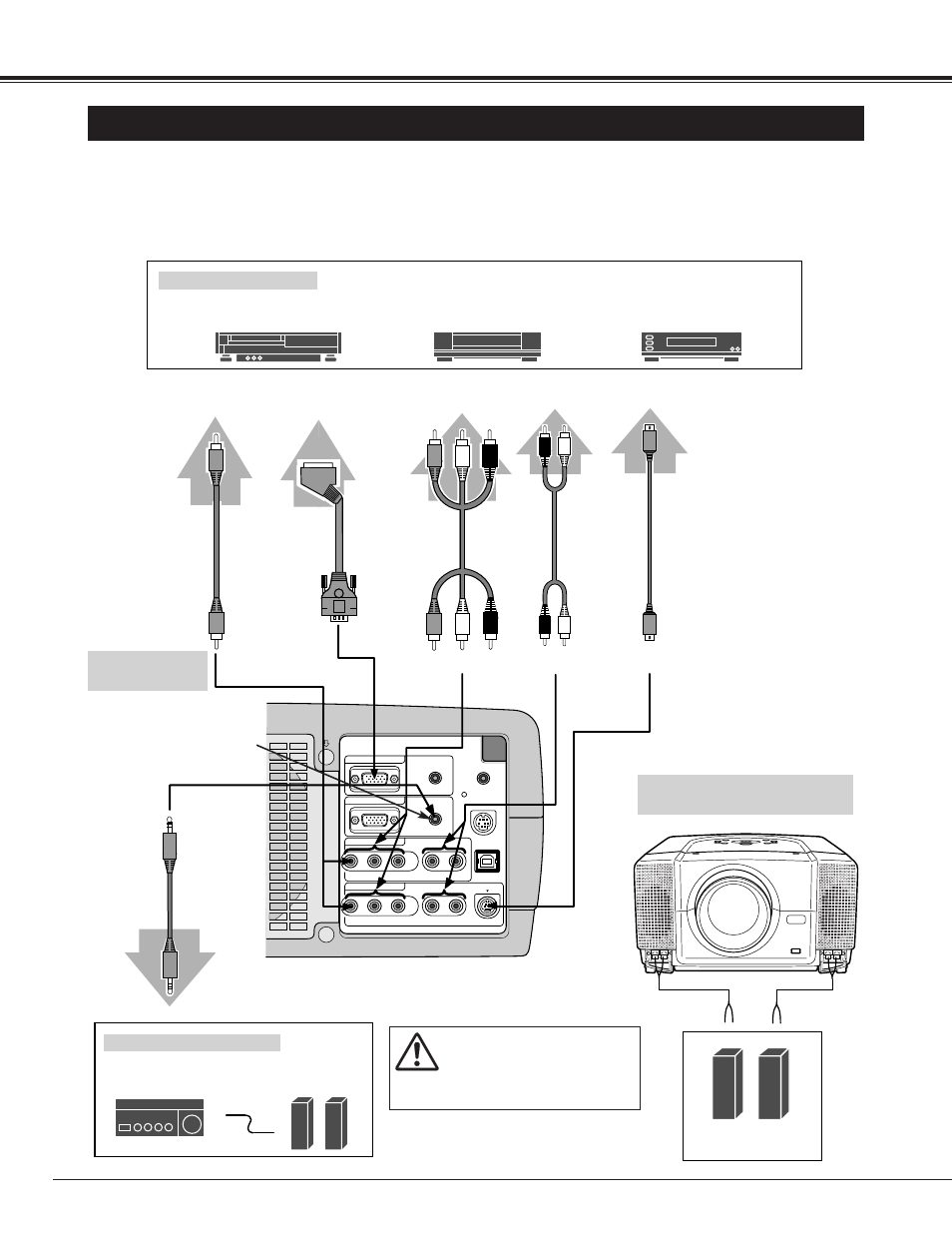

CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
S–VIDEO R – AUDIO 4 – L
VIDEO/Y – Cb/Pb – Cr/Pr
RESET
CONTROL PORT
USB
AUDIO 1
AUDIO 2
INPUT 1
INPUT 2 / OUT
INPUT 3
INPUT 4
R/C JACK
(MONO)
R – AUDIO 3 – L
VIDEO/Y – Cb/Pb – Cr/Pr (MONO)
Video Source (example)
Video Cassette Recorder
Video Disc Player
S-VIDEO
Cable
✽
S-VIDEO
Output
Cables used for connection ( ✽ = Cable is not supplied with this projector.)
Audio Cable
(RCA x 2)
✽
AUDIO IN S-VIDEO
VIDEO
Component video output equipment.
(such as DVD player or high-definition TV source.)
Composite
Video Output
Component Video
Output
(Y, Cb/Pb, Cr/Pr)
Y - Cb/Pb - Cr/Pr
Video Cables
(
RCA x 3 ) ✽
Audio Output
• Video Cable (RCA x 1 or RCA x 3) ✽
• S-VIDEO Cable ✽
• Audio Cable (RCA x 2) ✽
• Audio Cable {Mini Plug (stereo)} ✽
• Scart Cable ✽
Audio Speaker
(stereo)
Audio Amplifier
Audio Cable
(stereo) ✽
Audio Input
AUDIO OUT
External Audio Equipment
RGB Scart
21-pin Output
Scart Cable ✽
COMPUTER IN
ANALOG
Rear Terminals
of the Projector
NOTE :
When connecting cable, power
cords of both a projector and
external equipment should be
disconnected from AC outlet.
NOTE;
This terminal is switchable.
Set the terminal up as either
Computer audio input 1 or audio
monitor output (variable) before
using this terminal. (See page 24.)
External Speaker Terminals
(Front of the projector)
Audio Speakers
(stereo)
Video Cables
(
RCA x 1 ) ✽
