27

Note:

Issuing a SCSI reset message or SCSI bus device reset

message does not change the state of the indicator lights.

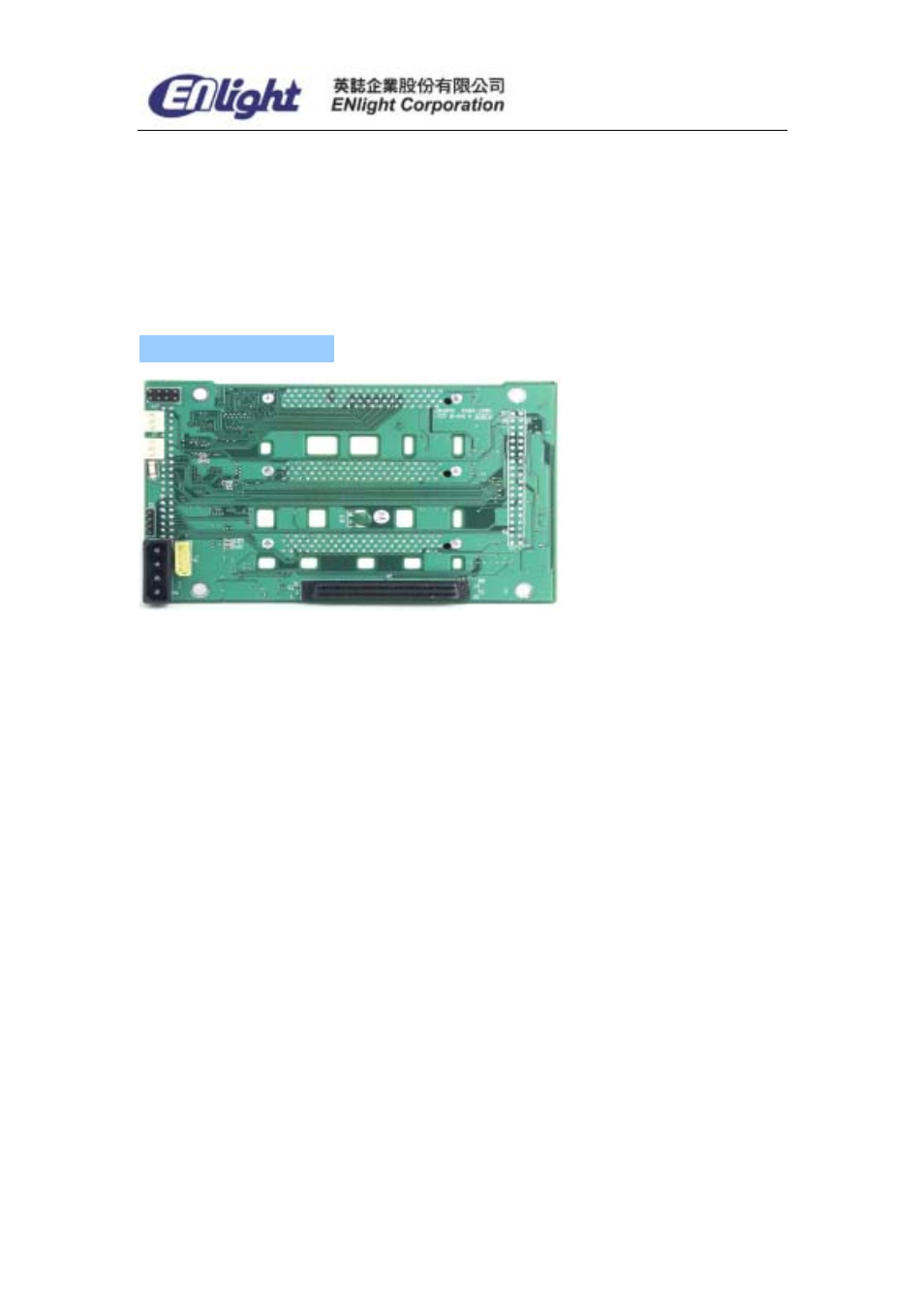

3HDD Back Plane

1. SCSI Connector:

Connect SCSI cable.

2.

Front panel Connector:

Connector for LED board with

cable.

3. Switch:

there is one button at the back plane.

This is function of noise elimination

4. ID Select（4 ID group）

| + + + +|

| + + + +|

1 2 3 4

1,2 —— be used to choose the I2C address

3,4 ——be used to choose the ID of HDD
