To video output terminal
When using a composite video cable
(INPUT4)
To audio output terminal
Note
Composite video cable
(commercially available)
RCA audio cable (com-
mercially available)
To AUDIO (INPUT
3, 4) terminal
To INPUT4
terminal

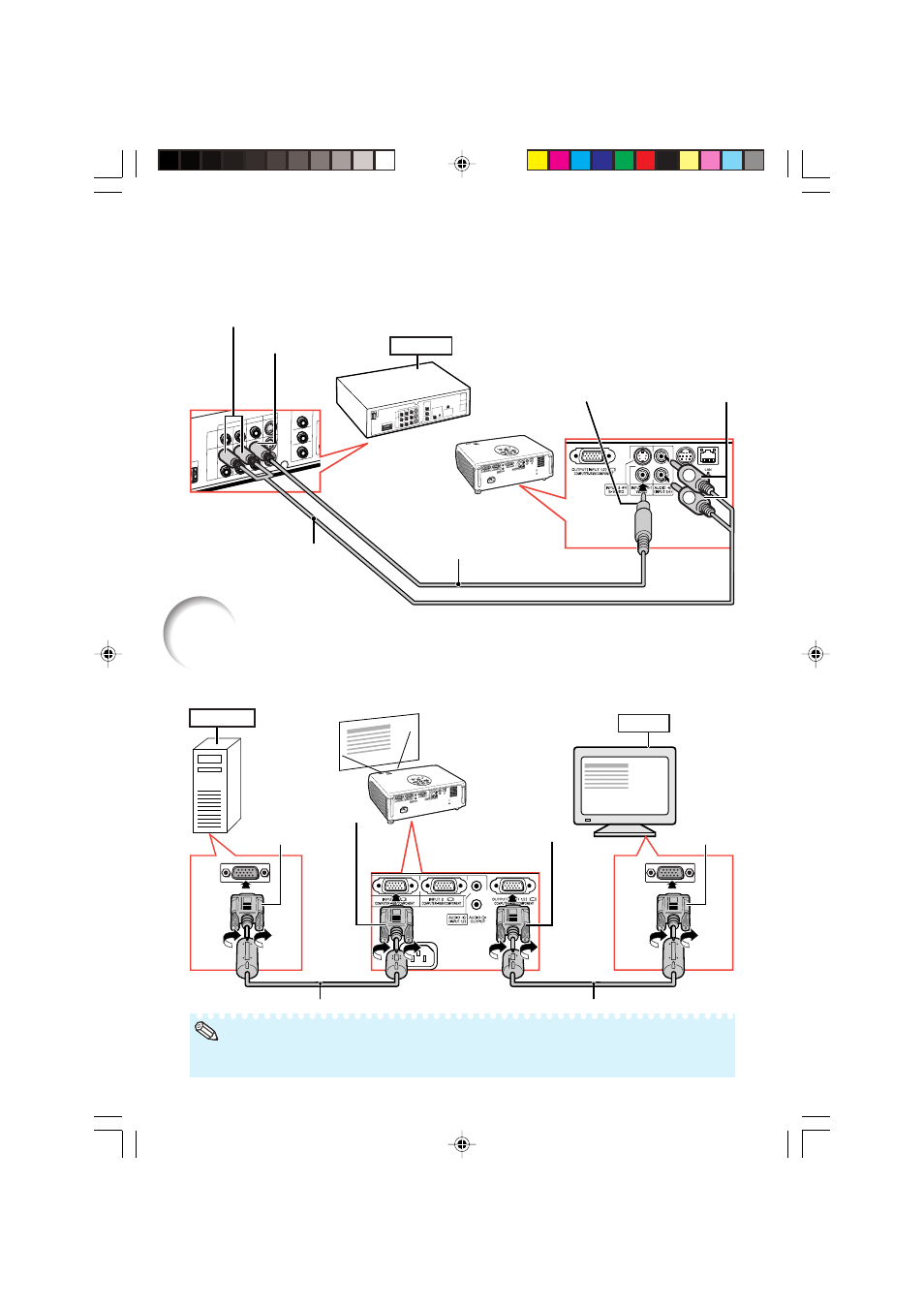

Connecting to a Monitor with RGB Input Terminal
You can display computer images on both the projector and a separate monitor using two sets of
RGB cables.
To RGB
input
terminal To RGB
output
terminal
To INPUT 1
terminal
To OUTPUT
(INPUT 1, 2)
terminal
RGB cable (commercially available) RGB cable
• RGB signals and Component signals can be output to the monitor.
• For this connection, another RGB cable (commercially available) is required.
DVD, etc.
Computer
Monitor
