Projection (PRJ) Mode

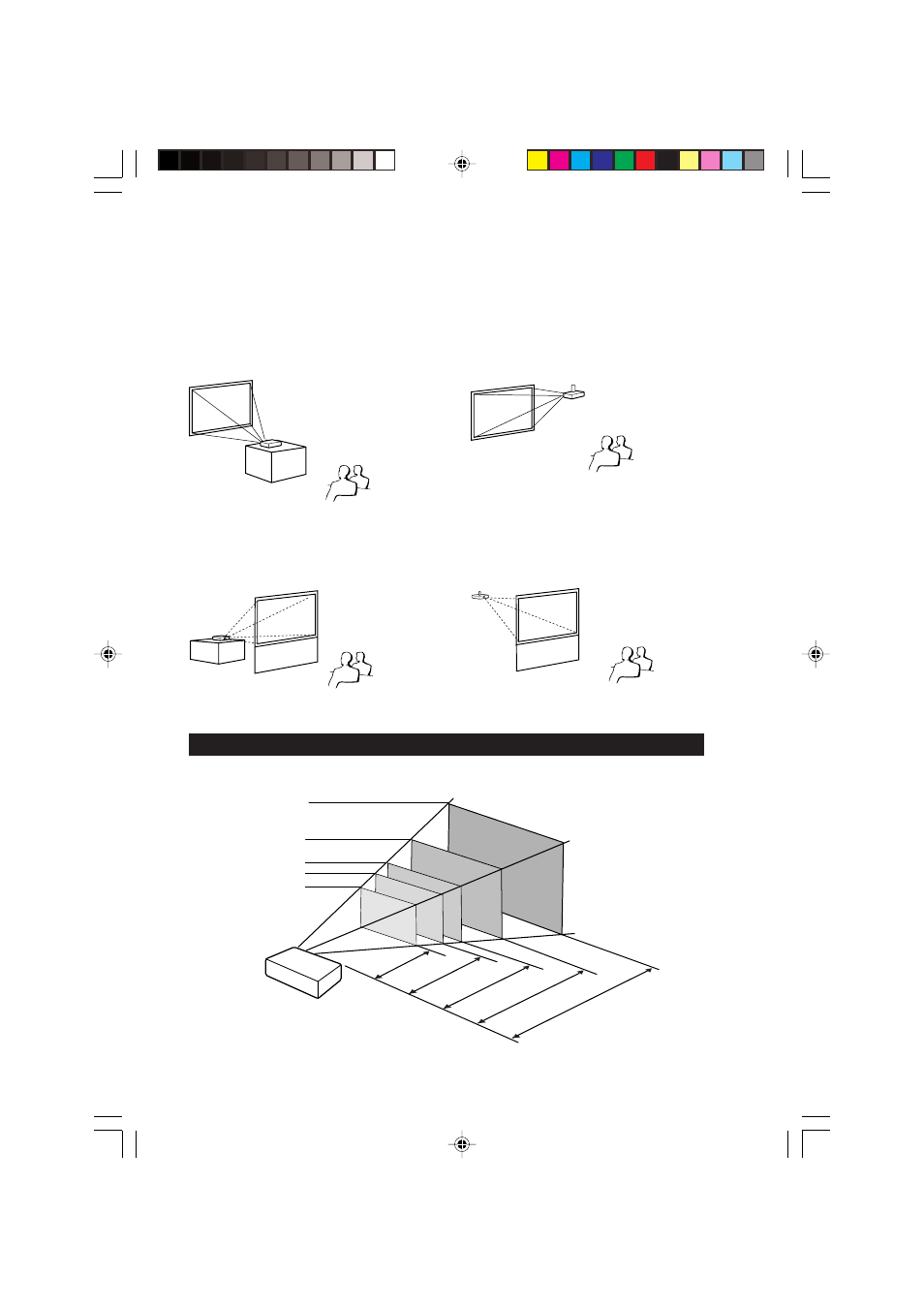

The projector can use any of the 4 projection modes shown in the diagram below. Select the mode
most appropriate for the projection setting in use. (You can set the PRJ mode in “SCR-ADJ” menu.
See page
45 .)
■ Table mounted, front projection ■ Ceiling mounted, front projection
Menu item ➞ “Front”
■ Table mounted, rear projection
(with a translucent screen)
Menu item ➞ “Ceiling + Front”
■ Ceiling mounted, rear projection
(with a translucent screen)
Menu item ➞ “Rear” Menu item ➞ “Ceiling + Rear”
Indication of the Projection Image Size and Projection Distance
Picture Size
Projection
Distance
Example: NORMAL Mode (4:3)
