2 MOUSE OPERATION

EMV1200/800 mobile DVRs support 2 sources to control the DVR. It can be controlled with a mouse and
the handheld IR remote control. (For IR remote control, please refer to Appendix C Remote Control)
This chapter will cover the basic operation using the mouse.

2.1 GENERAL USB MOUSE OPERATION

2.1.1 How to select a channel

1. In a view consisting of more than one channel, users can select a channel by clicking once on the

desired channel screen. The selected screen will be highlighted by a white frame.

2. Double clicking on a channel screen will display full screen for this channel.

2.1.2 OSD Root Menu

1. Right-click the mouse to obtain the DVR Root menu (see Figure 2-1 OSD Root Menu ).

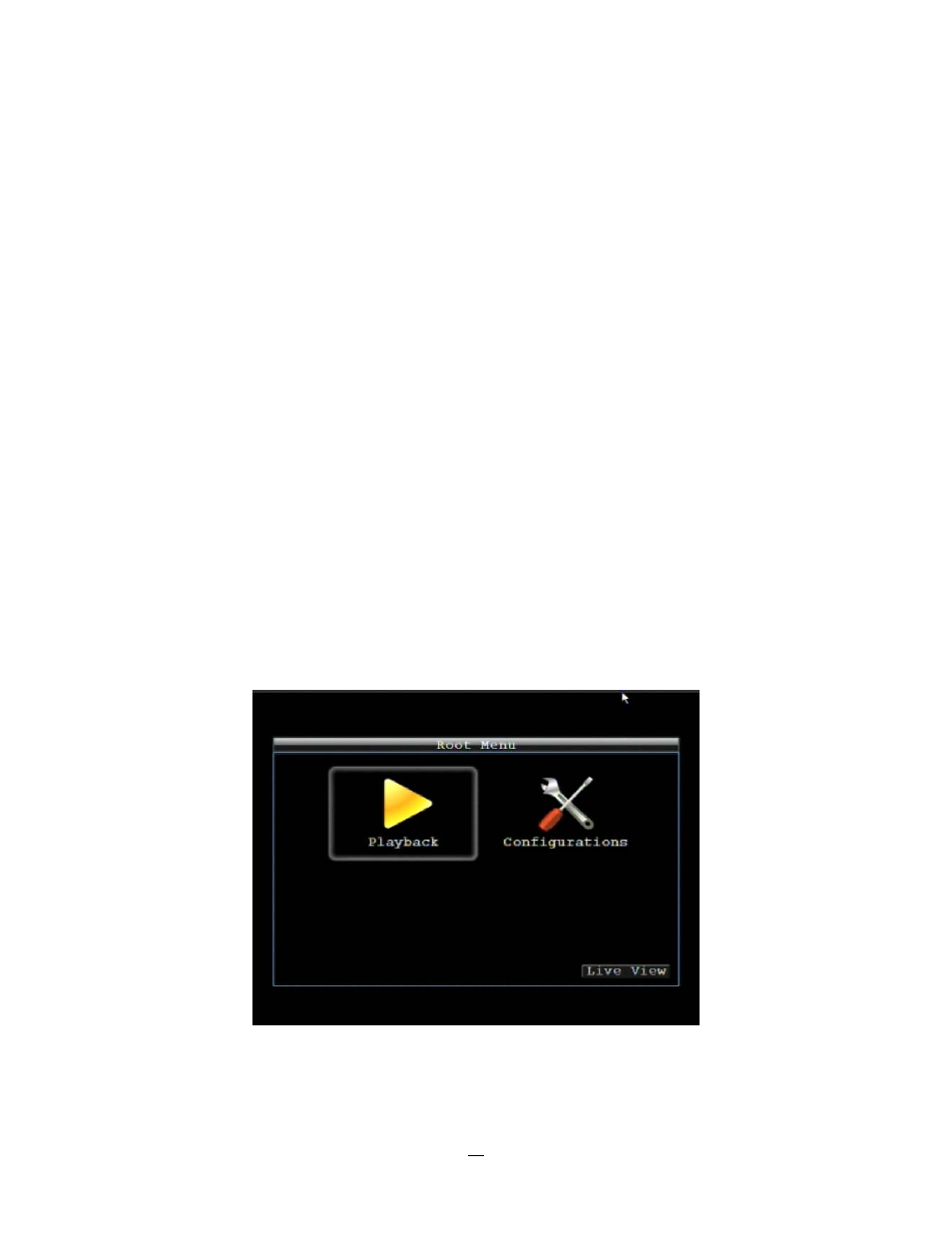

Figure 2-1 OSD Root Menu
