1.4 FRONT PANEL

Your primary interaction with your new DVR will be through the Front Panel buttons and their
corresponding buttons on the included IR Remote Control. Take a moment to learn where the keys are as
the remainder of the manual will refer to them often.

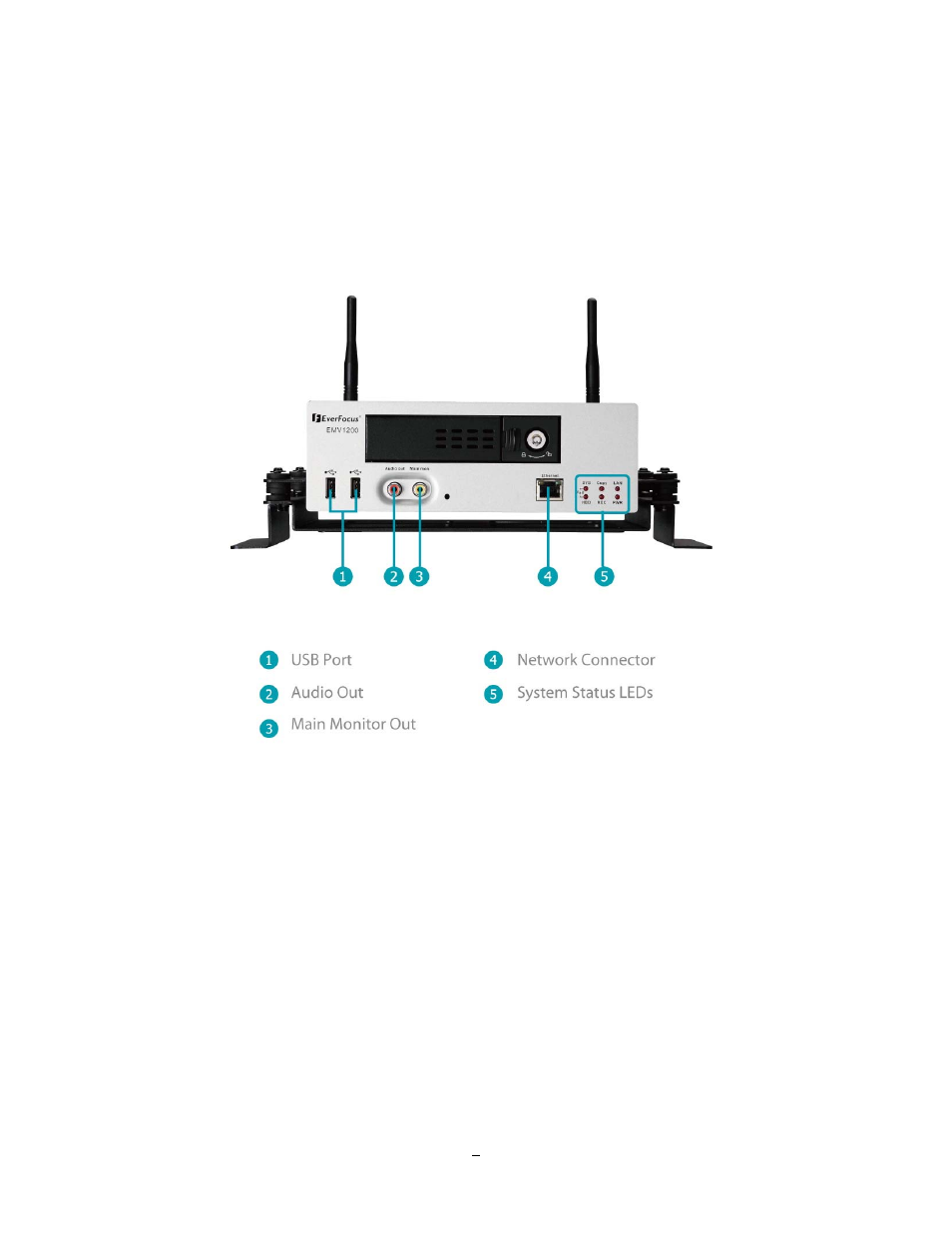

Figure 1-1 Front Panel

1) USB

2.0: For connecting USB-Flash-Drive

to copy/archive video or for firmware upgrades.

2) Audio Out: Connect to the line level input of an audio amplifier (same output as the audio out at

rear panel, no conflict between these 2 outputs, they both can be connected

simultaneously).

3) Main Monitor Out: Main monitor for live and playback display and on-screen display. (same output

as the main monitor out at rear panel, no conflict between these 2 outputs, they both

can be connected simultaneously).
