Replacement of gas grill burner
injector

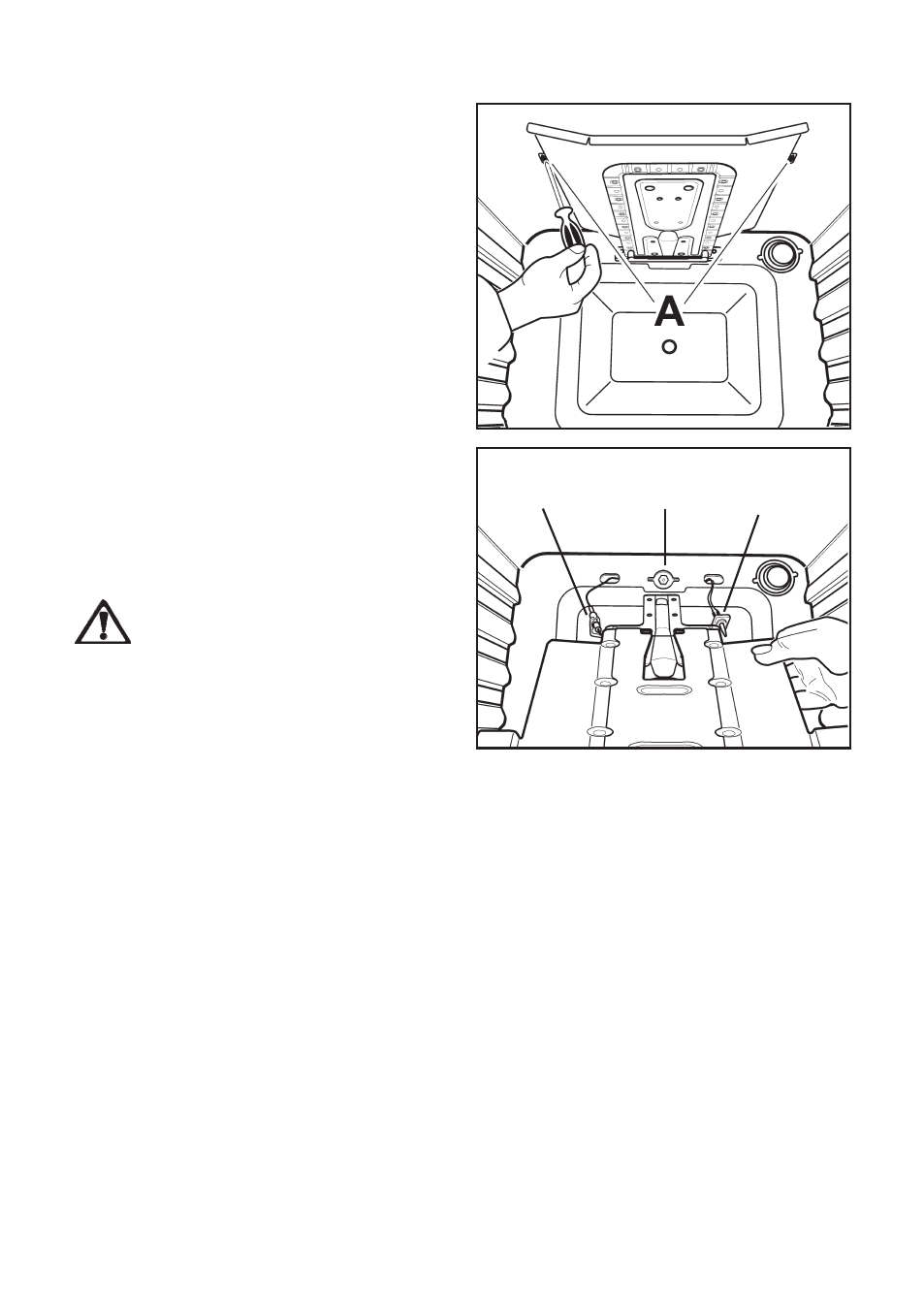

To replace the gas grill burner injector,
follow this procedure:
1. Undo the two fixing screws (“A”)
which keep the oven gas burner in
place
2. Gently slide the gas grill burner off its
slot and slowly move it downwards,
taking care not to cause stress to the
spark plug connection wire (“B”) and
the thermocouple (“D”) conductor;
3. With a 7 mm socket spanner unscrew
and remove the gas grill burner injector
(“C”), and replace it with the required
one (see Injector Table);
4. Reassemble the burner following the
same procedure backwards.
The gas grill burner does not
require any primary air
regulation.
Replacement of Gas Type Label
Once both the injectors for the gas oven
burner and the gas grill burner have been
replaced, take the Gas Type Label which
is relevant to the new gas type and place
it over the old one (it is located near the
gas connection ramp). The replacement
label is supplied with the injector kit.
B C
D
