24 electrolux
Gas Connection
The use of rubber flexible hoses
is not permitted.
Connecting the to the gas supply
The use of rubber flexible hoses is not
permitted.

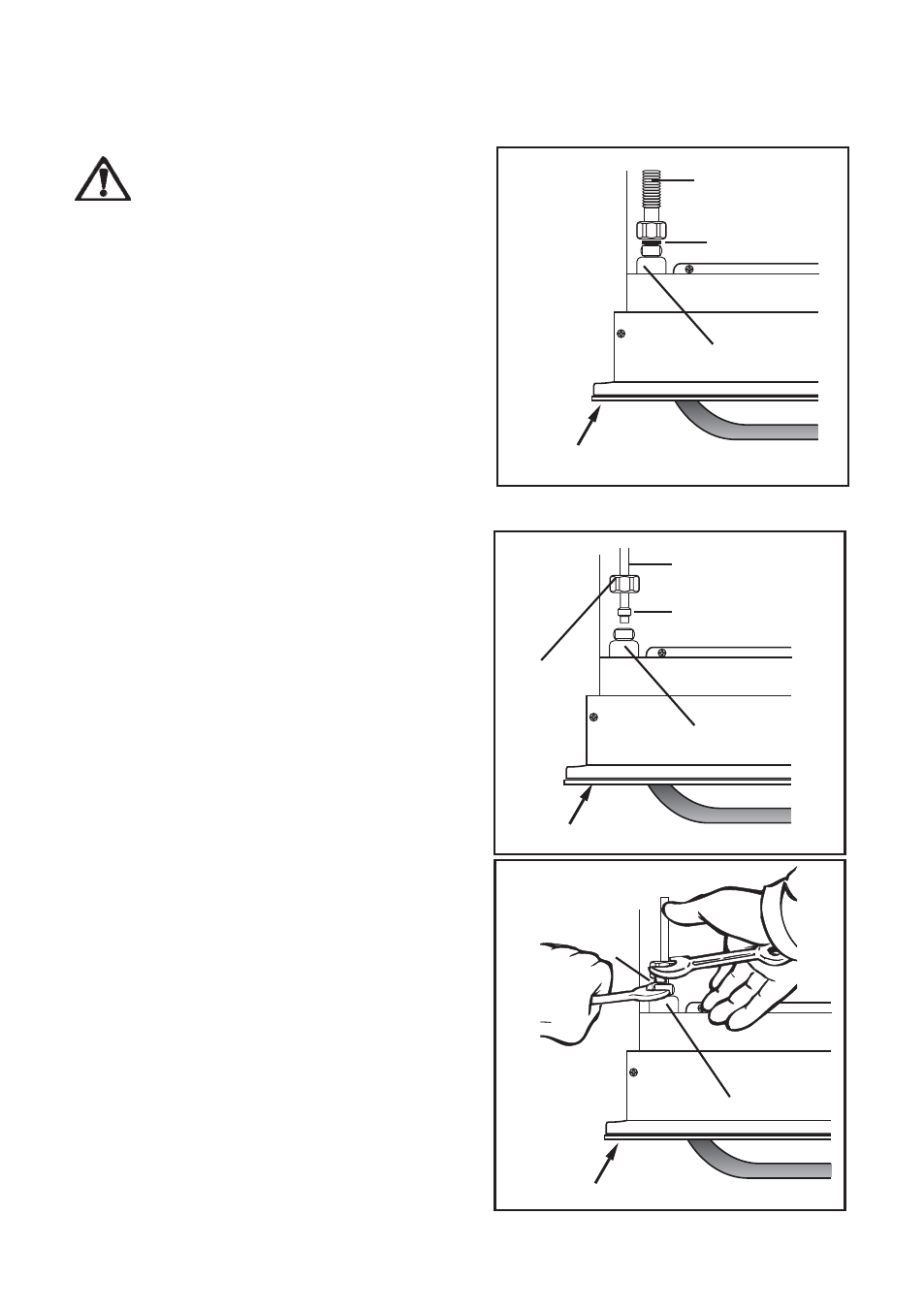

The gas supply connection ramp is
located in the upper side of the oven,
right behind the control panel.
To carry out the gas connection:
1. Partially insert the oven in the recess
(about 30 cm.) and operate on the
connection ramp from above. The gas
connection can be carried out
according to one of the following
procedures:
A) connection with flexible
metallic pipes (*) (with maximum
length up to 2 metres only) —
screw the feed pipe to the 1/2“
connection ramp, inserting the
supplied gasket between the pipe
and the ramp;
B) connection with rigid metallic
pipe (soft copper - minimum
diameter: 8 mm) — insert the
copper pipe into the connection
ramp after fitting the proper nut
and olive onto the copper pipe
using a male / female adapter (not
supplied).
2. Tighten the nuts by means of a 22
mm spanner. Care must be taken to
keep the ramp in position and not to
cause any stress to the gas supply
circuit.
3. Completely insert the oven in the
recess and secure it as indicated in
the relevant paragraph.
4. Check the perfect sealing of the
connection using leak detection fluid.
flexible
metallic pipe(*)
gasket
olive
nut
nut
gas supply ramp
gas supply ramp
control panel
View
from
above
gas supply ramp
control panel
View
from
above
View
from
above
( * ) For mainland Europe only
rigid metallic pipe
male/female adapter
control panel
A)
B)
