Electro-Voice Dual 18" Direct-Radiating Subwoofer TX2181 - Manual (Page 2)

12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems 05/2008
Part Number LIT000180 Rev 3
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other Internatonal locations. For customer orders, Contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Electro-Voice ®

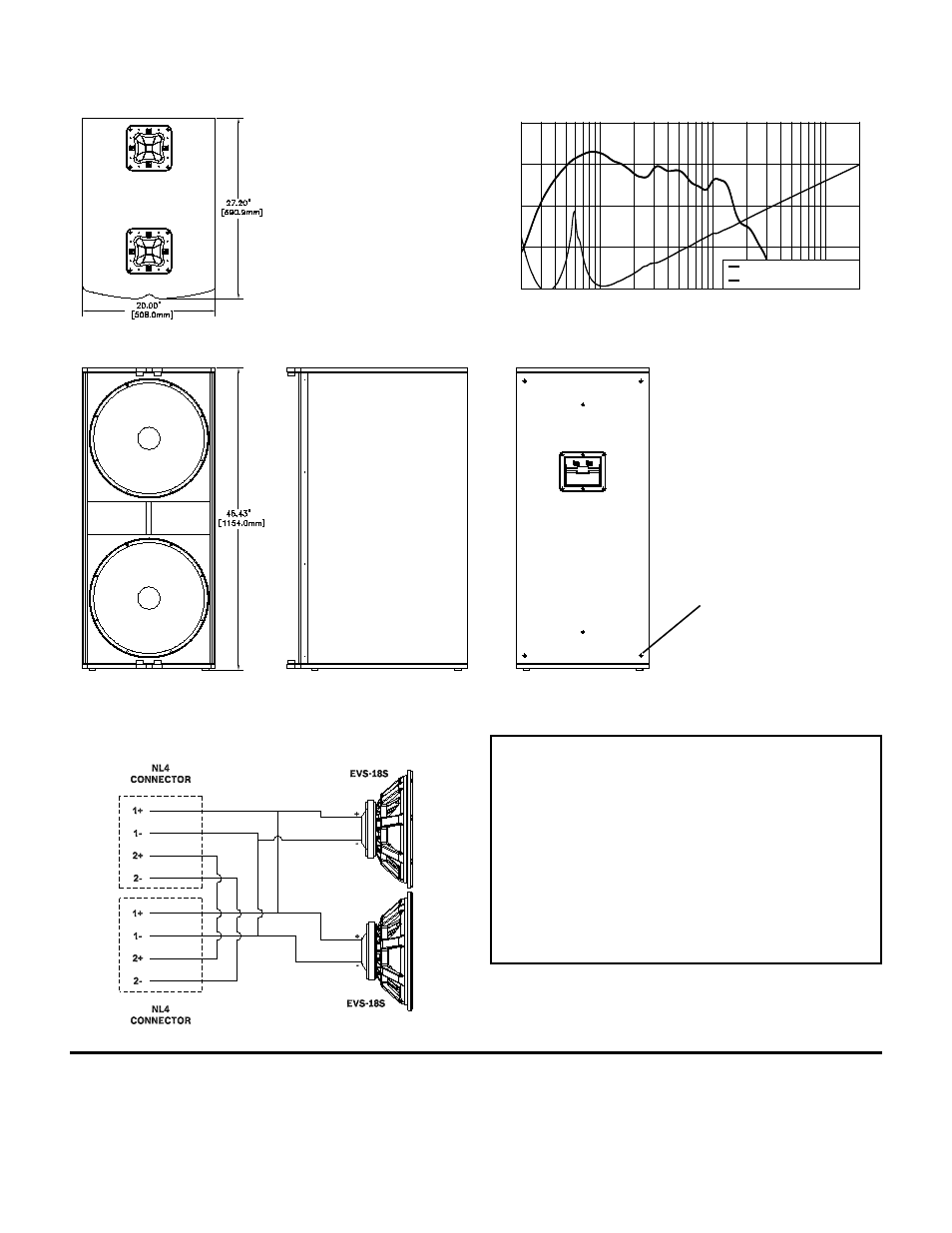

Dimension Drawings:
Block Diagram:
Frequency Response & Impedance:
Top View
Front View Right View Rear View
20000 10000 1000 100 50 20
316
100
10
3.16 70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
Impedance (Ohms)
Frequency Response, Half Space
Impedance
(6) Mounting Points
for Optional TX-W1
Wheel Kit
TX2181 Part Numbers
PRD000143-001 TX2181, Dual 18” Sub, Black Finish •
Performance Match
PRD000140-001 TX2152, Dual 15” Two Way, 60° x 40° •
Full-Range, Black Finish
D170401 CP4000S, 120V Power Amplifier, 2 x 1400W •
D170312 CP3000S, 120V Power Amplifier, 2 x 1100W •
D170258 CP2200, 120V Power Amplifier, 2 x 800W •
PRD000043-001 DC-One, 120V Digital Loudspeaker Controller •
Accessories
ACC000043-000 TX-W1, Wheel Kit for TX1181 and TX2181, •
Black
